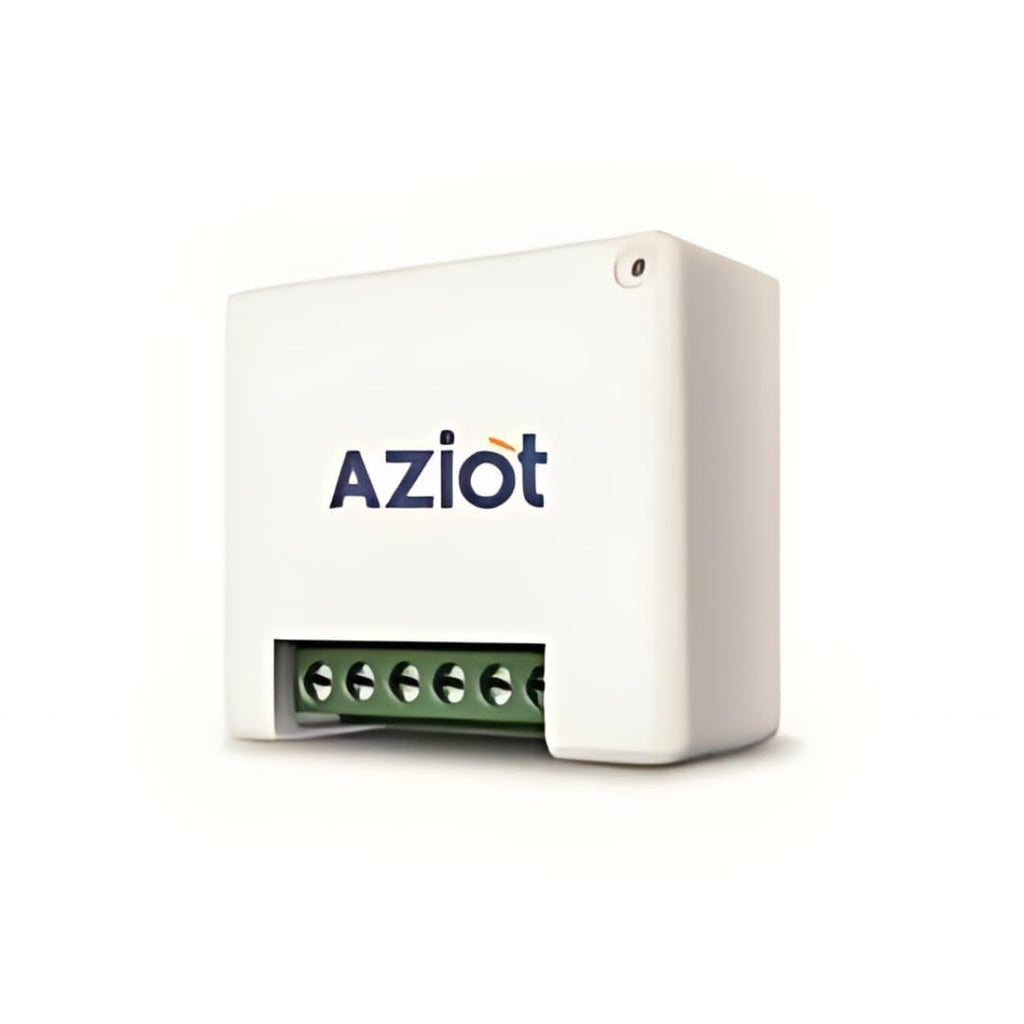

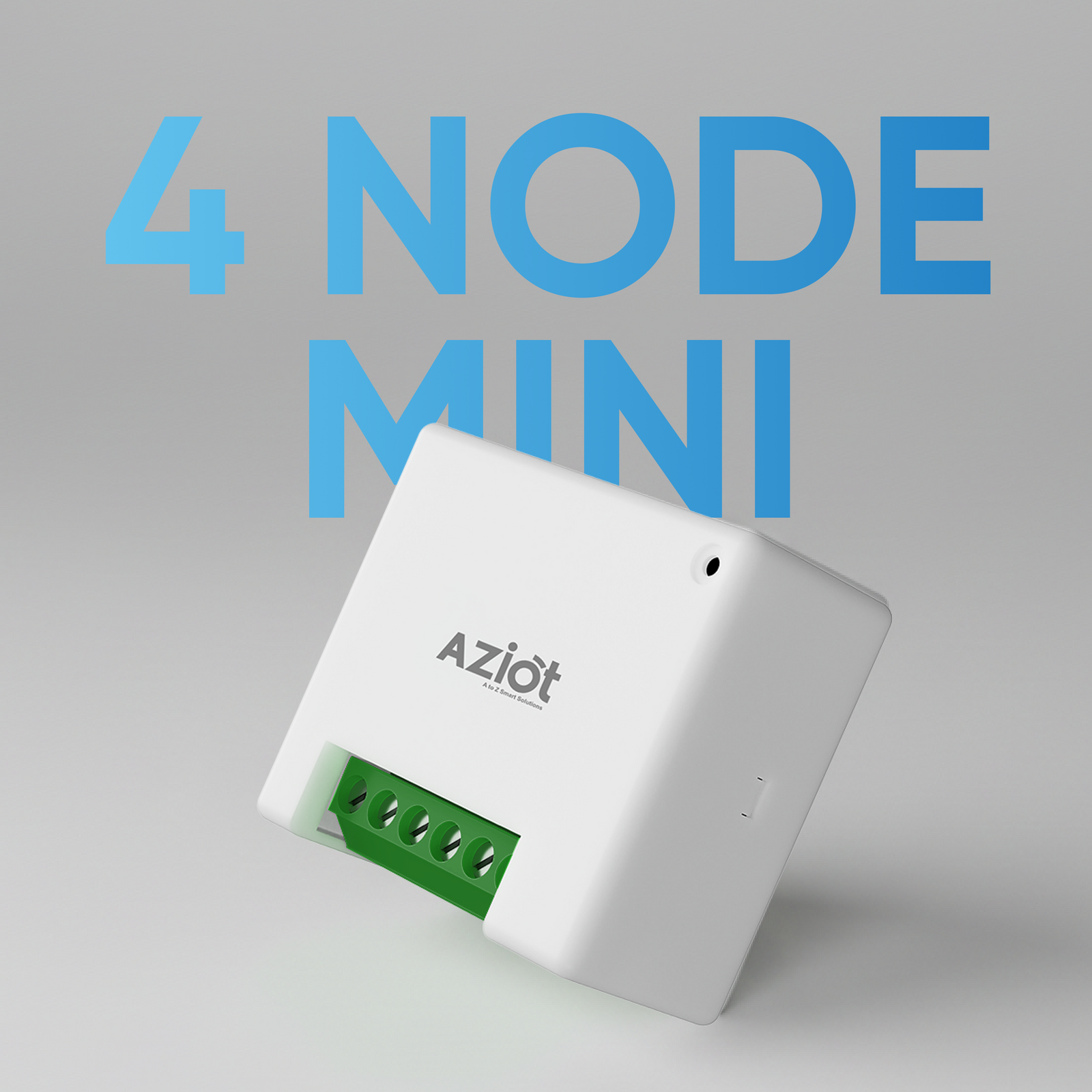

AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled

Smart Mini Retrofit Switch

Rs. 1,199.00 Rs. 4,999.00 76% Off
MRP inclusive of all taxes • EMI available
Overview

Introducing the AZIOT 4 Node Smart Switch Mini, a compact and versatile home automation solution proudly made in India. This smart switch utilizes both WiFi and Bluetooth communication for seamless connectivity, allowing you to control your electrical devices remotely with ease. Featuring a timer function, you can schedule operations to suit your daily routine, enhancing convenience and energy efficiency. Compatible with Google Home and Amazon Alexa, voice control adds another layer of convenience to your smart home setup. The 2-module size ensures compatibility with standard electrical fittings, making installation straightforward. Upgrade your home with the AZIOT 4 Node Smart Switch Mini and experience modern convenience at your fingertips.

Features

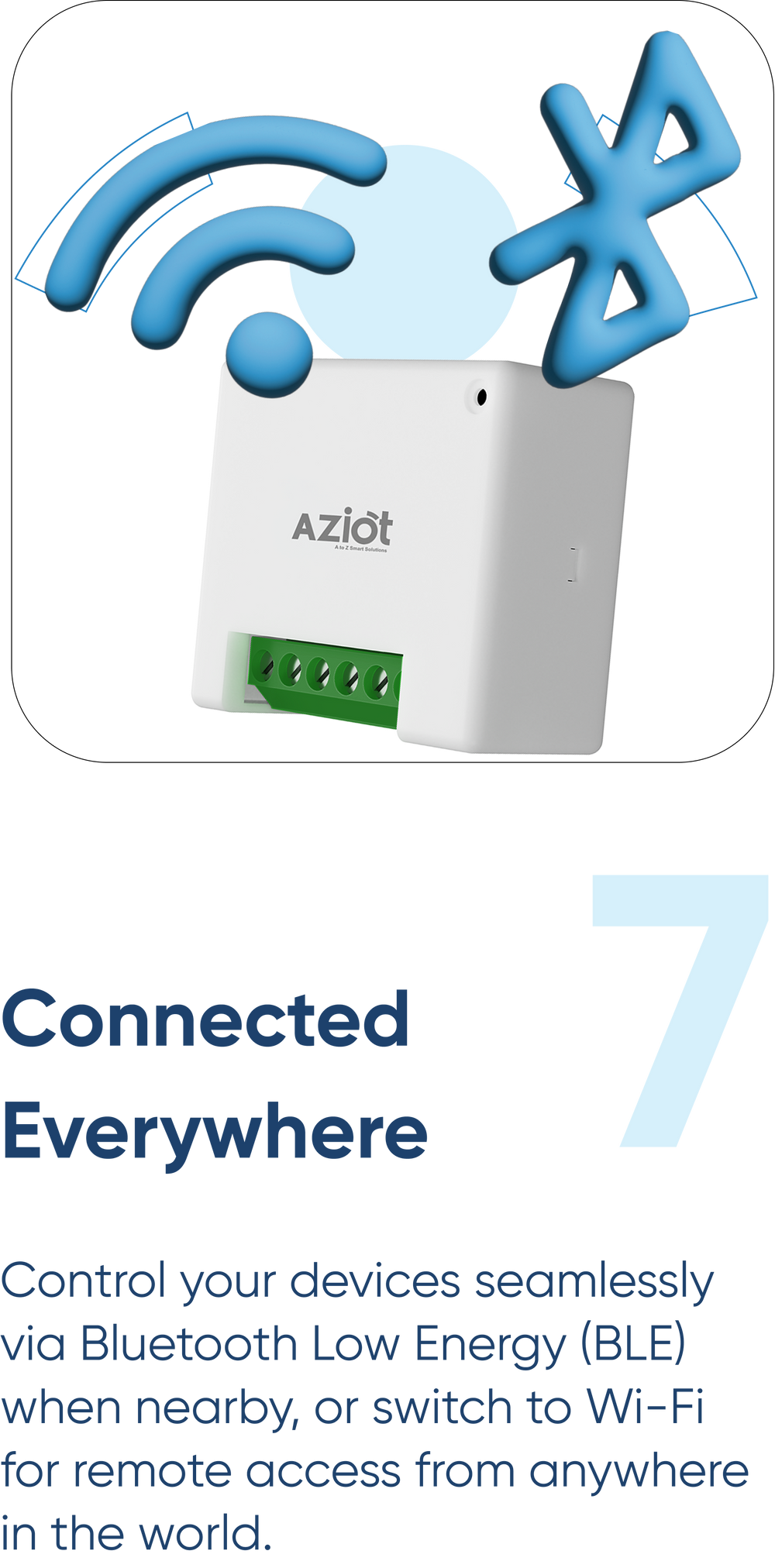

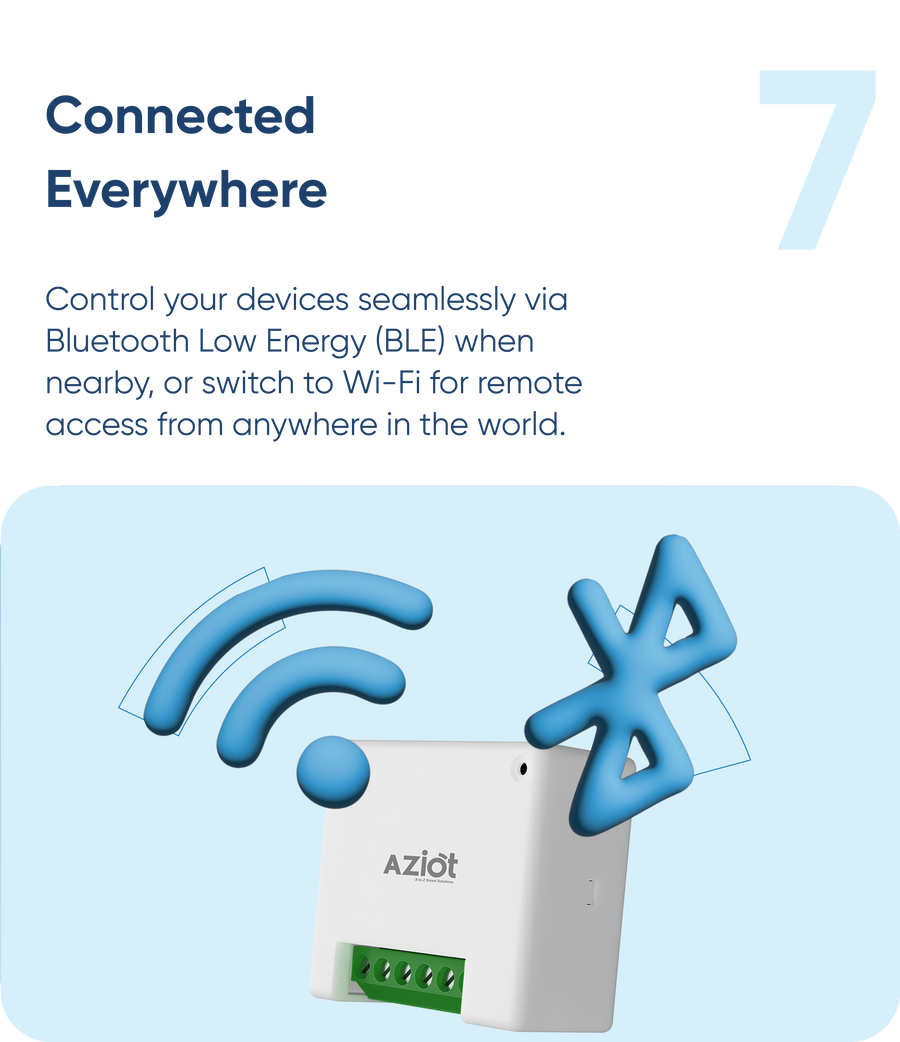

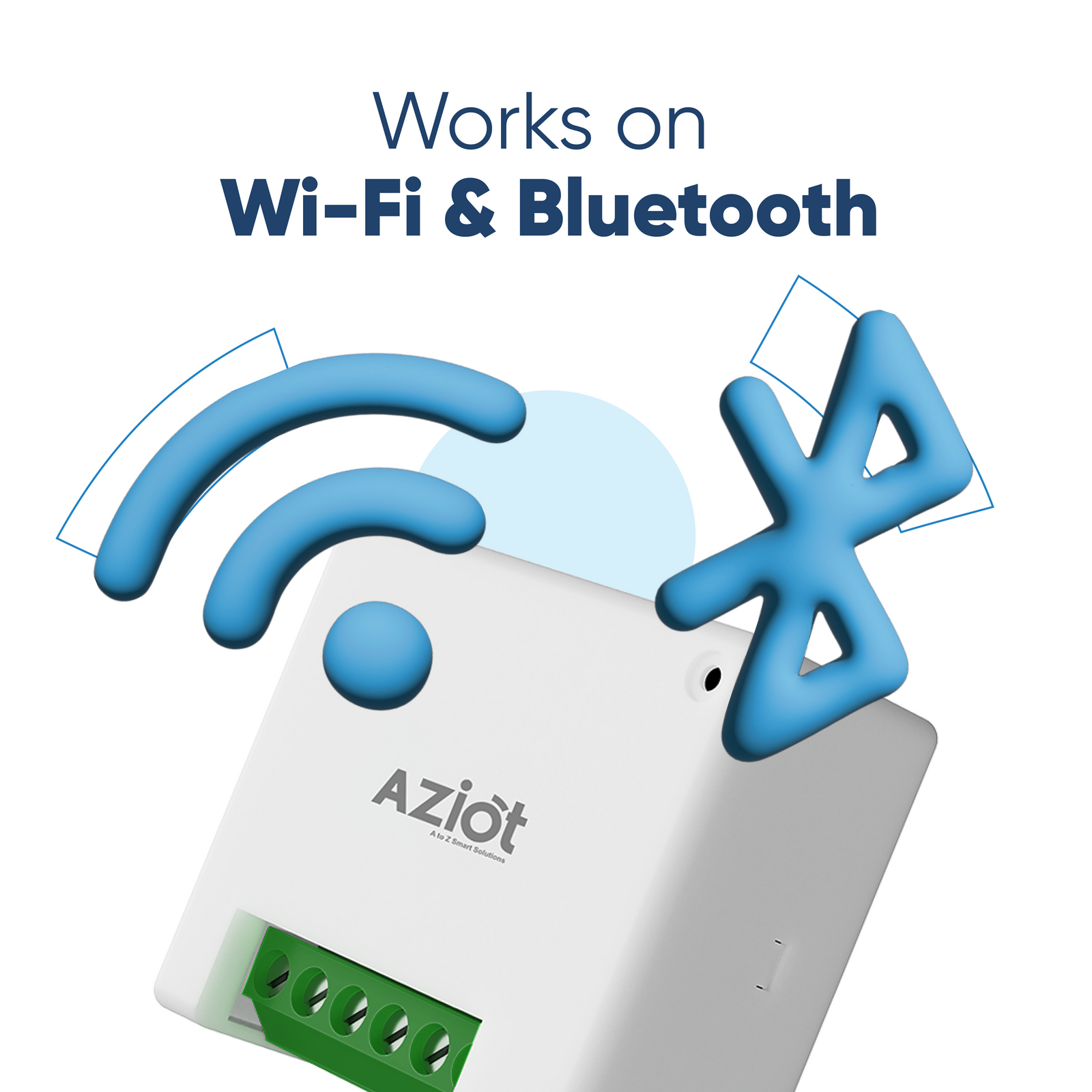

  • Always Connected: Dual Wi-Fi + Bluetooth connectivity ensures your device stays online at all times.

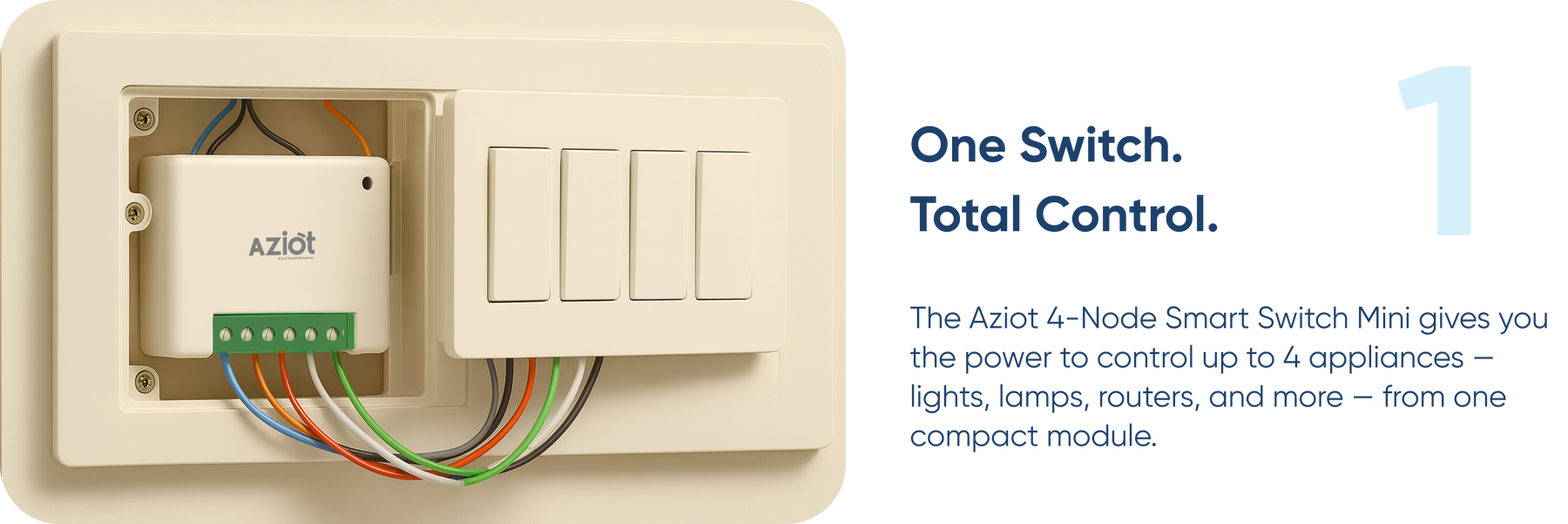

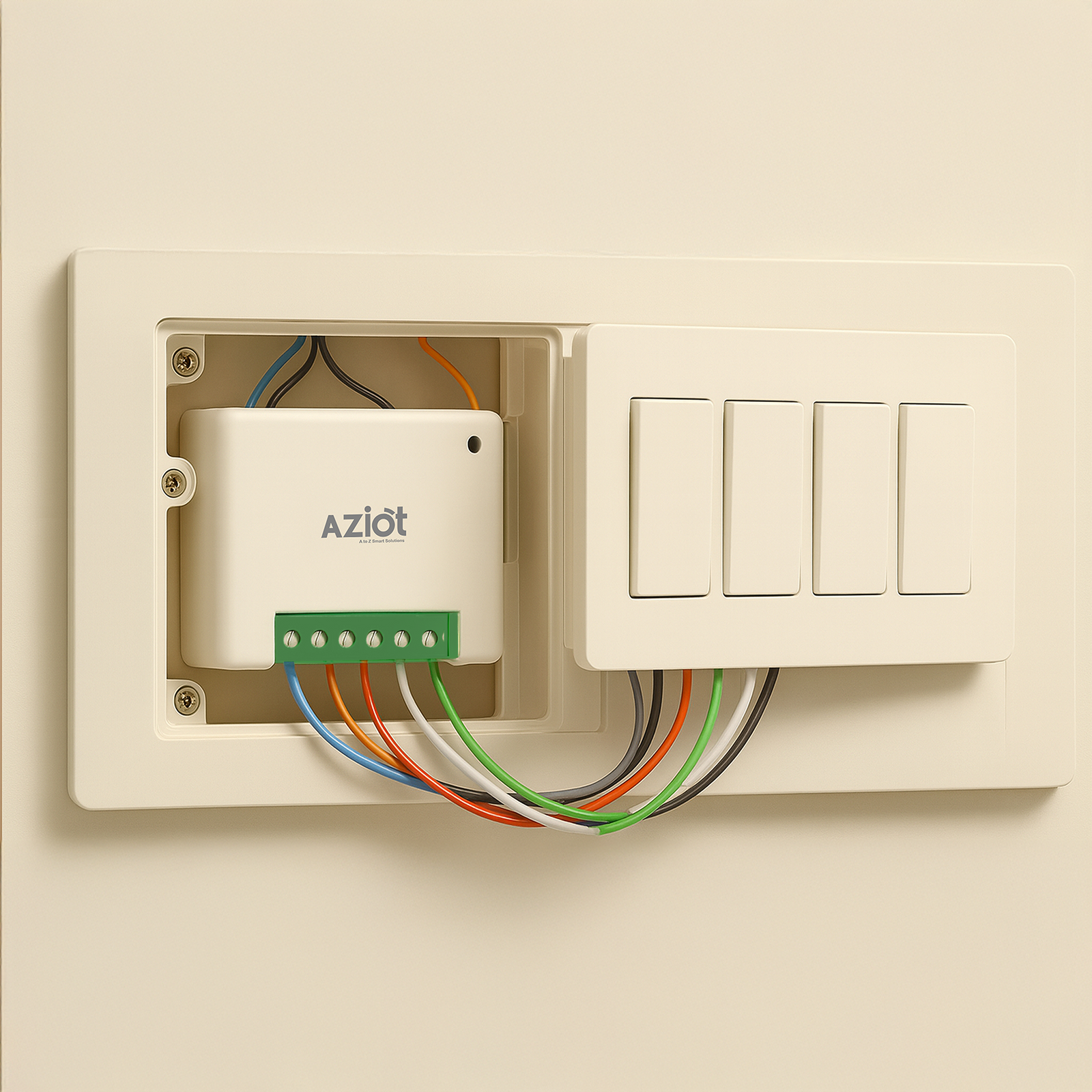

  • Hassle-Free Installation: Fits easily behind your existing switch plate and into your gang box—no rewiring required.
  • Smart Scheduling: Set timers and schedules to turn your devices on or off automatically.
  • Compact & Sturdy Design: Designed for Indian homes, it fits perfectly into a 2-module gang box and is built to last.

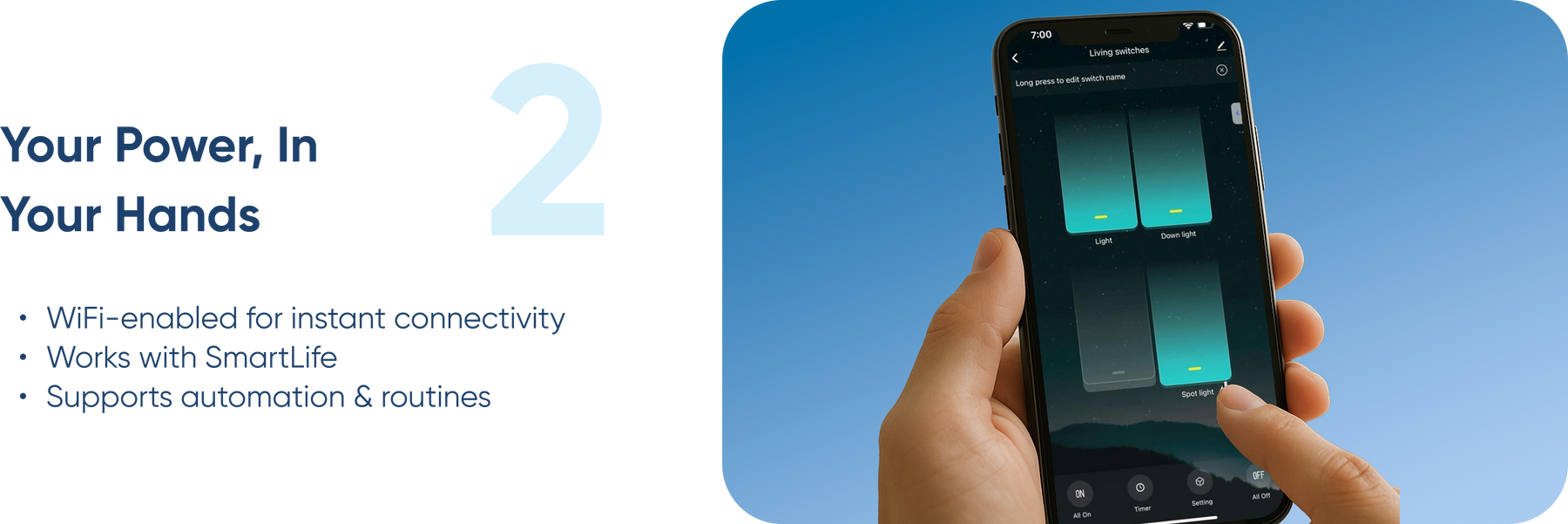

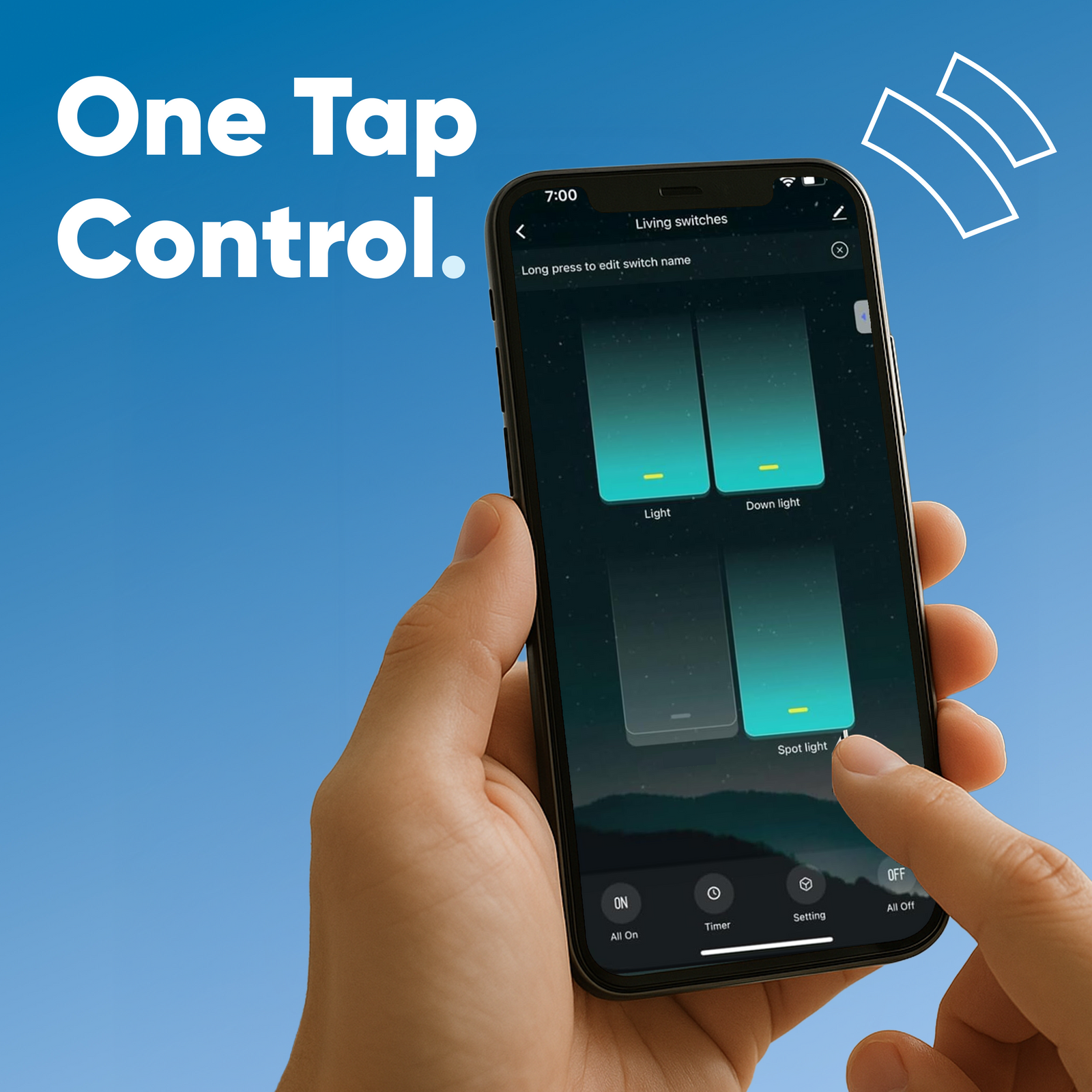

  • Easy Control: Use your smartphone or voice assistants like Amazon Alexa, Google Assistant, or Siri Shortcuts to manage your lights.
  • Made in India: A locally crafted product that delivers high quality and reliability.
  • 1-Year Warranty: Enjoy peace of mind with a full year of guaranteed support.
Specifications

AC Specifications

Operating Input Power Range
150 VAC-270 VAC+-5%, 47-63 Hz

Maximum Load per Node

Resistive Loads: 300W / per Node
(Conventional Incandescent and Halogen
Light sources)

Resistive-Capacitive Loads: 100W /Per Node
(Flurorescent Tube Lamp, CFL and LED )

LED loads maximum combination is 5 numbers
per Node , irrespective of wattage.

Fixed Inductive Loads: 300 VA

General Specifications
Power Consumption when loads off < 0.2 W

Power Consumption when loads on <1.0 W

Temperature
Operation 0 C to +50 C.
Storage -20 C to +70 C.

Relative Humidity
Operating 5%RH to 95%RH Non-Condensing.
Storage 5%RH to 95%RHNon-Condensing

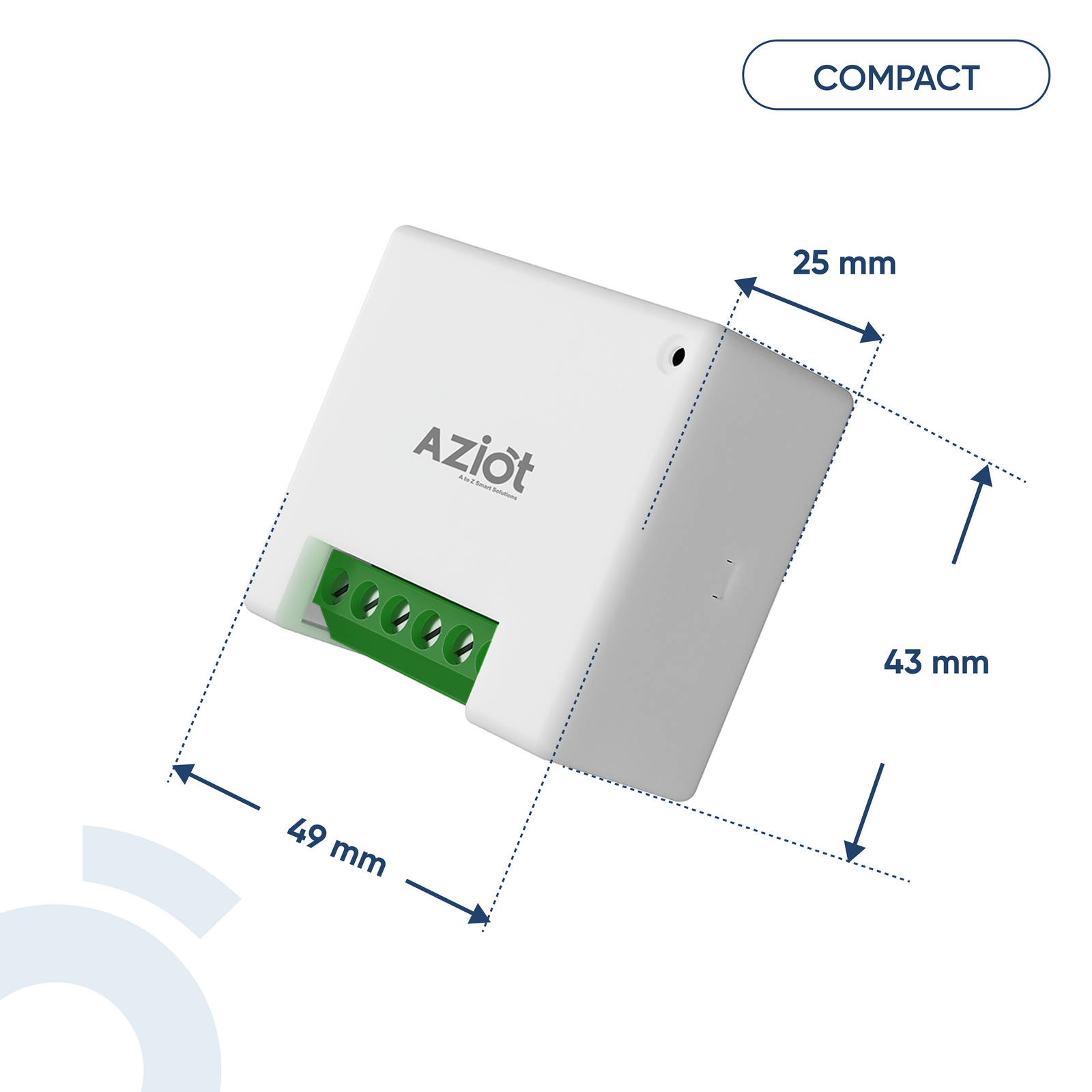

Dimensions -49 mm x 43 mm x 23 mm

RF Frequency - 2.4 GHz

What We Solve
Download User Manual
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
AZIOT 4 Node Smart Switch Mini (2 Module Size)- Wifi/Bluetooth Enabled
A+ Square 1A+ Square 2A+ Square 3

Customer Reviews

Based on 35 reviews
97%
(34)
3%
(1)
0%
(0)
0%
(0)
0%
(0)
100.0
A
Anonymous
Good product but the thing will come long time

Good product but the thing will come long time work

I
Iyer P R Shivaram
Product is very sleek and operating very well

Product is very sleek and operating very well. I am fully satisfied

S
Shivaram Iyer
Good product

Good Product and easy to install it’s very compact and easy to install

T
Tina
Reliable Smart product with Relax feeling

Excellent products very useful. Life because relax .

User picture
s
sharon
good

good

123

Real customer stories

4.82 ★ (1439)
Verified

FAQs

How to install the device?

The device easily fits behind your existing switch plate within the gang box. Installation requires basic electrical knowledge and can be done by you or a local electrician. For step-by-step guidance, watch our installation videos on YouTube.
Aziot@youtube: https://www.youtube.com/channel/UCxo8tpr7D2hA_XMOJ6kwBdw

  • 1 Node: Supports up to 16 amps
  • 2 Node: Supports up to 6 amps
  • 4 Node: Supports up to 6 amps

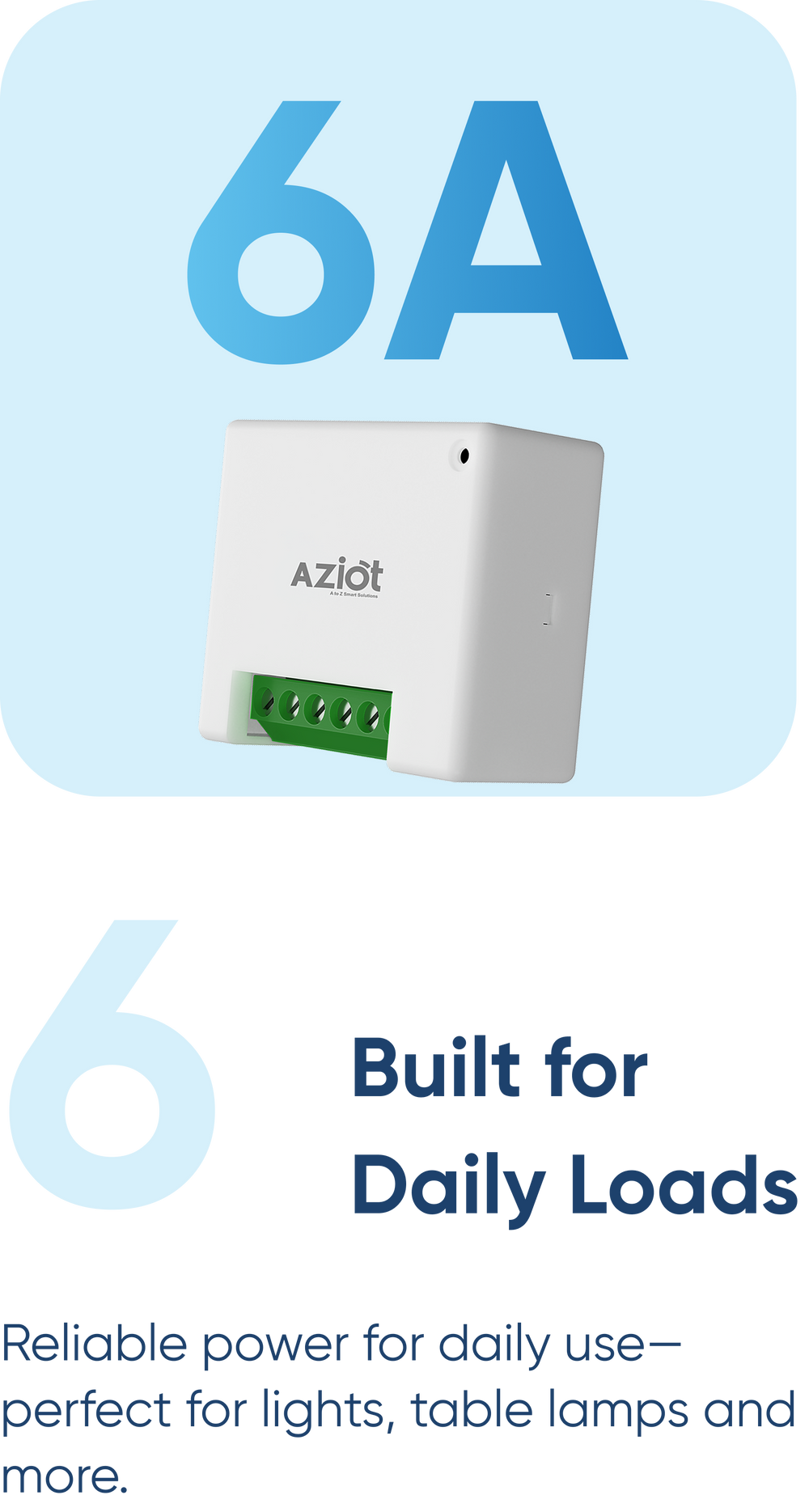

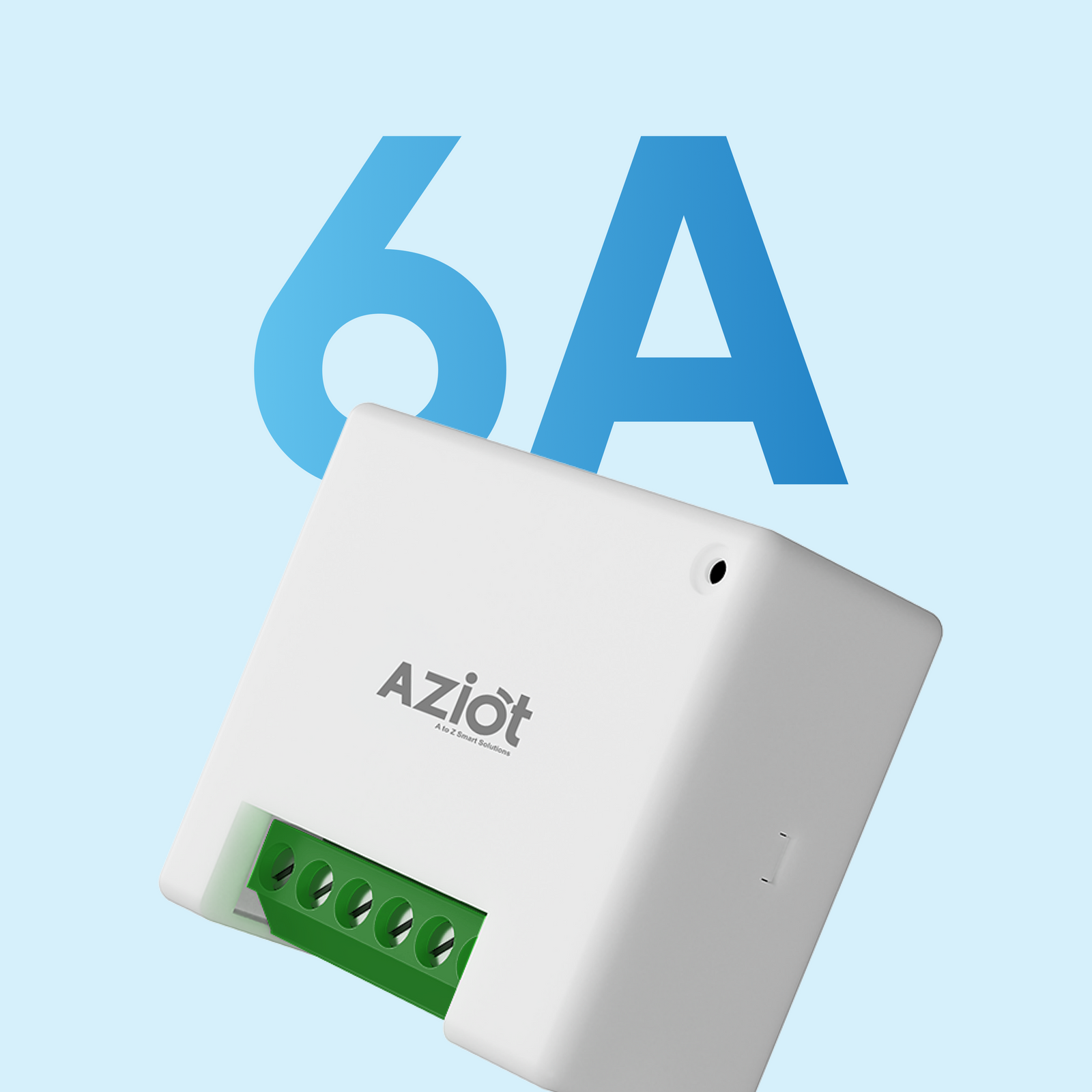

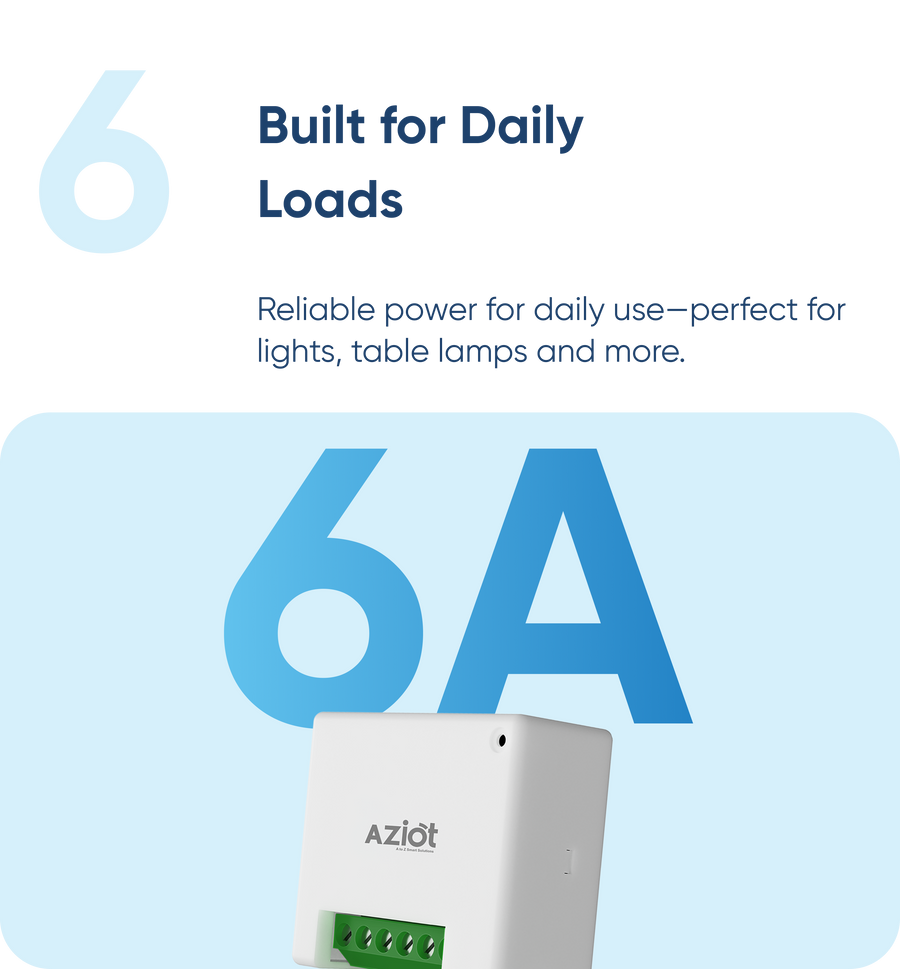

  • 4 Node Mini: Supports up to 7 amps
  • 3+1 Node: Supports up to 6 amps
  • Circuit Breaker with Metering: Supports up to 16 amps
  • Circuit Breaker without Metering: Supports up to 16 amps

1 Node (16 amps): Suitable for heavy-duty appliances such as ACs, coolers, and similar high-power devices.

Devices with 10 amps load capacity: Ideal for lighting automation and moderate-power appliances.

3+1 Node: Not compatible with BLDC fans.

Circuit Breakers (with and without metering): Designed for heavy-duty appliances requiring up to 16 amps.

If the device appears offline:

  • It could be due to a weak WiFi signal.
  • Restart your router to re-establish the connection.
  • Ensure the device is within range of your WiFi network.

Yes, you can control the device remotely via the smartphone app, no matter where you are in the world, as long as you have an active internet connection.

The 2.4GHz band is a standard WiFi frequency used for most smart devices. Ensure your router supports this band for seamless compatibility with the Touch Modular Switch.

The device is fully compatible with Alexa, Siri, and Google Home for voice control. Follow these steps for configuration:

  1. Open the respective app (Alexa, Google Home or Apple HomeKit).
  2. Add the device using the app’s instructions.
  3. Link your account and complete the setup.
    For more details, refer to our YouTube tutorial.

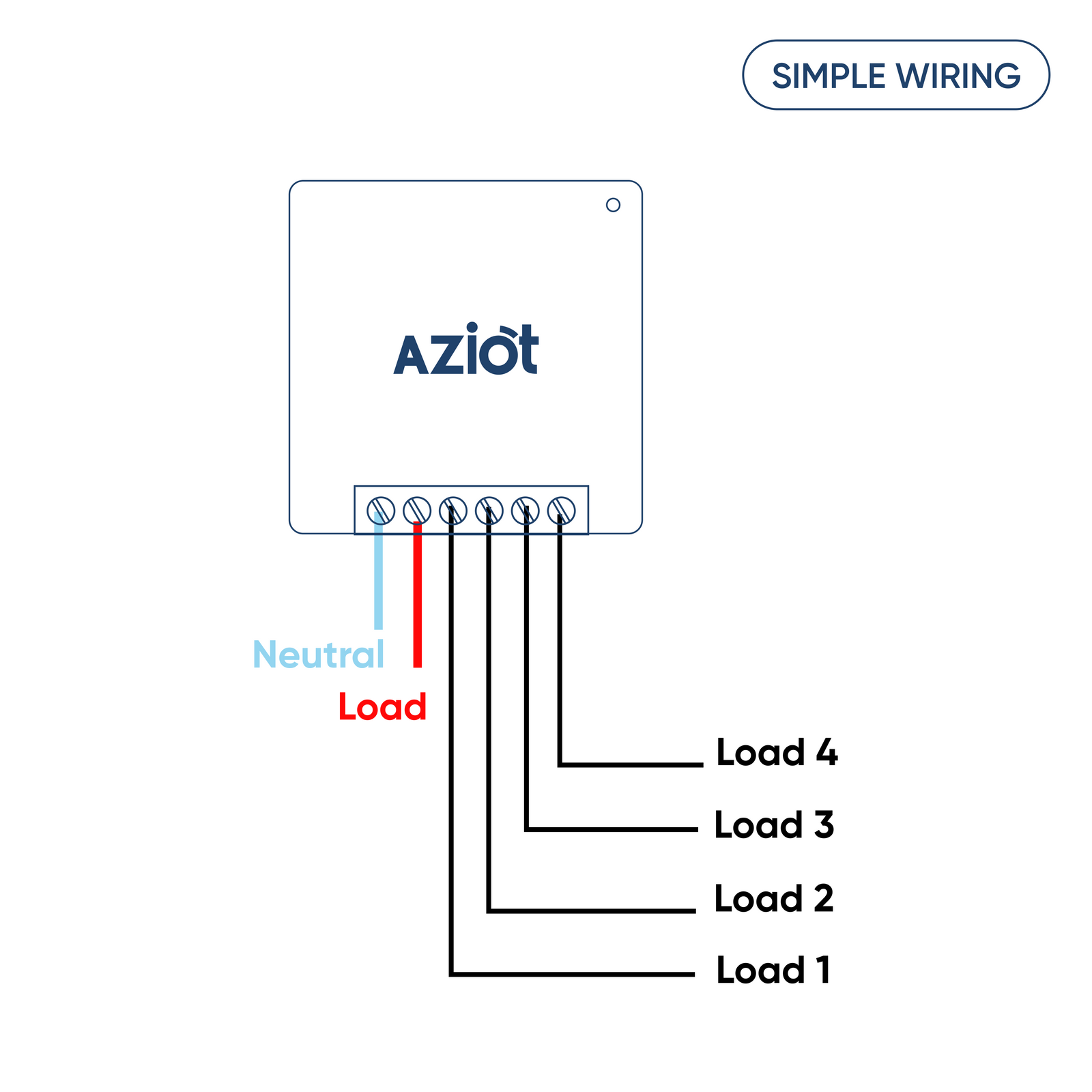

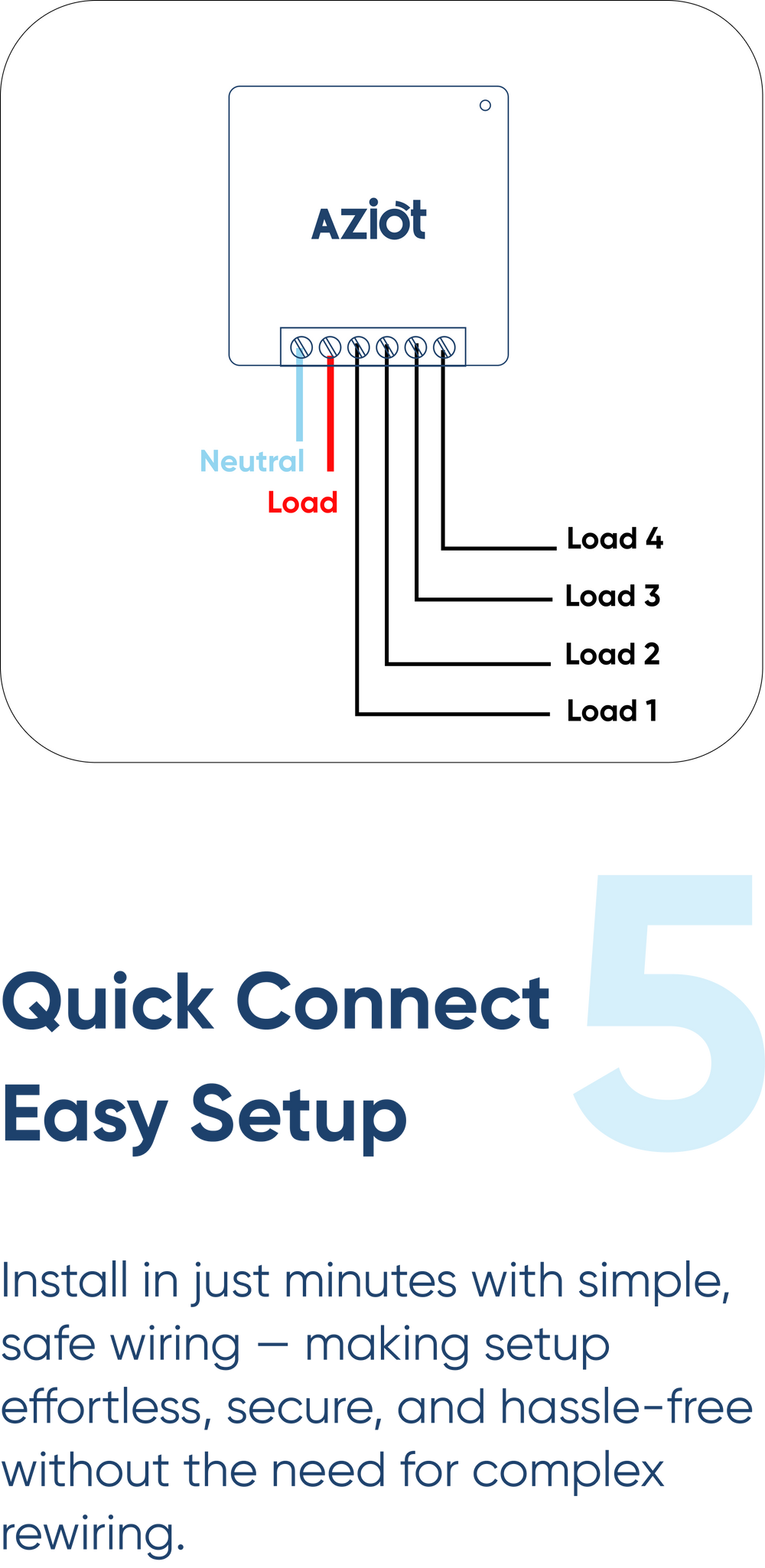

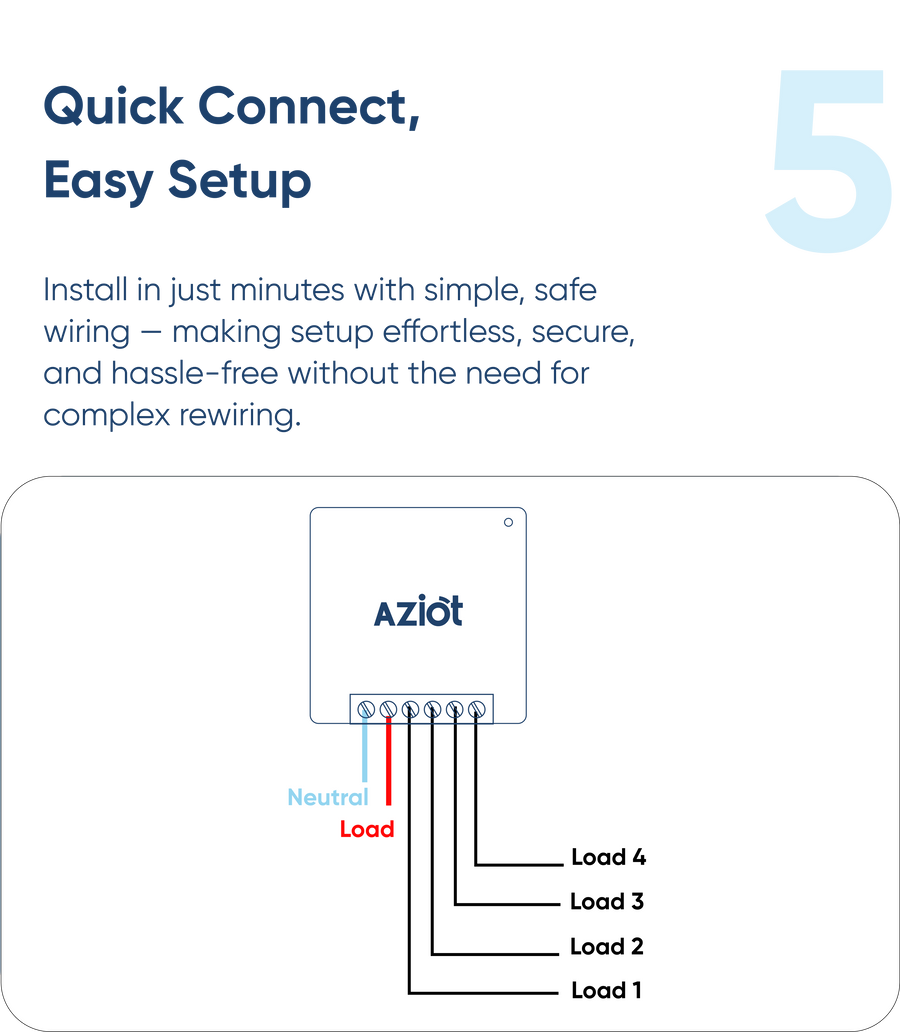

    4 Node

Black wire: Typically the Neutral wire.

Live wire (Input): The main live input wire, connecting to the copper terminal between the toggles, is usually red or brown.

Output Load Wires: These wires connect to the individual toggle switches and carry the current to the load (e.g., lights, fans). They can be red, brown or blue.

For best results and safety, it’s recommended to have an experienced electrician handle the installation, as they will have a better understanding of the wiring process.

To reconfigure:

  1. Restart the main MCB.
  2. Toggle the switch on and off 7–8 times until the red LED starts blinking.
    This indicates the device is ready for reconfiguration.
