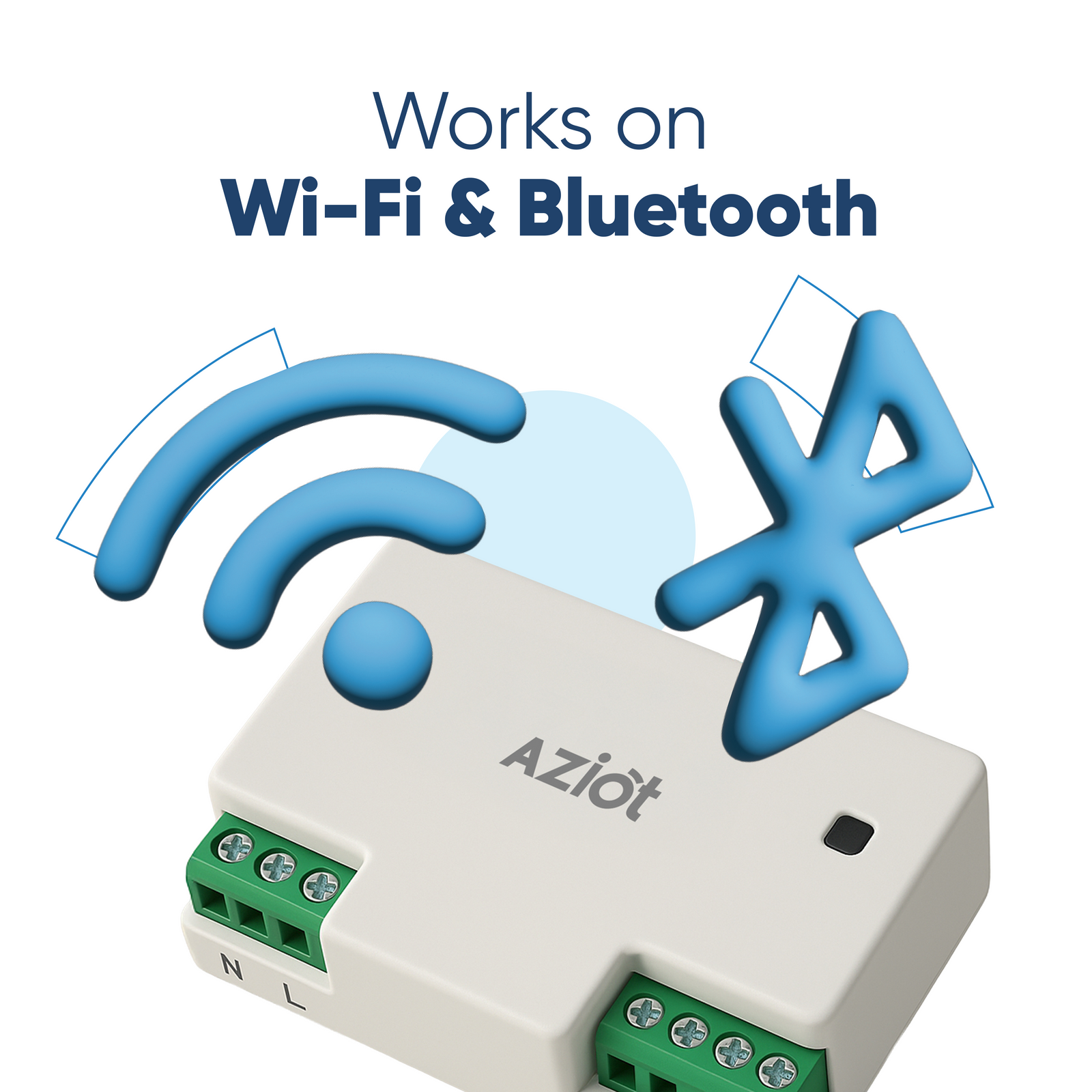

AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled

Smart Retrofit Switch with Fan Speed Control

Rs. 1,499.00 Rs. 8,999.00 83% Off
MRP inclusive of all taxes • EMI available
Overview

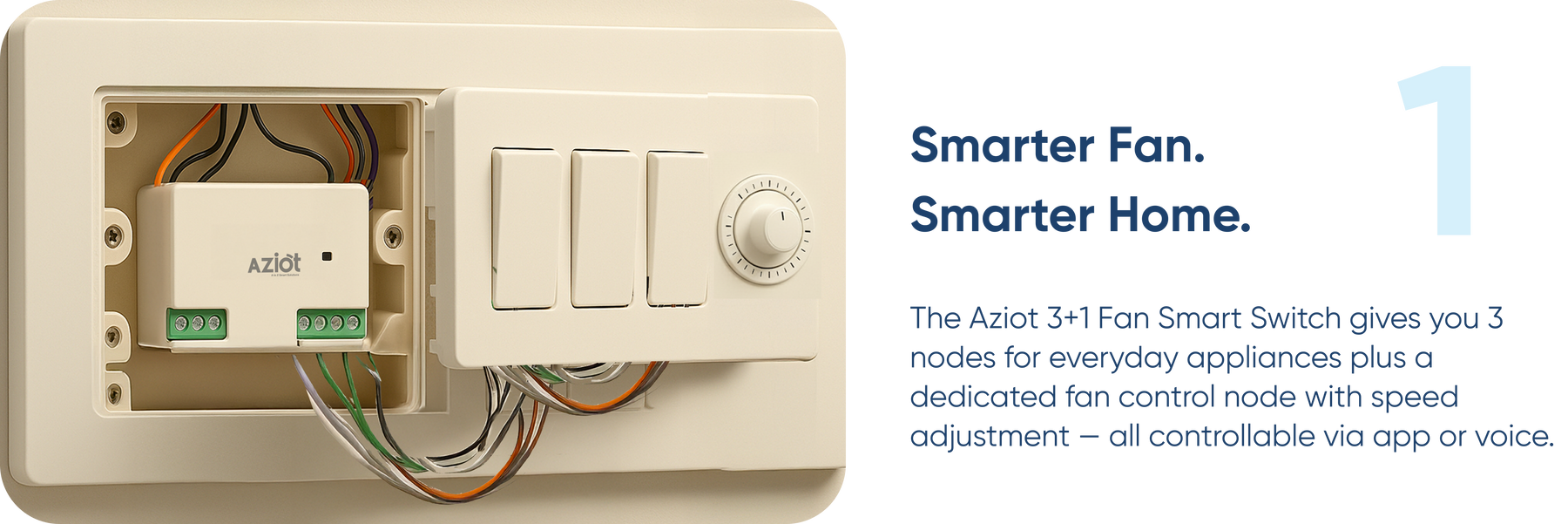

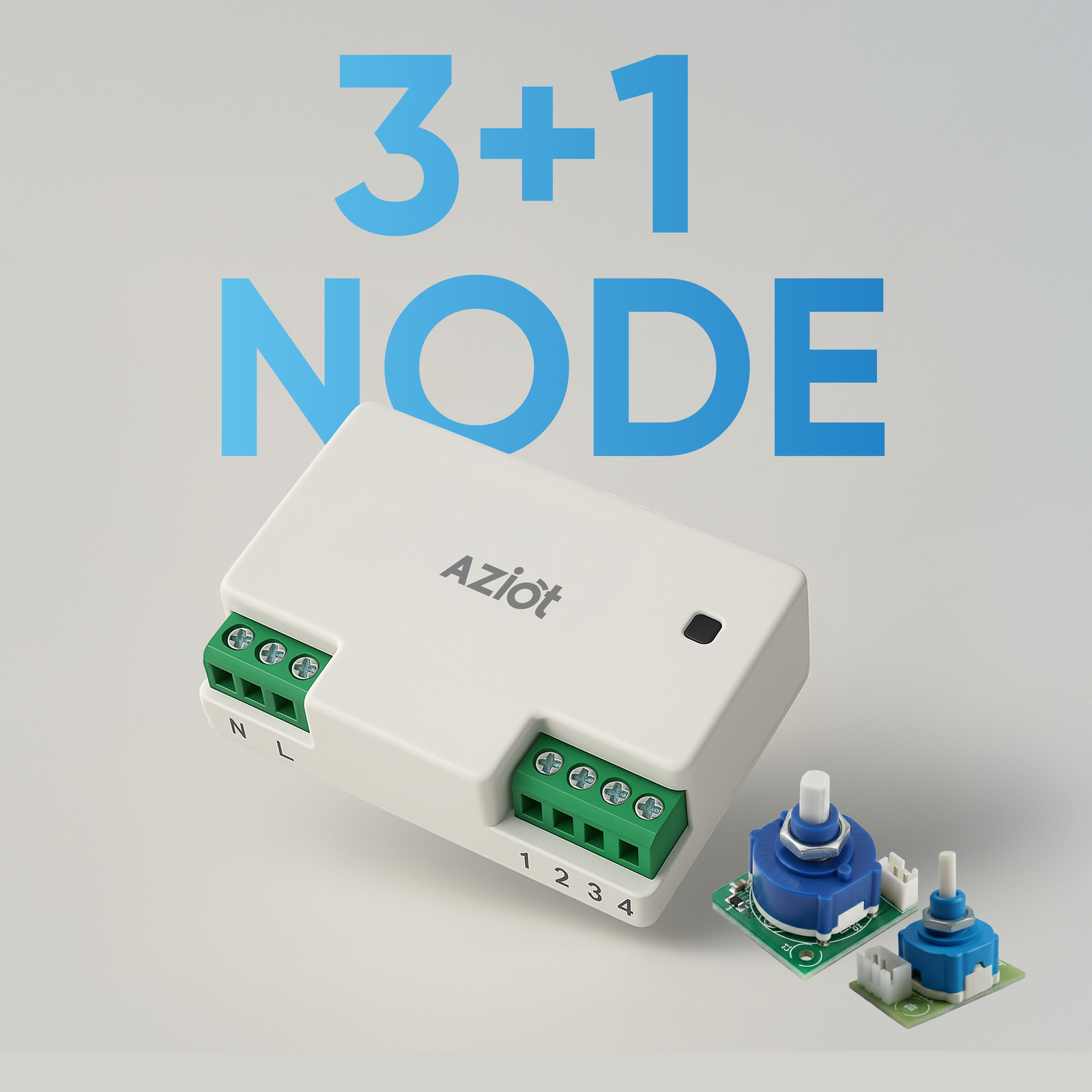

Introducing the 3+1 Fan Retrofit Switch, an innovative and convenient way to upgrade your home's lighting system. You can control 3 switches and 1 Fan. Product also comes with manual regulator to control fan with manual regulator as well.This retrofit switch is designed to be easily retrofitted into your existing switch boards, allowing you to control your lights with your smart phone via wifi/bluetooth. Made in India with a robust design. The retrofit switch also allows scheduling, and even works without internet. Plus, enjoy great after sales support and 1 year warranty for peace of mind. Upgrade your home with the 3+1 Fan Retrofit Switch today!

Features
  • 3-Channel Switch + Fan Control: Works seamlessly with your existing switches. Includes 1 channel for fan speed control with your existing regulator.
  • Humming-Free Fan Speed: Enjoy smooth, noise-free fan speed adjustment with 4 levels of control.
  • No Additional Wiring: Fits inside your existing switchboard—no extra wiring needed.

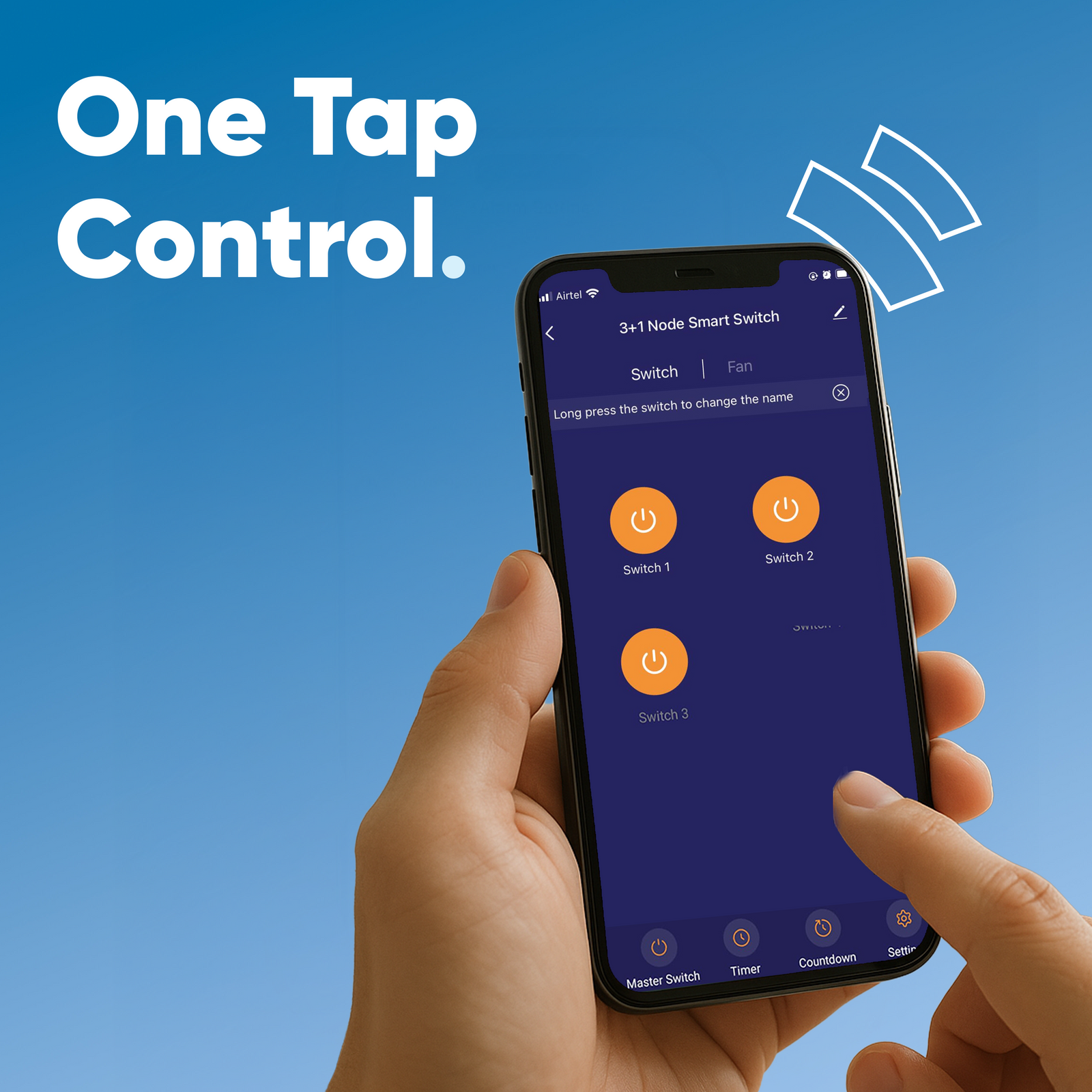

  • Voice & App Control: Manage your lights and fan with Alexa, Google Home, or your smartphone.
  • Smart Automation: Set schedules, timers, or location-based triggers to control your devices effortlessly.
  • Works Offline: Operates without internet, so you stay in control anytime.
  • Compact Design: Installs easily into your current switchboard for a clean and hassle-free setup.
  • Made in India: High-quality and durable, built to meet Indian standards.
  • 1-Year Warranty: Backed by reliable after-sales support for peace of mind.
Specifications

AC Specifications
Operating Input Power Range
100 VAC-240 VAC+-5%, 47-63 Hz

Maximum Load per Node
Node 1: Fan -120Watt Max

Node 2, 3 & 4
Resistive Loads: 500W / per Node
(Conventional Incandescent and halogen light
sources )

Resistive-Capacitive Loads: 100 W /Per Node
(Fluorescent Tube lamp, CFL, and LED )

LED loads maximum combination is 5 numbers
per Node irrespective of wattage.

Fixed Inductive Loads: 300VA

General Specifications
Power Consumption when loads off <0.2 W

Power Consumption when loads on <1.0 W

Temperature Operation 0 C to +50 C.

Storage -20 C to +70 C.

Relative Humidity
Operating 5%RH to 95%RH Non-Condensing.
Storage 5%RH to 95%RH Non-Condensing

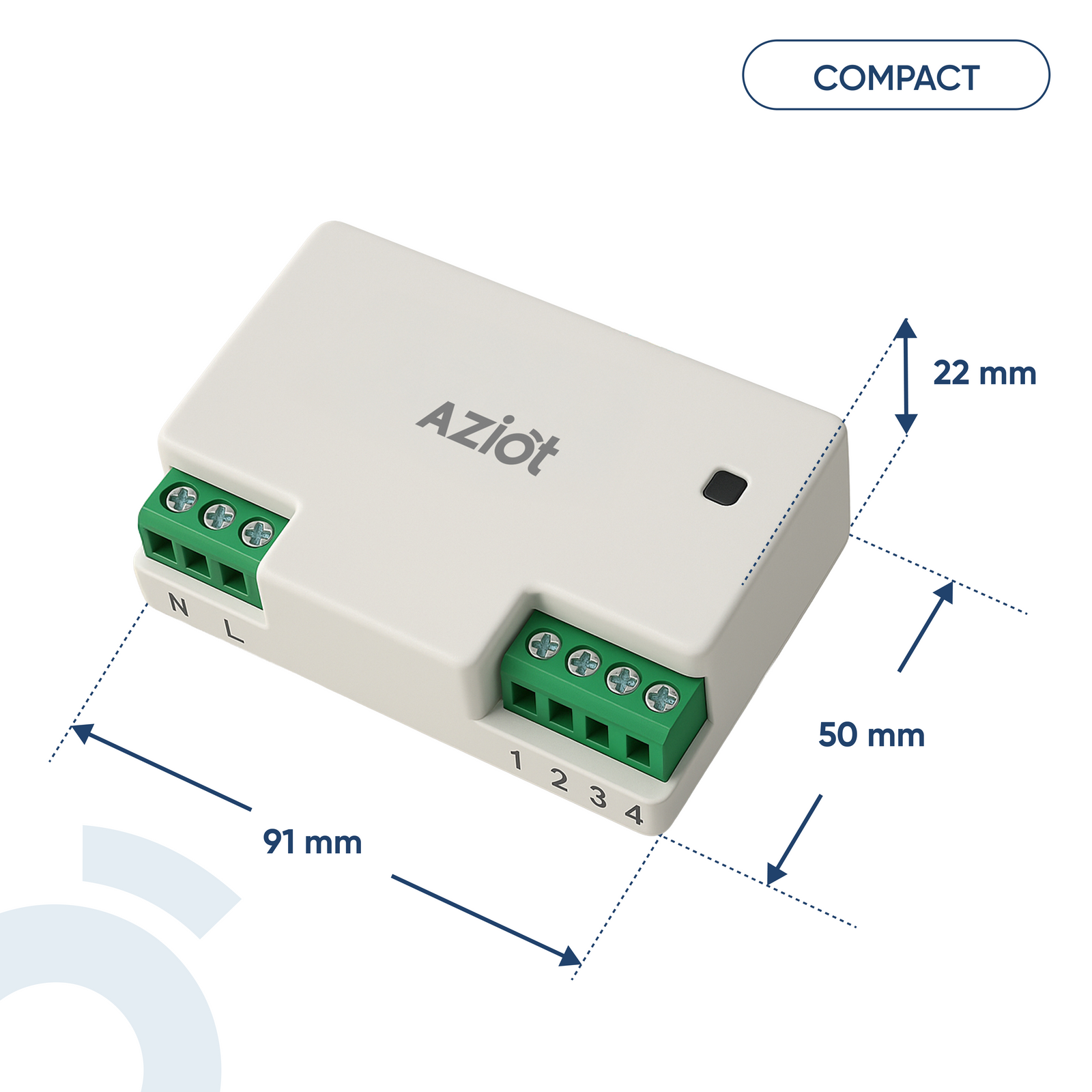

Dimensions - 92mm x 51mm x 23mm

RF Frequency -2.4 GHz

What We Solve
Download User Manual
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
AZIOT 3+1 (Node) Fan Smart Switch - WiFi/Bluetooth Enabled
A+ Square 1A+ Square 2A+ Square 3

Customer Reviews

Based on 53 reviews
89%
(47)
6%
(3)
6%
(3)
0%
(0)
0%
(0)
100.0
p
pradhap
Nice

Great one but not fit inside the switch box but alexa connectivity is very good works perfectly

A
Anonymous
easy installtion intigrated with applicatioon

easy installtion intigrated with applicatioon. Not sure about heat dissipation over regular use as it is inside concealed box

m
mrsmano@gmail.com
It is worth buying configuration is very simple and the device is working seamlessly

It is worth buying and configuration is very simple and the device is working seamlessly

I
Ishwar Tah
This brand is the best

Its work well and integrated with alexa. There is no lag, easy to use ( in app, and voice).

A
Altaf Mohammed
Best home automation

Best product working is good

123

Real customer stories

4.82 ★ (1439)
Verified

FAQs

How to install the device?

The device easily fits behind your existing switch plate within the gang box. Installation requires basic electrical knowledge and can be done by you or a local electrician. For step-by-step guidance, watch our installation videos on YouTube.
Aziot@youtube: https://www.youtube.com/channel/UCxo8tpr7D2hA_XMOJ6kwBdw

  • 1 Node: Supports up to 16 amps
  • 2 Node: Supports up to 6 amps
  • 4 Node: Supports up to 6 amps
  • 4 Node Mini: Supports up to 7 amps

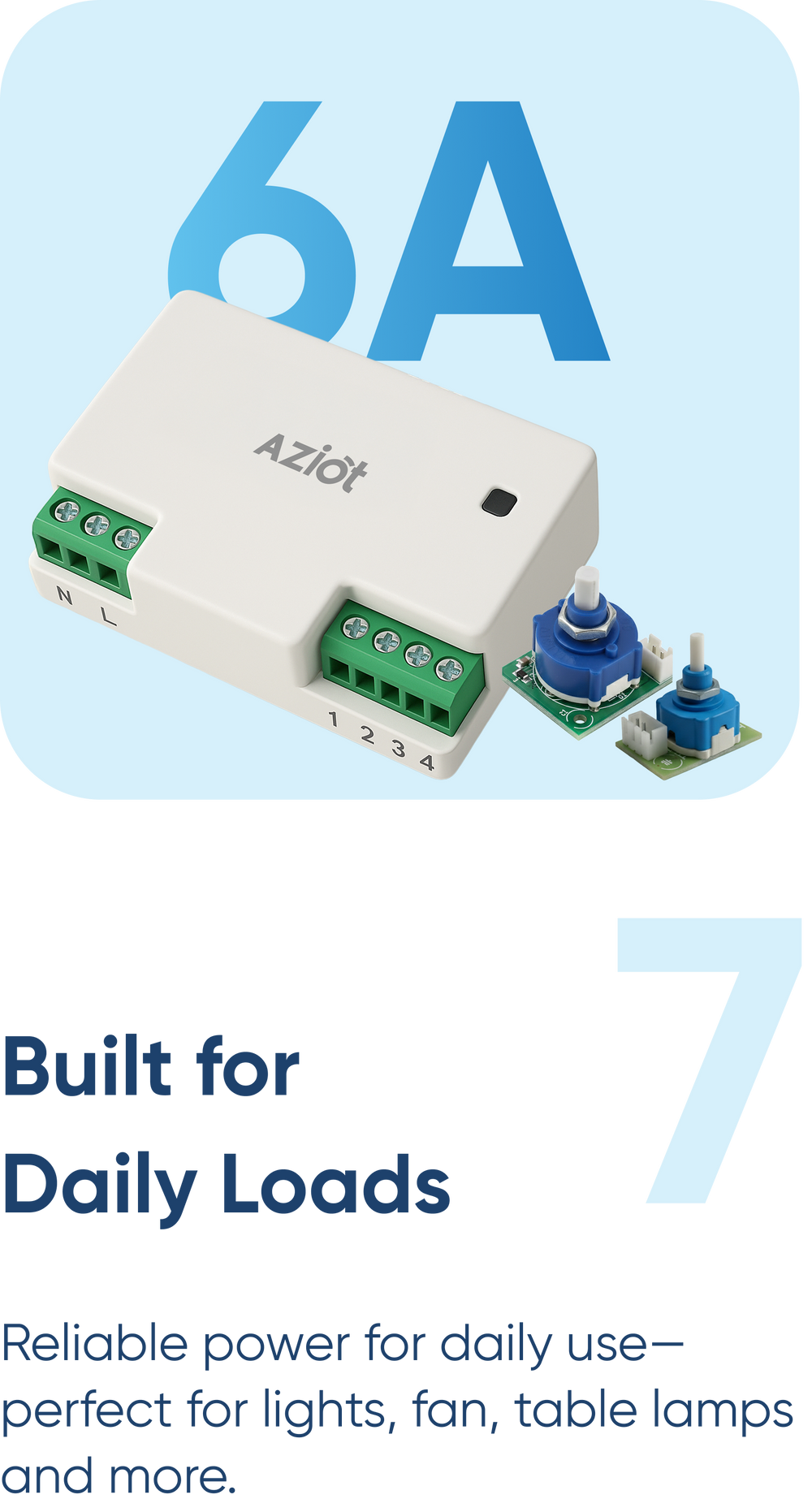

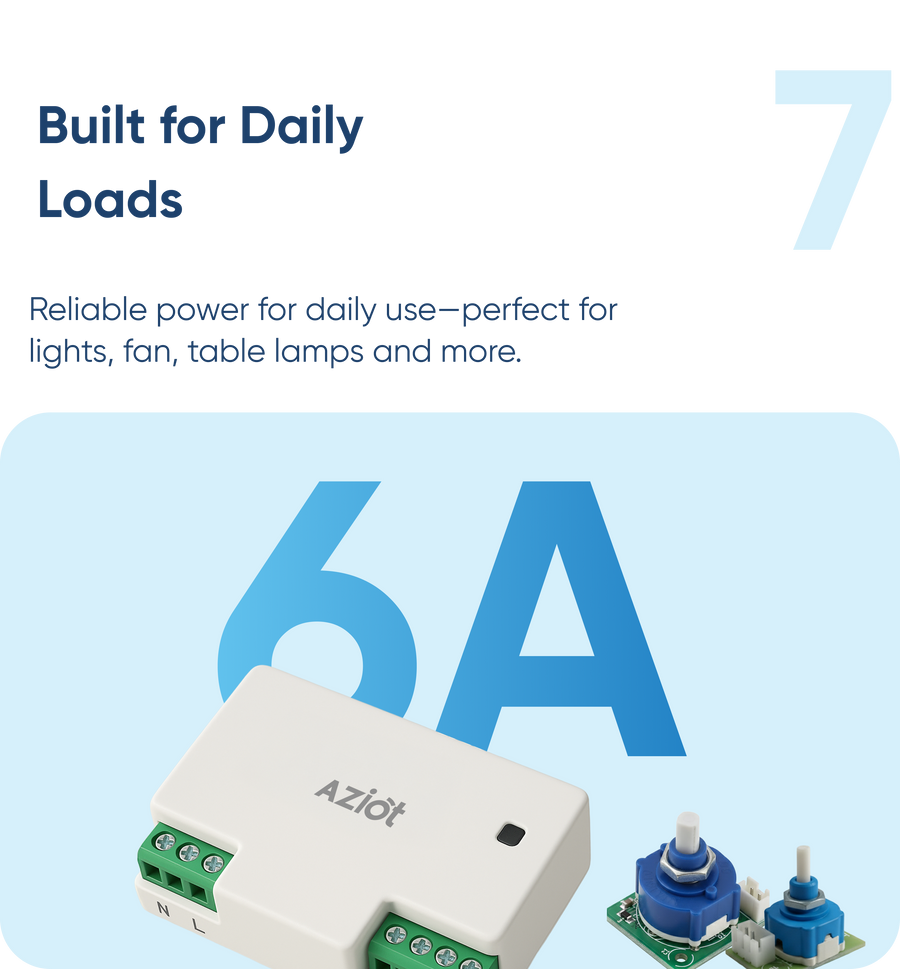

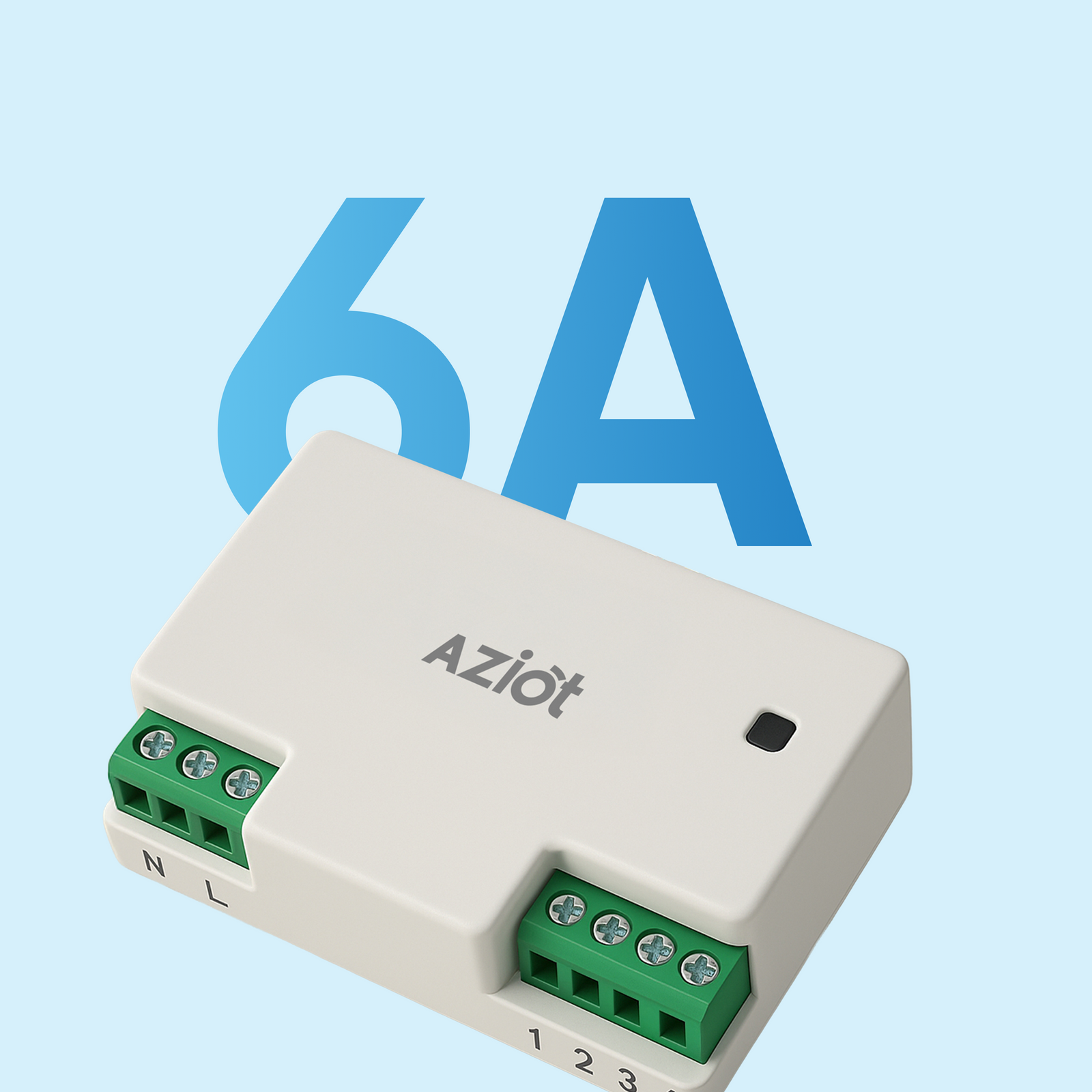

  • 3+1 Node: Supports up to 6 amps
  • Circuit Breaker with Metering: Supports up to 16 amps
  • Circuit Breaker without Metering: Supports up to 16 amps

1 Node (16 amps): Suitable for heavy-duty appliances such as ACs, coolers, and similar high-power devices.

Devices with 10 amps load capacity: Ideal for lighting automation and moderate-power appliances.

3+1 Node: Not compatible with BLDC fans.

Circuit Breakers (with and without metering): Designed for heavy-duty appliances requiring up to 16 amps.

If the device appears offline:

  • It could be due to a weak WiFi signal.
  • Restart your router to re-establish the connection.
  • Ensure the device is within range of your WiFi network.

Yes, you can control the device remotely via the smartphone app, no matter where you are in the world, as long as you have an active internet connection.

The 2.4GHz band is a standard WiFi frequency used for most smart devices. Ensure your router supports this band for seamless compatibility with the Touch Modular Switch.

The device is fully compatible with Alexa, Siri, and Google Home for voice control. Follow these steps for configuration:

  1. Open the respective app (Alexa, Google Home or Apple HomeKit).
  2. Add the device using the app’s instructions.
  3. Link your account and complete the setup.
    For more details, refer to our YouTube tutorial.

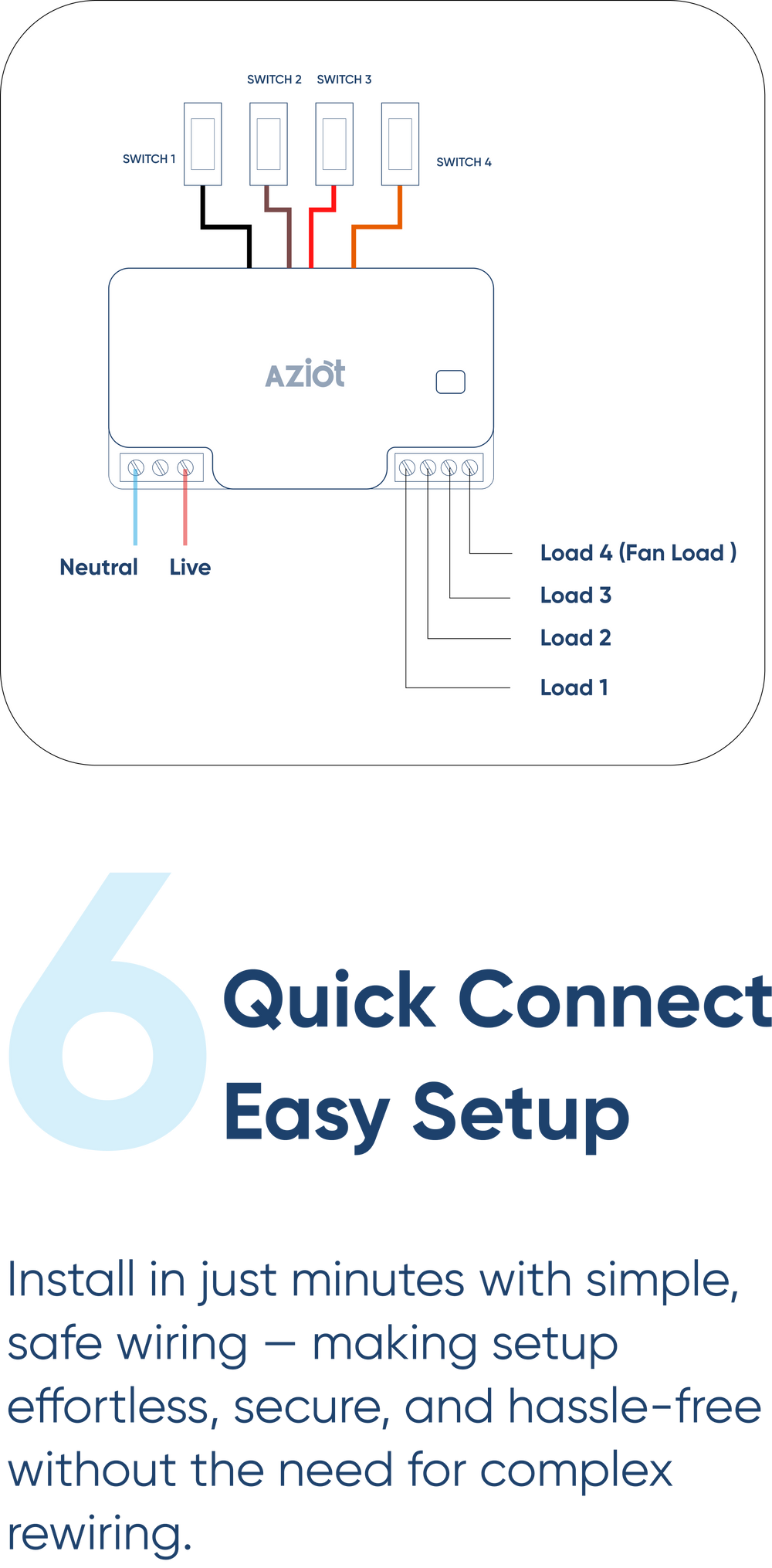

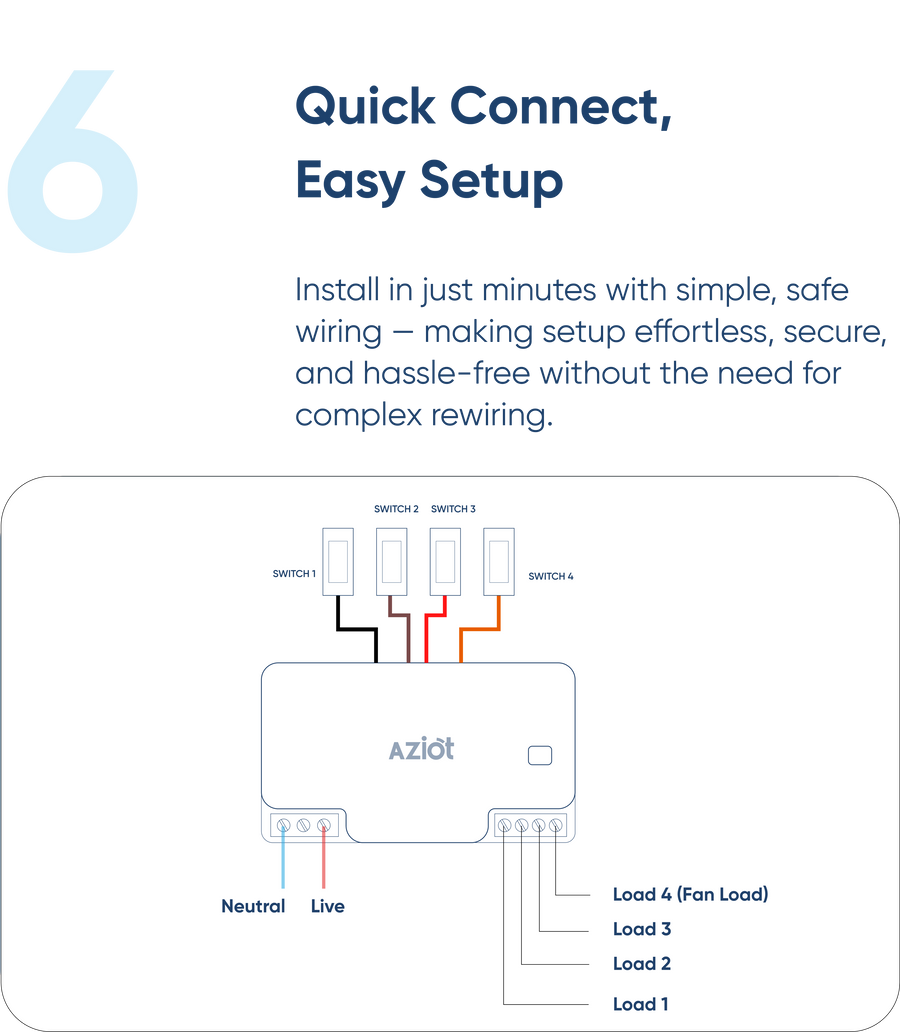

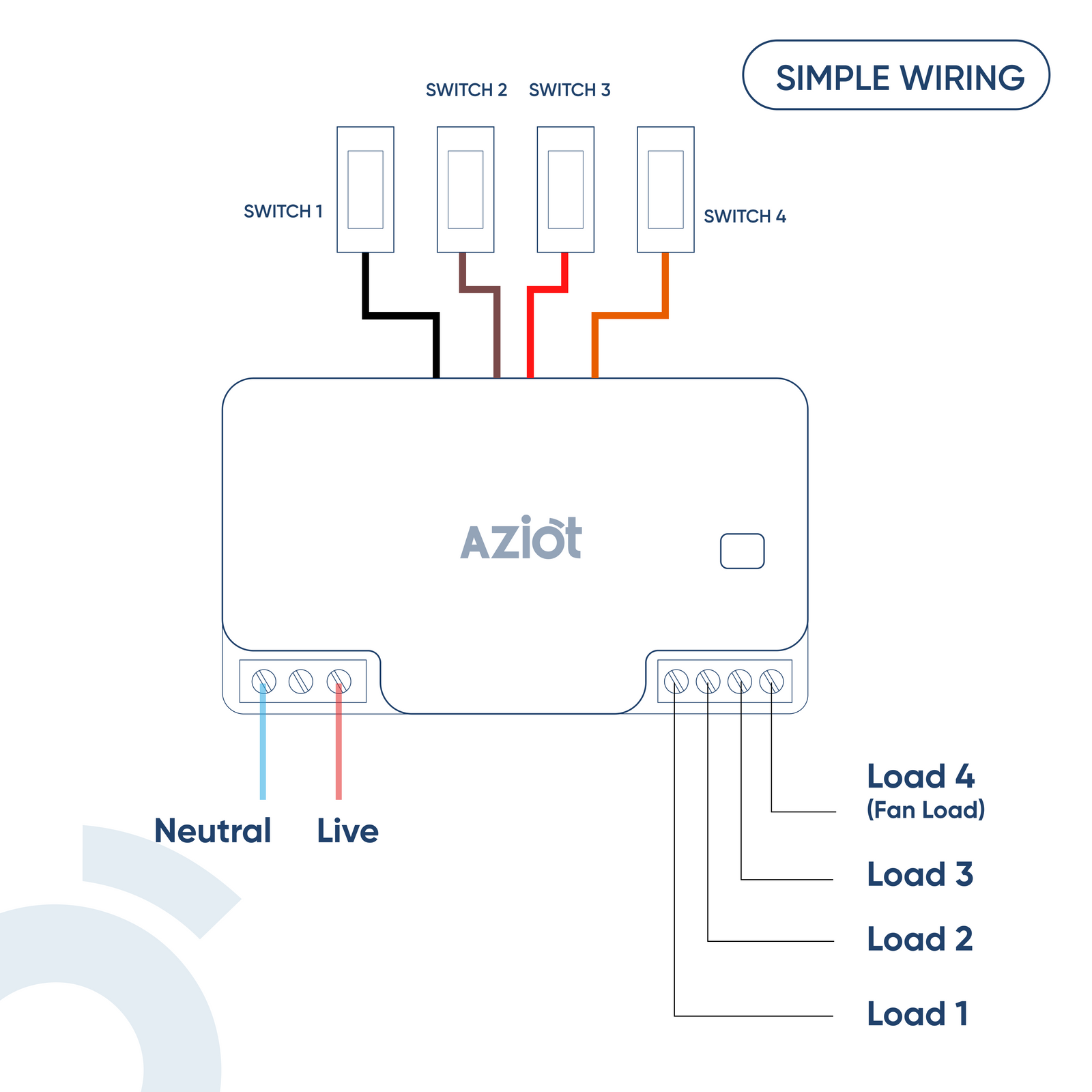

    4 Node

Black wire: Typically the Neutral wire.

Live wire (Input): The main live input wire, connecting to the copper terminal between the toggles, is usually red or brown.

Output Load Wires: These wires connect to the individual toggle switches and carry the current to the load (e.g., lights, fans). They can be red, brown or blue.

For best results and safety, it’s recommended to have an experienced electrician handle the installation, as they will have a better understanding of the wiring process.

To reconfigure:

  1. Restart the main MCB.
  2. Toggle the switch on and off 7–8 times until the red LED starts blinking.
    This indicates the device is ready for reconfiguration.
