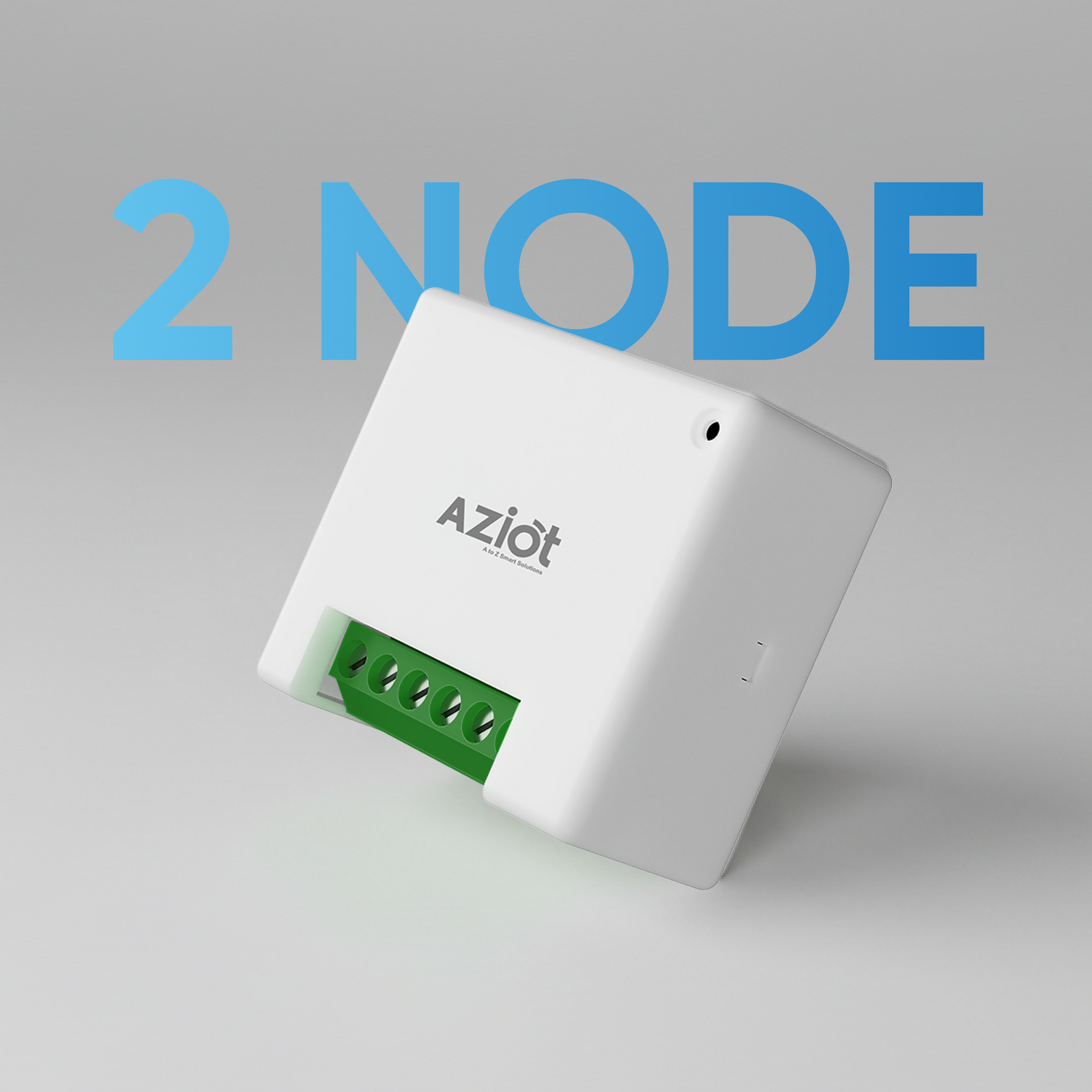

AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled

Smart Retrofit Switch

Rs. 799.00 Rs. 3,999.00 80% Off
MRP inclusive of all taxes • EMI available
Overview

Introducing the Smart Retrofit Switch, an innovative and convenient way to upgrade your home's lighting system. This retrofit switch is designed to be easily retrofitted into your existing switch boards, allowing you to control your lights with your smart phone via wifi/bluetooth. Made in India with a robust design. The retrofit switch also allows scheduling, and even works without internet. Plus, enjoy great after sales support and 1 year warranty for peace of mind. Upgrade your home with the Smart Retrofit Switch today!

Features

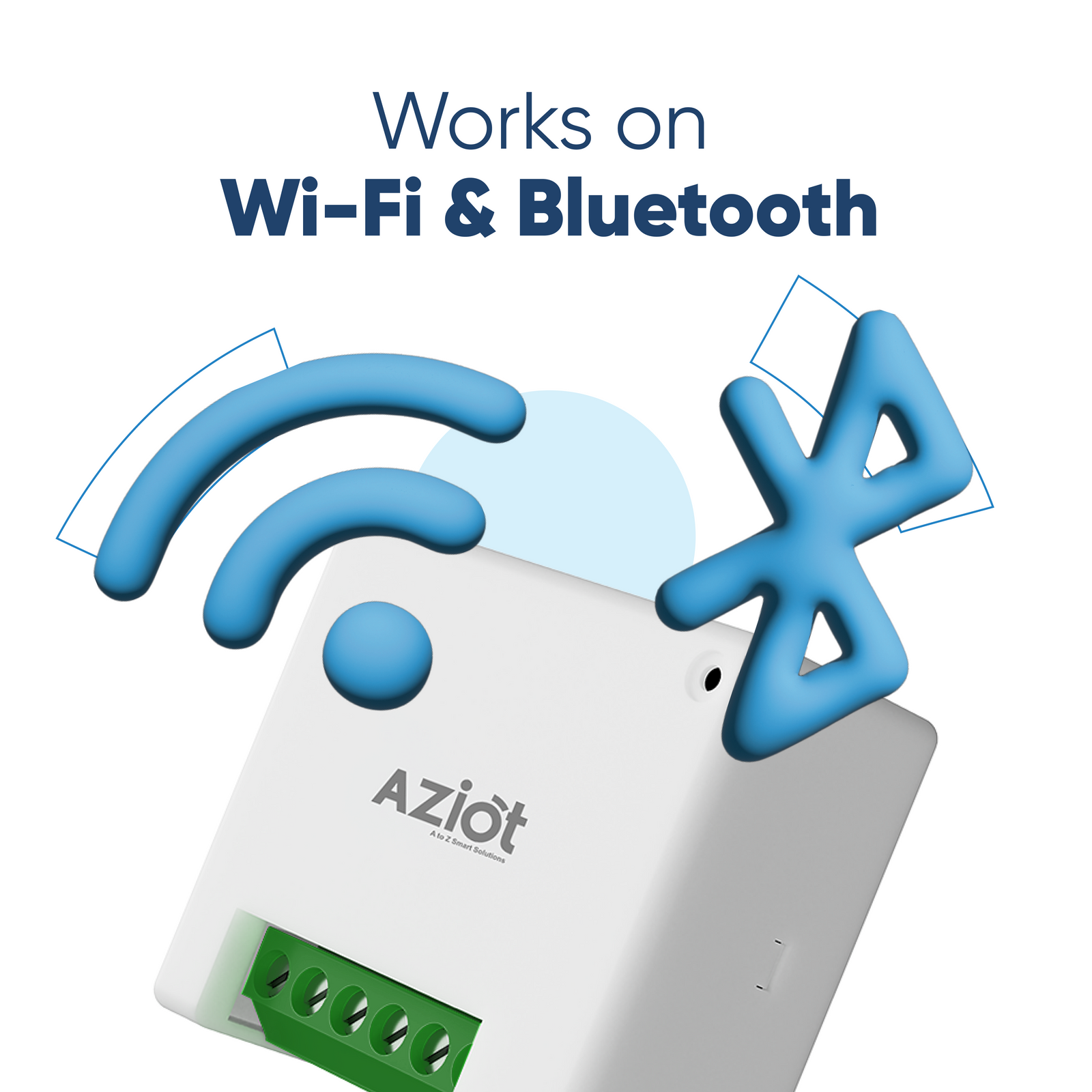

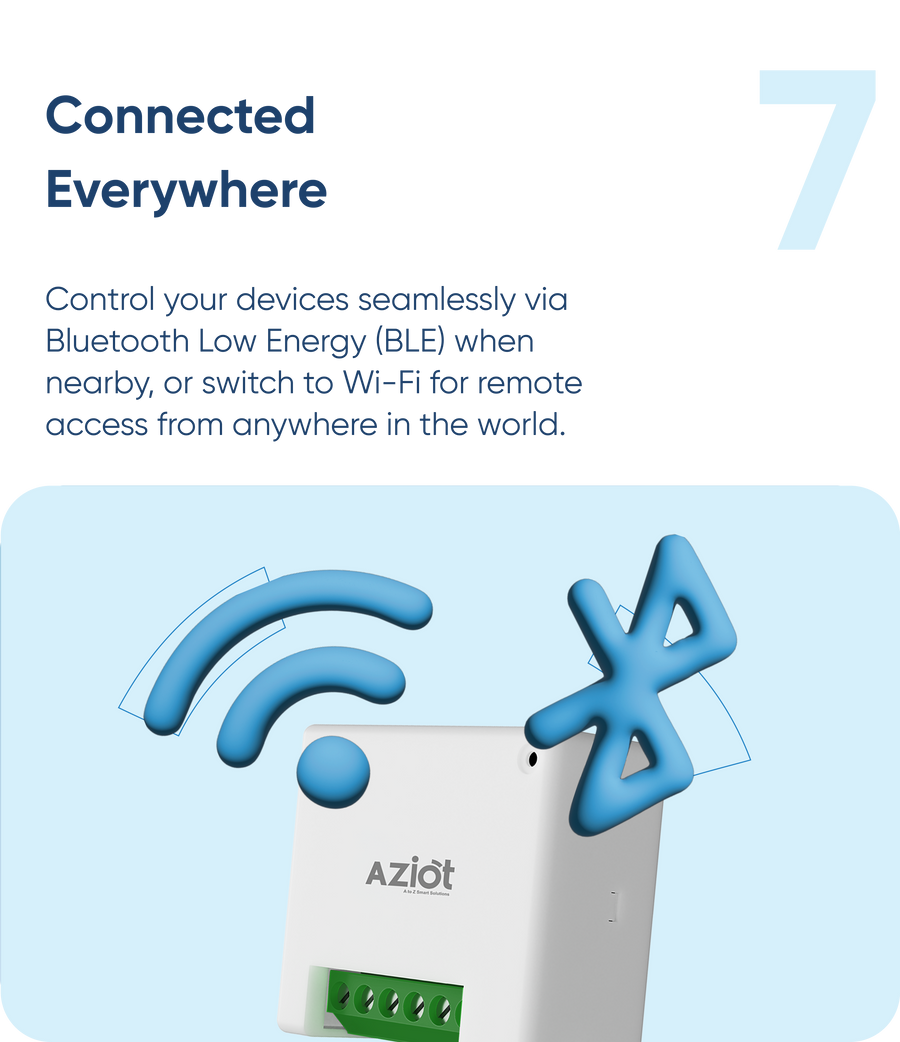

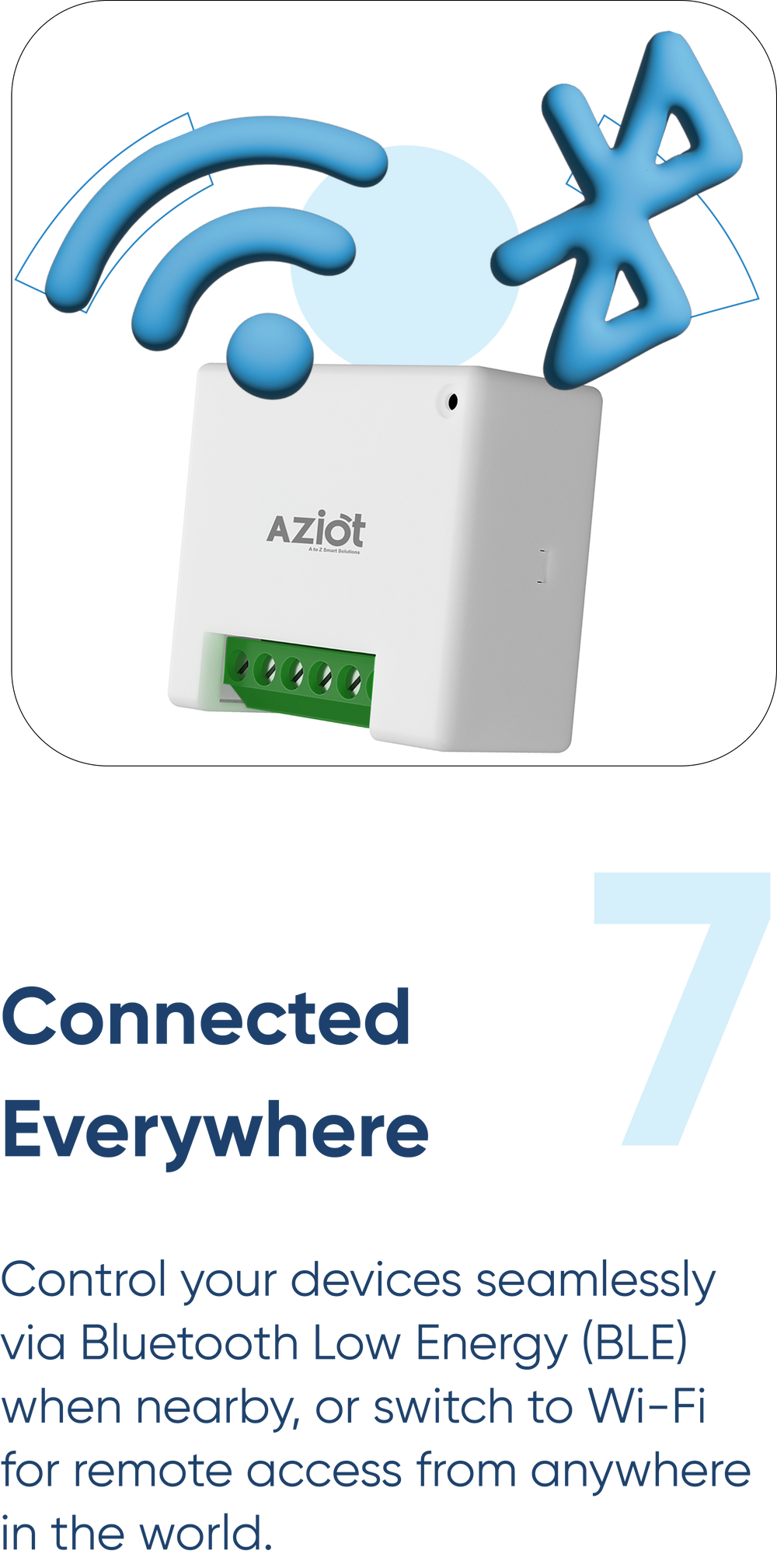

  • Reliable Connectivity: Stay in control anytime with dual Wi-Fi and Bluetooth for seamless performance.

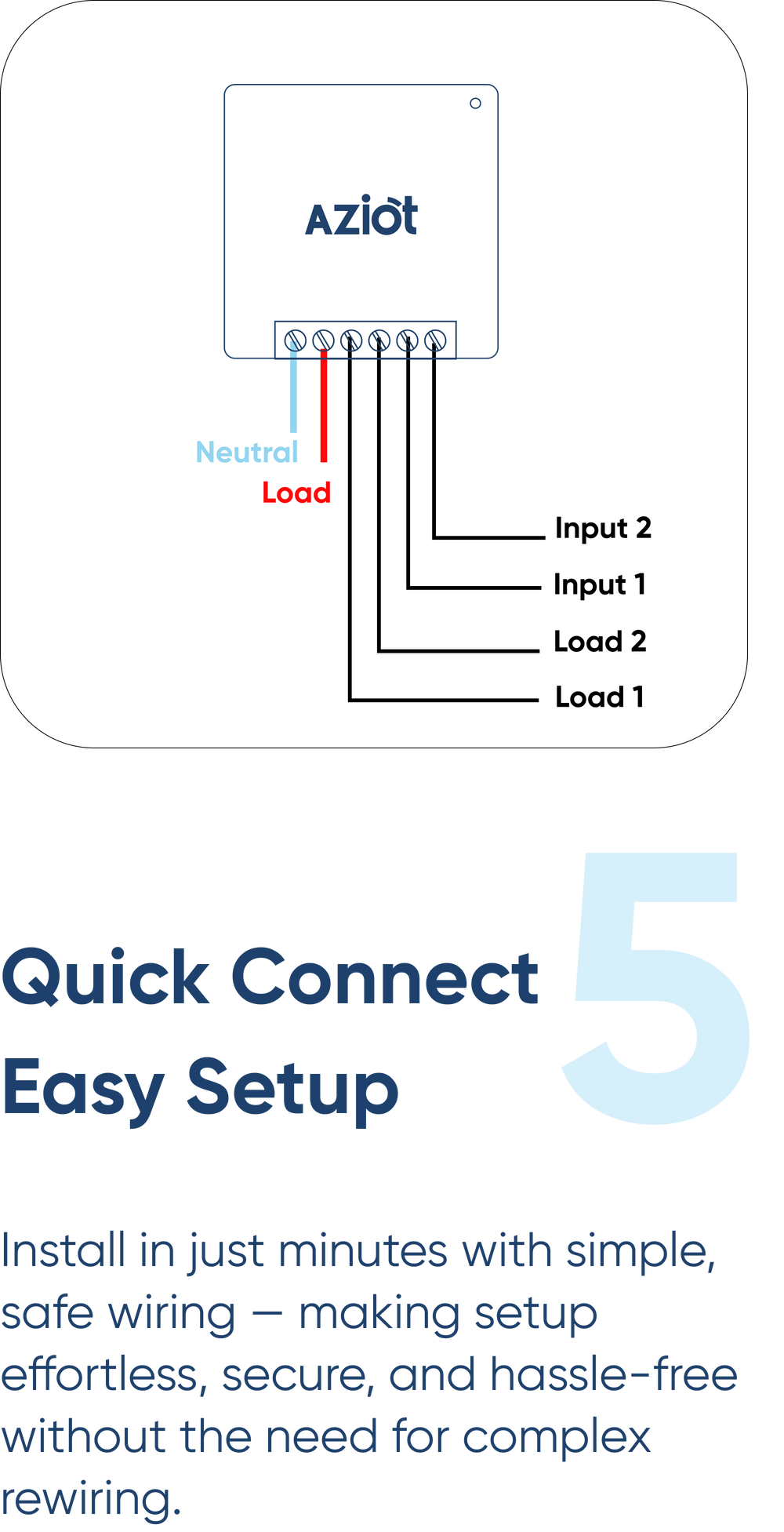

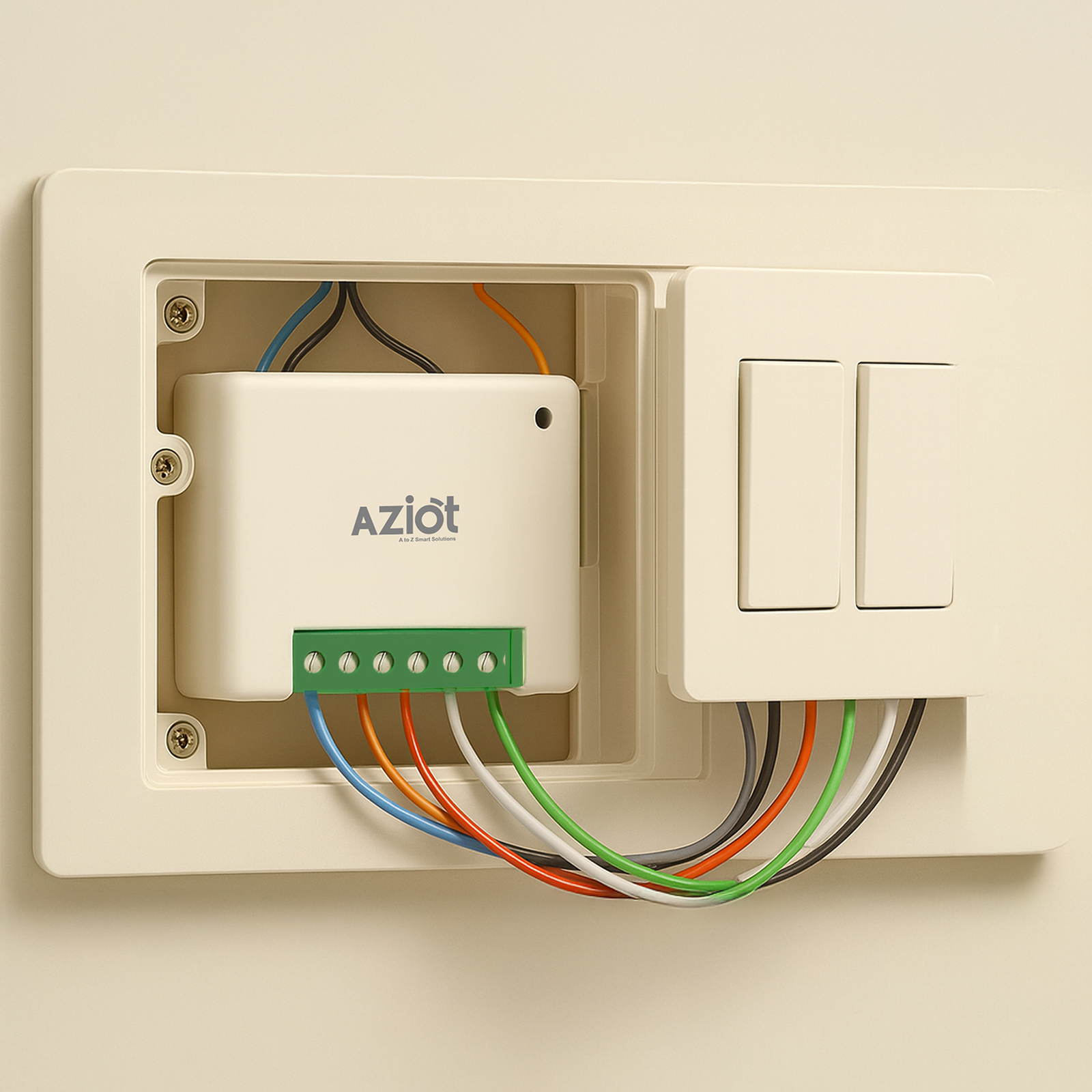

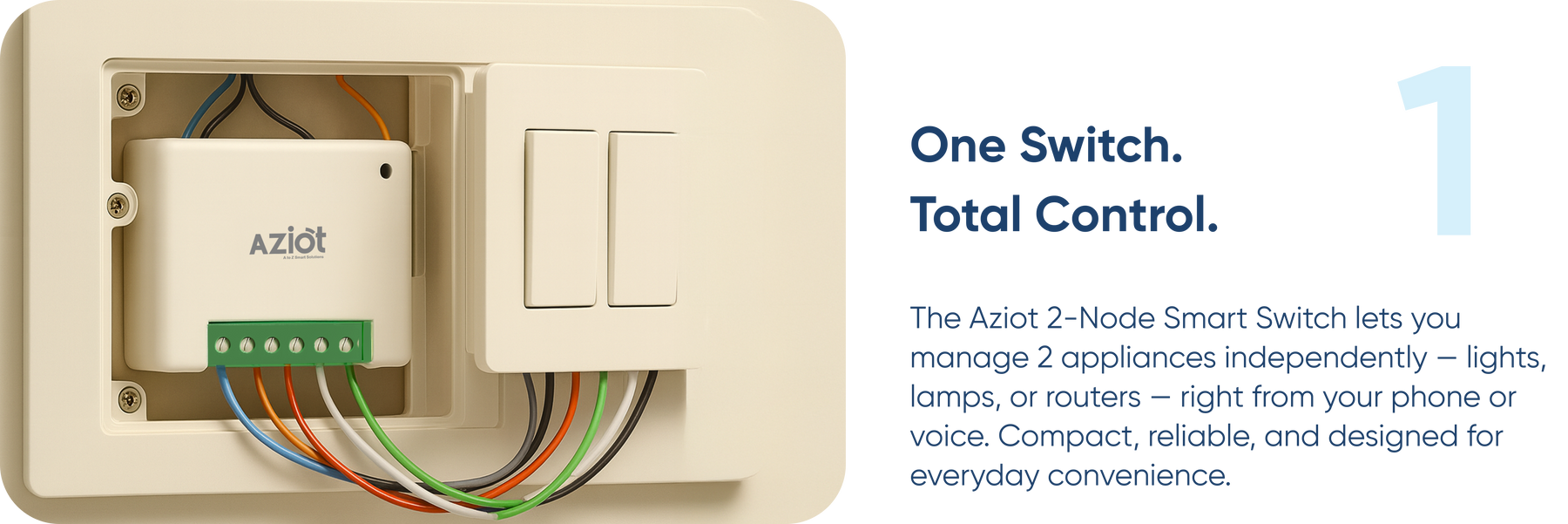

  • Quick & Easy Setup: No rewiring required—just fit it behind your existing switch plate and you’re good to go!
  • Smart Automation: Use the scheduling feature to automatically turn your lights on and off as needed.
  • Built to Last: Compact design tailored for Indian homes, fitting perfectly into standard 2-module gang boxes.

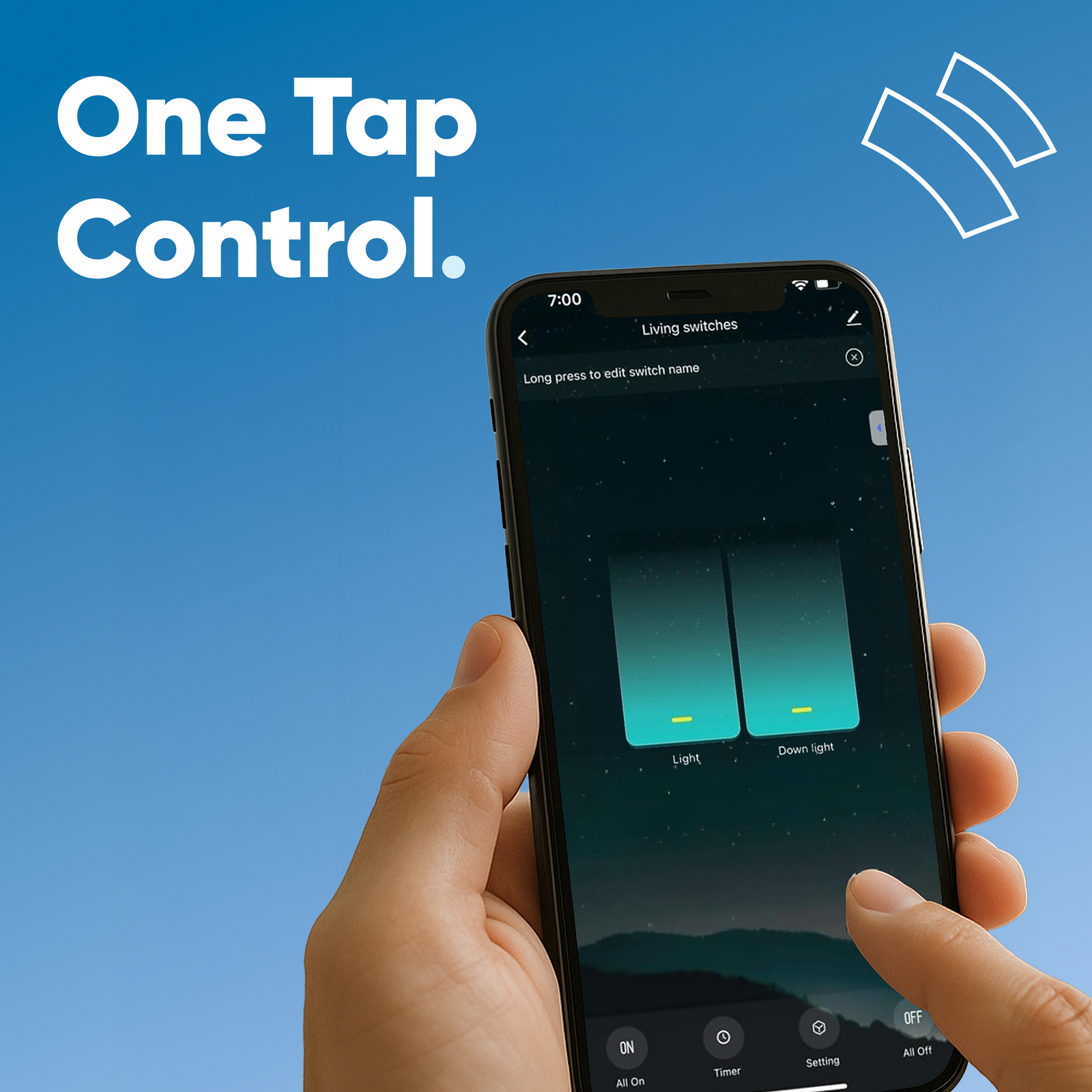

  • Effortless Control: Control your lights from anywhere using your smartphone or with simple voice commands through Alexa, Google Assistant, or Siri Shortcuts.
  • Proudly Made in India: Designed with quality and durability to meet local needs.
  • Peace of Mind: Comes with a 1-year warranty and dependable customer support.
Specifications

AC Specifications
Operating Input Power Range
100 VAC-240 VAC+-5%, 47-63 Hz

Maximum Load per Node Resistive Loads: 500W / per Node
(Conventional Incandescent and halogen light
sources )

Resistive-Capacitive Loads: 100 W /Per Node
(Fluorescent Tube lamp, CFL, and LED )

LED loads maximum combination is 5 numbers
per Node irrespective of wattage.

Fixed Inductive Loads: 300VA

General Specifications
Power Consumption when loads off <0.2 W

Power Consumption when loads on <1.0 W

Temperature Operation 0 C to +50 C.

Storage -20 C to +70 C.

Relative Humidity Operating -
5%RH to 95%RH Non-Condensing.

Storage -
5%RH to 95%RHNon-Condensing

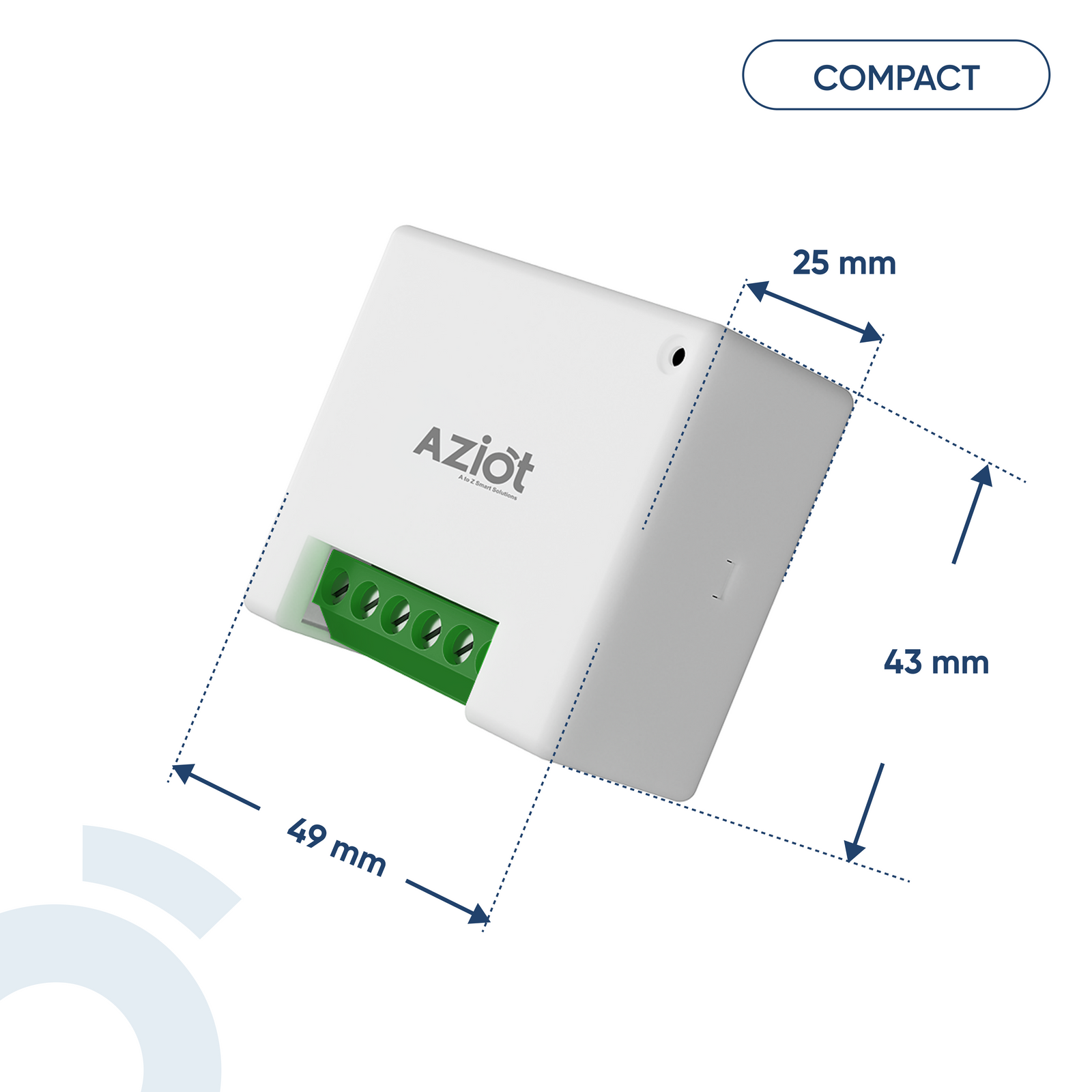

Dimensions - 49 mm x 43 mm x 23 mm

RF Frequency - 2.4 GHz

What We Solve
Download User Manual
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
AZIOT 2 Node Smart Switch- WiFi/Bluetooth enabled
A+ Square 1A+ Square 2A+ Square 3

Customer Reviews

Based on 117 reviews
86%
(101)
12%
(14)
1%
(1)
0%
(0)
1%
(1)
83.3
A
Anonymous
Addghjkihhbbgh

Addghjkihhbbgh

S
Sk Choudhary
4 ya 8 node ka kimat ke bare mei bichar करने हेतु

2 node smart switch bluetooth Wi-Fi ke kimat ke ratio mein 2 node ke husab se kimat kam Hona chahie Matlab Ki 2 node ke double kimat se kam 4 node ka kimat km Hona chahie yh ek sujao hai

S
Shafek
Product

Working good.

A
Anonymous
No comments

No comments, excellent product

Z
Zing X
Voice command switches for Lighting systrm. Much affordable.

Its amazing product. I have converted my Living snd dining room light Automation with Alexa and Google Home.

123

Real customer stories

4.82 ★ (1439)
Verified

FAQs

How to install the device?

The device easily fits behind your existing switch plate within the gang box. Installation requires basic electrical knowledge and can be done by you or a local electrician. For step-by-step guidance, watch our installation videos on YouTube.
Aziot@youtube: https://www.youtube.com/channel/UCxo8tpr7D2hA_XMOJ6kwBdw

  • 1 Node: Supports up to 16 amps
  • 2 Node: Supports up to 6 amps
  • 4 Node: Supports up to 6 amps
  • 4 Node Mini: Supports up to 7 amps
  • 3+1 Node: Supports up to 6 amps
  • Circuit Breaker with Metering: Supports up to 16 amps
  • Circuit Breaker without Metering: Supports up to 16 amps

1 Node (16 amps): Suitable for heavy-duty appliances such as ACs, coolers, and similar high-power devices.

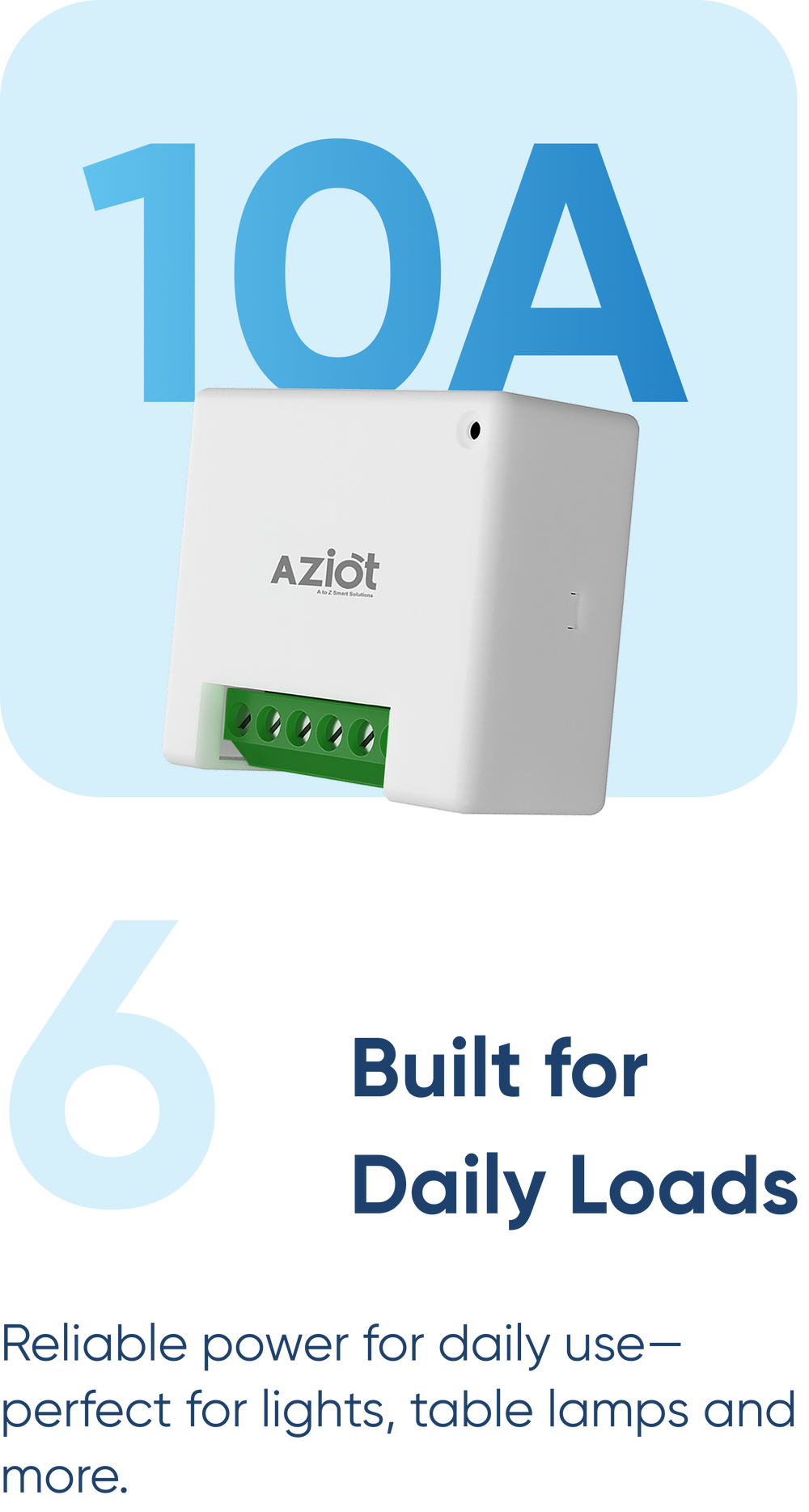

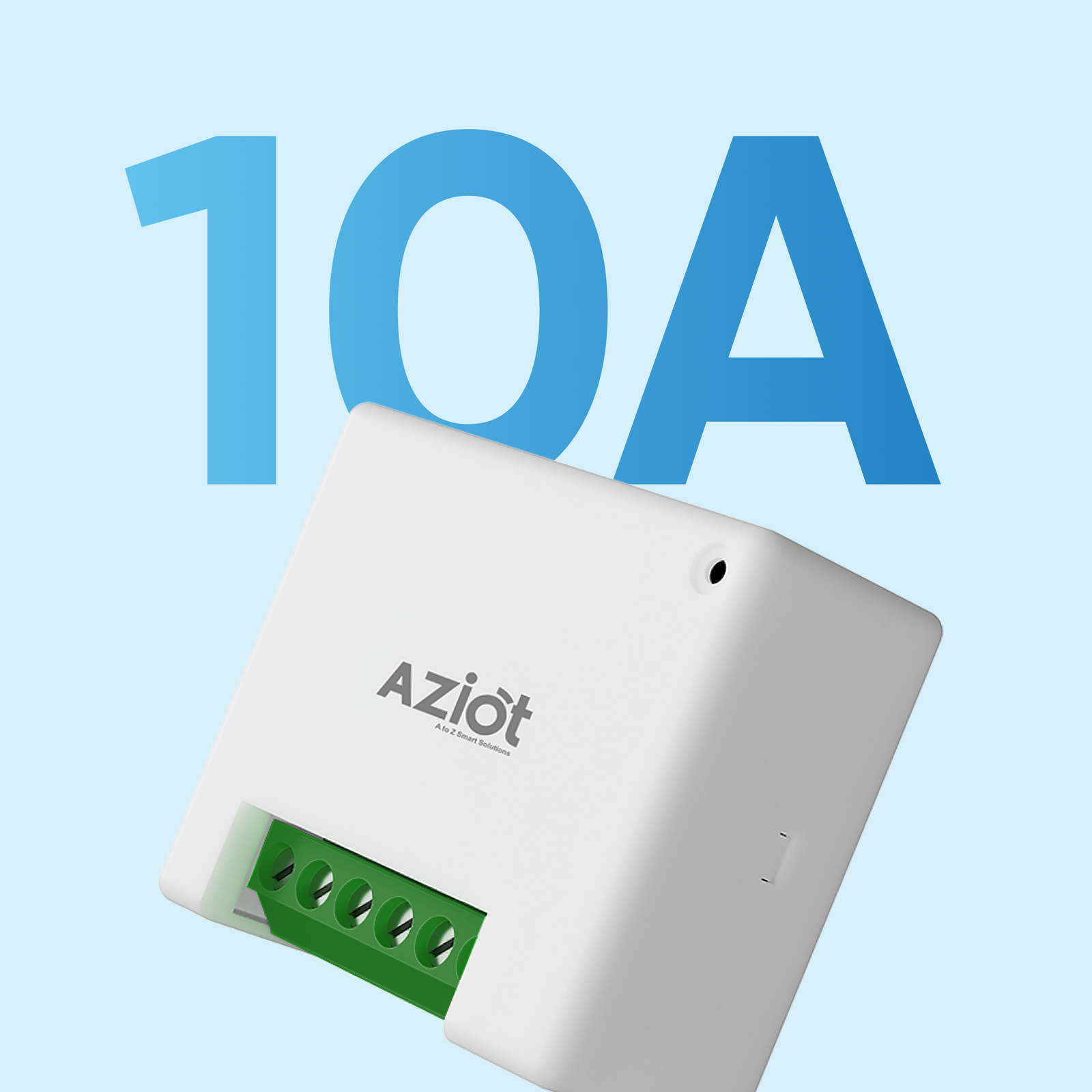

Devices with 10 amps load capacity: Ideal for lighting automation and moderate-power appliances.

3+1 Node: Not compatible with BLDC fans.

Circuit Breakers (with and without metering): Designed for heavy-duty appliances requiring up to 16 amps.

If the device appears offline:

  • It could be due to a weak WiFi signal.
  • Restart your router to re-establish the connection.
  • Ensure the device is within range of your WiFi network.

Yes, you can control the device remotely via the smartphone app, no matter where you are in the world, as long as you have an active internet connection.

The 2.4GHz band is a standard WiFi frequency used for most smart devices. Ensure your router supports this band for seamless compatibility with the Touch Modular Switch.

The device is fully compatible with Alexa, Siri, and Google Home for voice control. Follow these steps for configuration:

  1. Open the respective app (Alexa, Google Home or Apple HomeKit).
  2. Add the device using the app’s instructions.
  3. Link your account and complete the setup.
    For more details, refer to our YouTube tutorial.

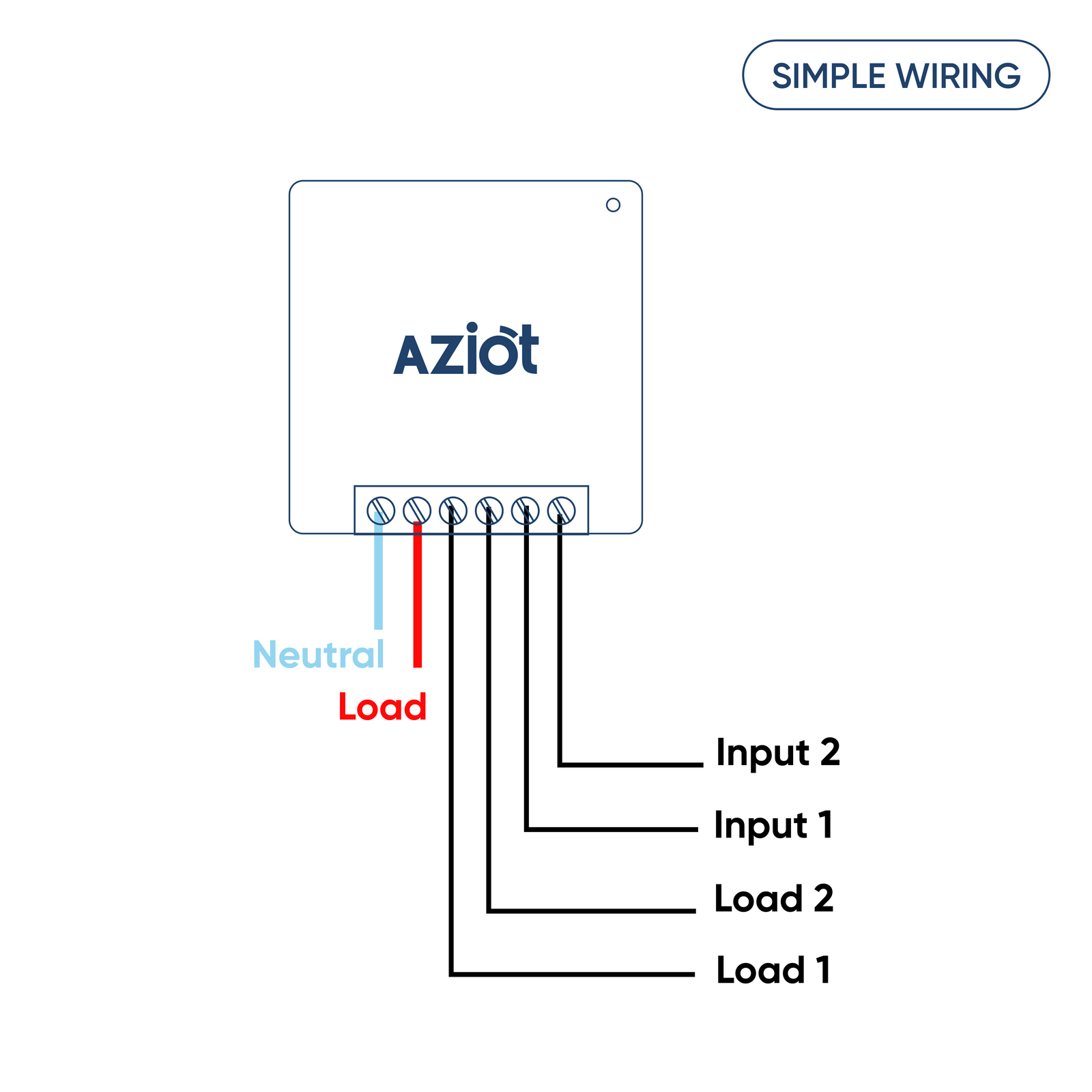

    4 Node

Black wire: Typically the Neutral wire.

Live wire (Input): The main live input wire, connecting to the copper terminal between the toggles, is usually red or brown.

Output Load Wires: These wires connect to the individual toggle switches and carry the current to the load (e.g., lights, fans). They can be red, brown or blue.

For best results and safety, it’s recommended to have an experienced electrician handle the installation, as they will have a better understanding of the wiring process.

To reconfigure:

  1. Restart the main MCB.
  2. Toggle the switch on and off 7–8 times until the red LED starts blinking.
    This indicates the device is ready for reconfiguration.
