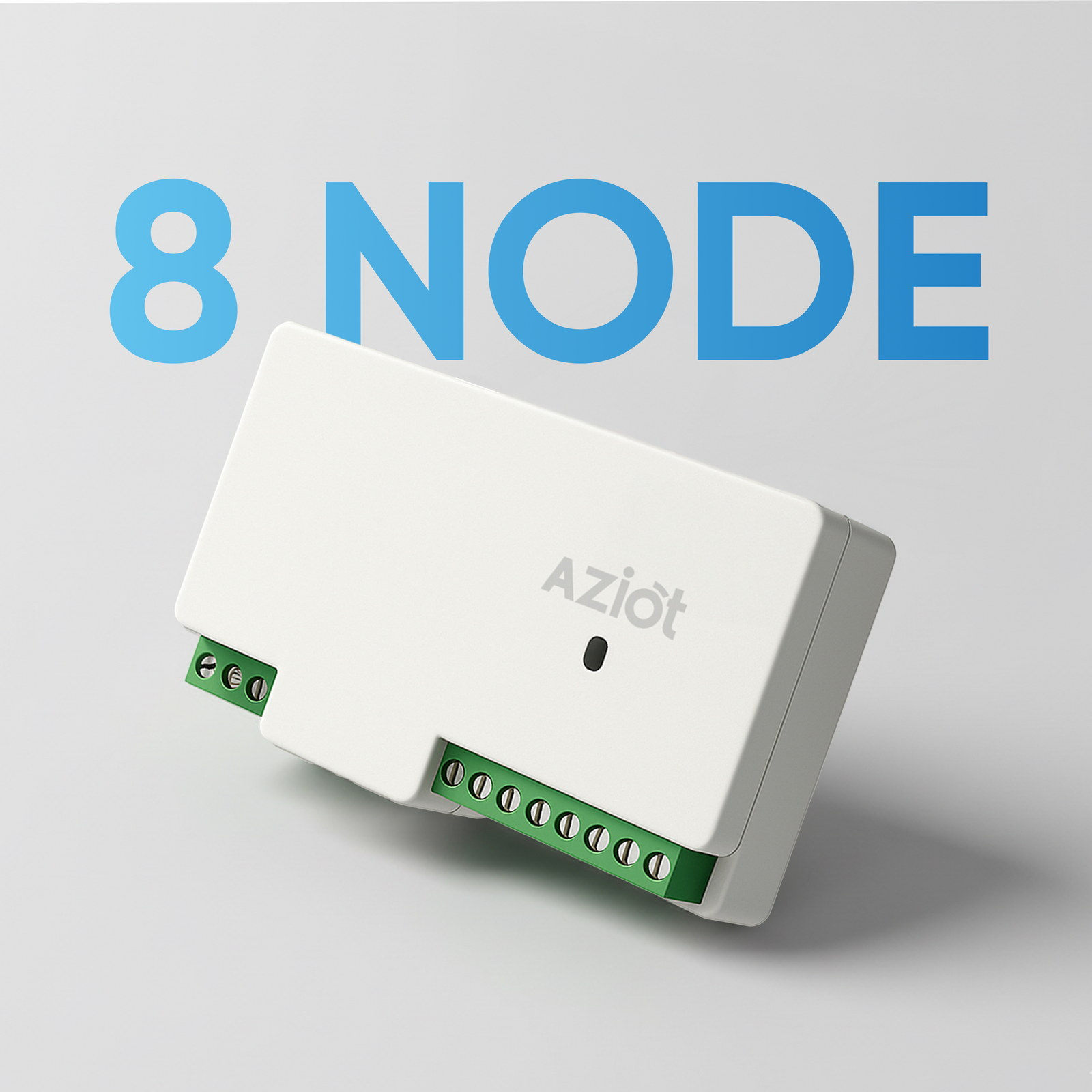

AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)

Smart Retrofit Switch

Rs. 1,799.00 Rs. 7,999.00 78% Off
MRP inclusive of all taxes • EMI available
Overview

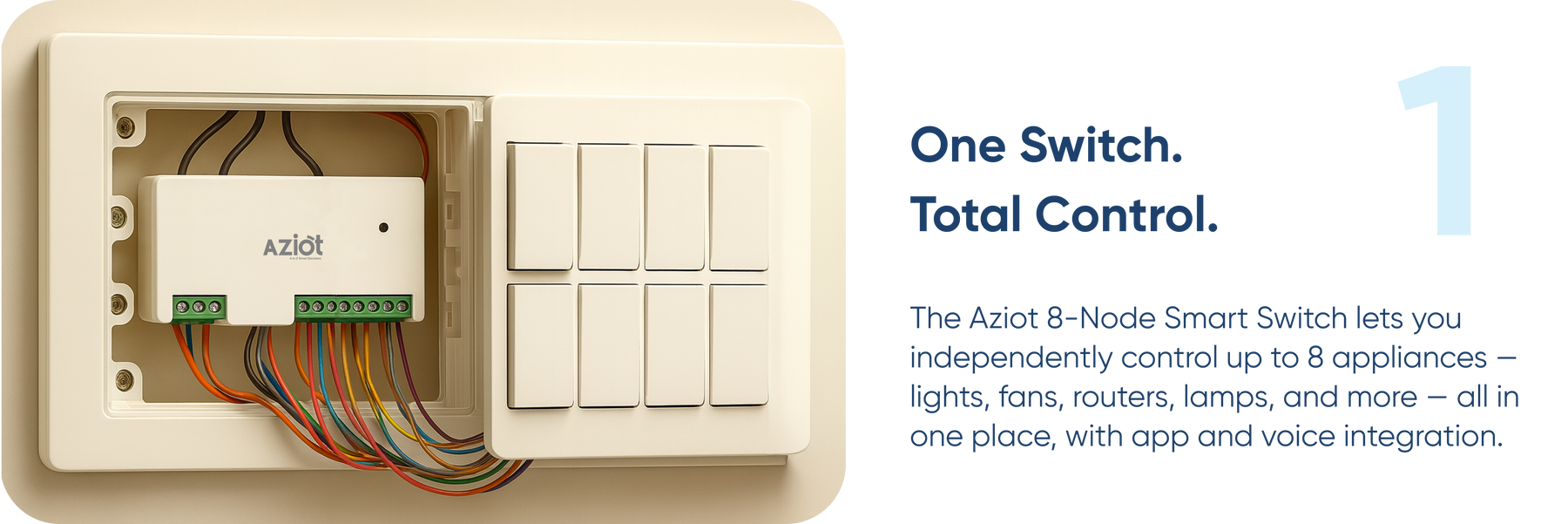

The AZIOT 8-Node Retrofit Smart Switch transforms your existing switchboard into a smart control hub without changing your existing switches or wall plates. Control up to 8 individual lights or appliances using your smartphone or voice, with full support for Amazon Alexa and Google Assistant. The compact design installs neatly behind your switchboard, keeping your interiors intact. Manage devices from anywhere using the SmartLife app—set schedules, automate routines, or remotely switch devices on/off. Built-in WiFi and Bluetooth ensure reliable connectivity, even during internet outages. Ideal for modern Indian homes, this Made in India smart switch brings energy efficiency, comfort, and convenience with zero rewiring or renovation.

Features

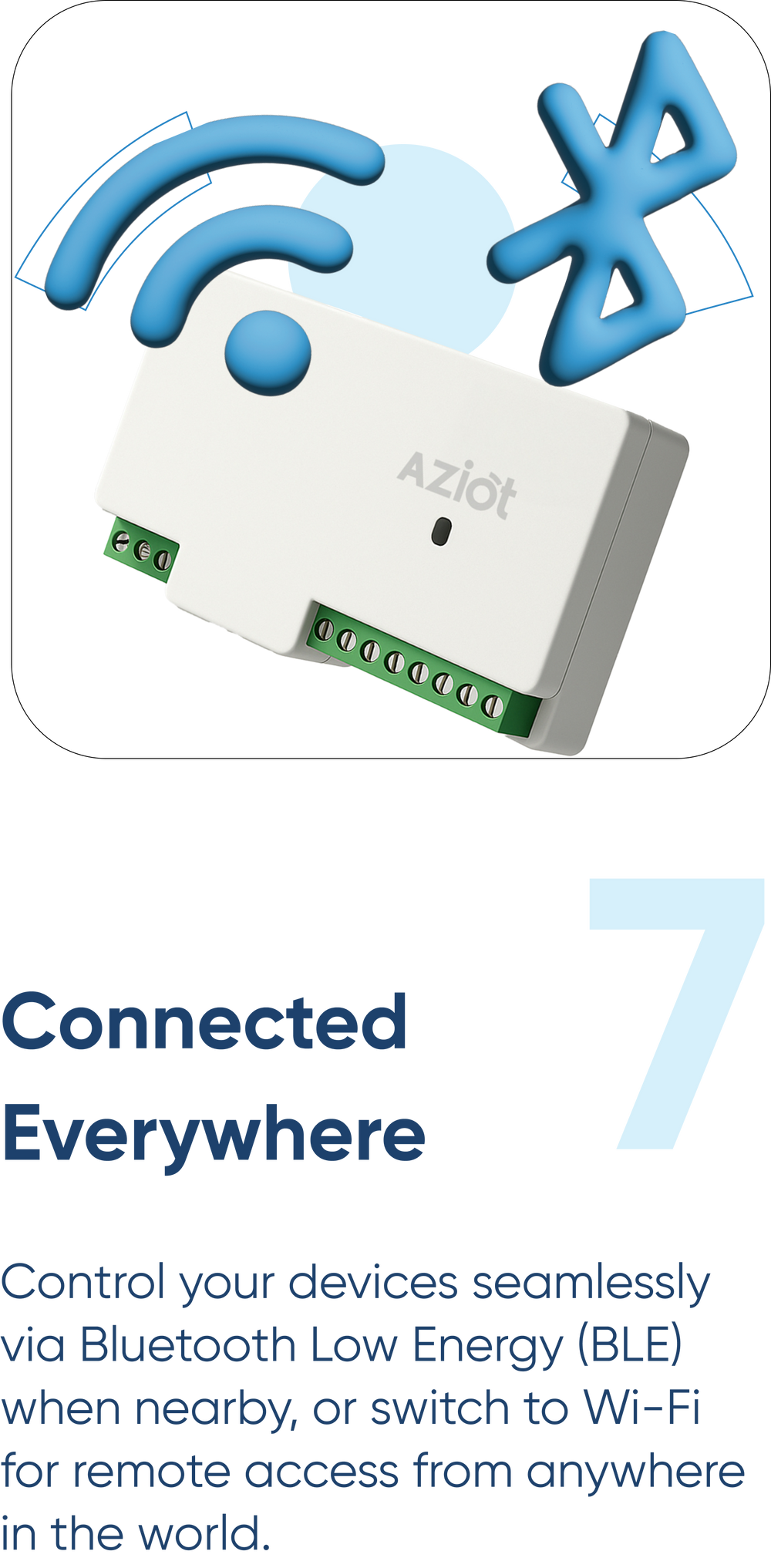

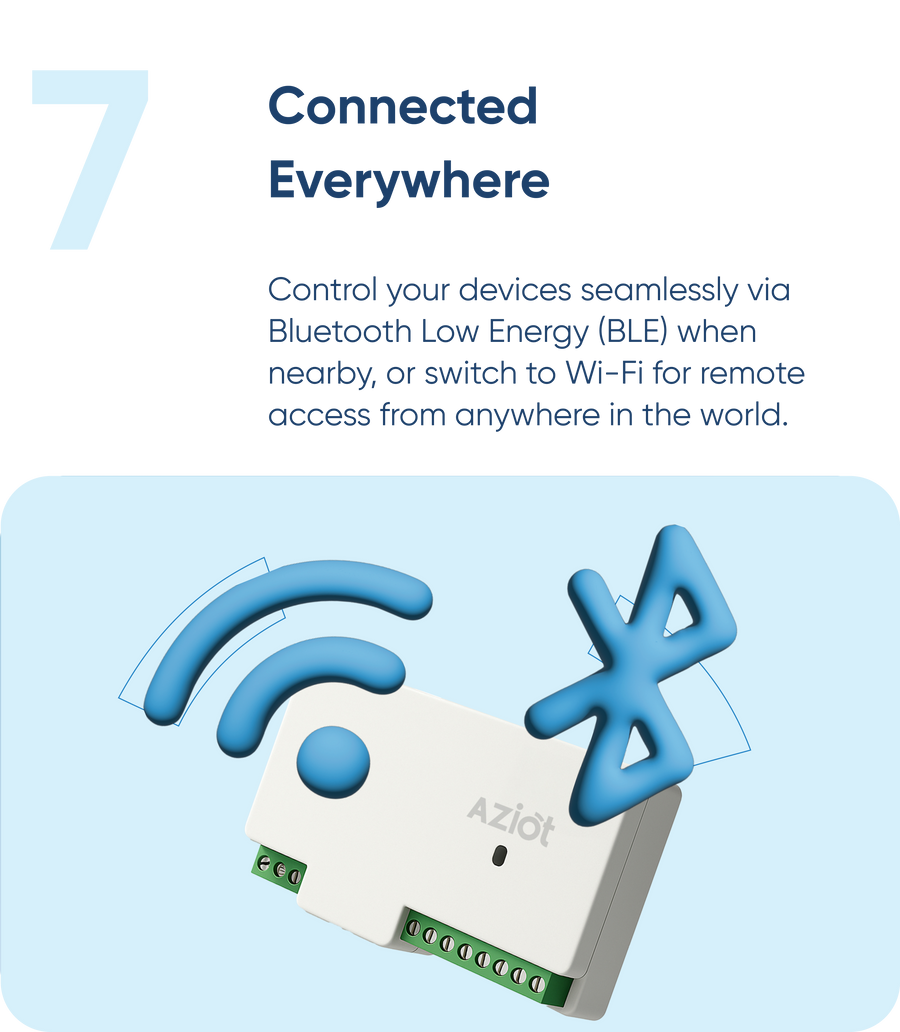

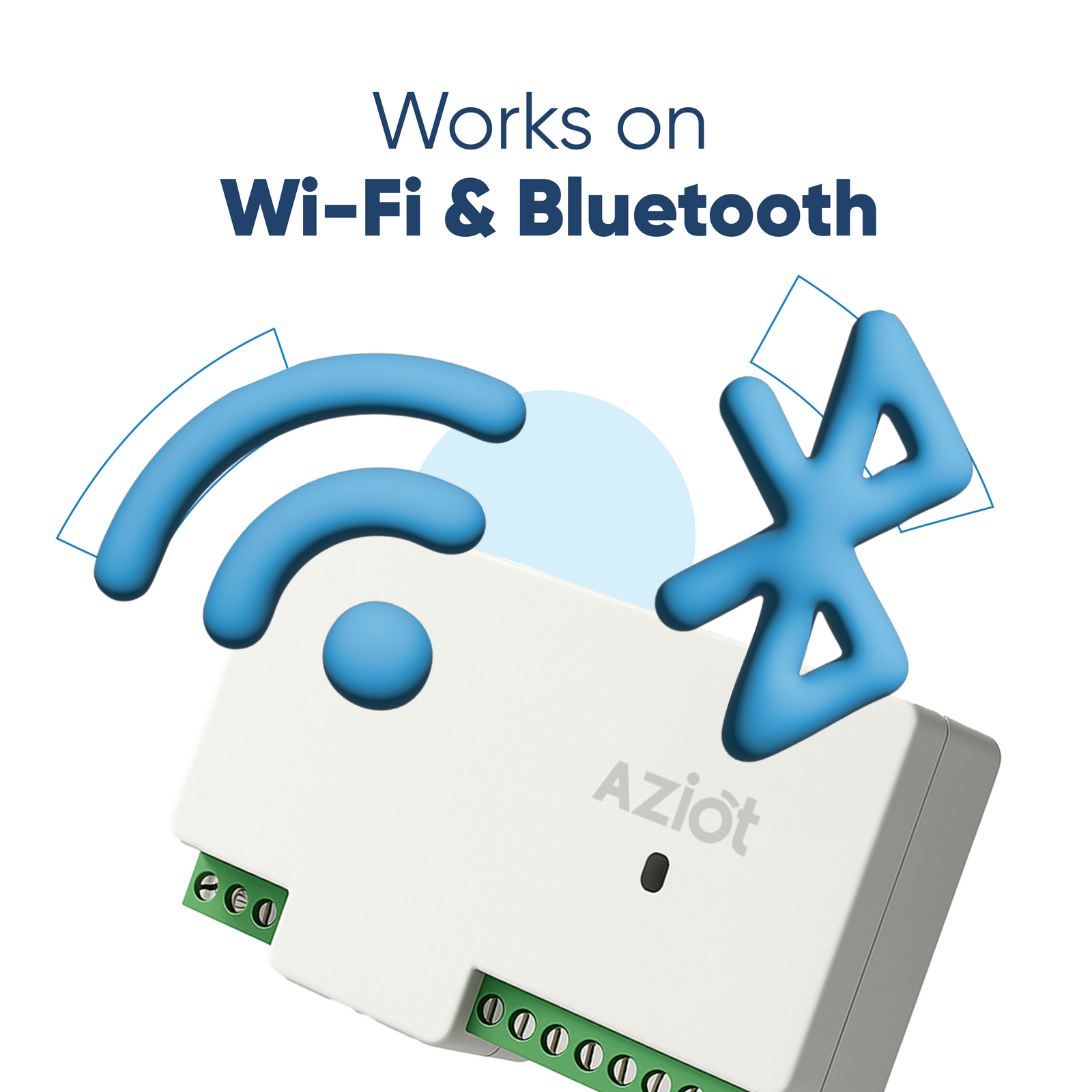

  • Dual WiFi & Bluetooth Connectivity – Enjoy flexible and reliable communication with seamless integration into your smart home network.
  • Smart Timer Function – Automate your lights and appliances by setting custom timers that fit your lifestyle and schedule.
  • Hands-Free Voice Control – Fully compatible with Amazon Alexa and Google Assistant for effortless voice-based operation.

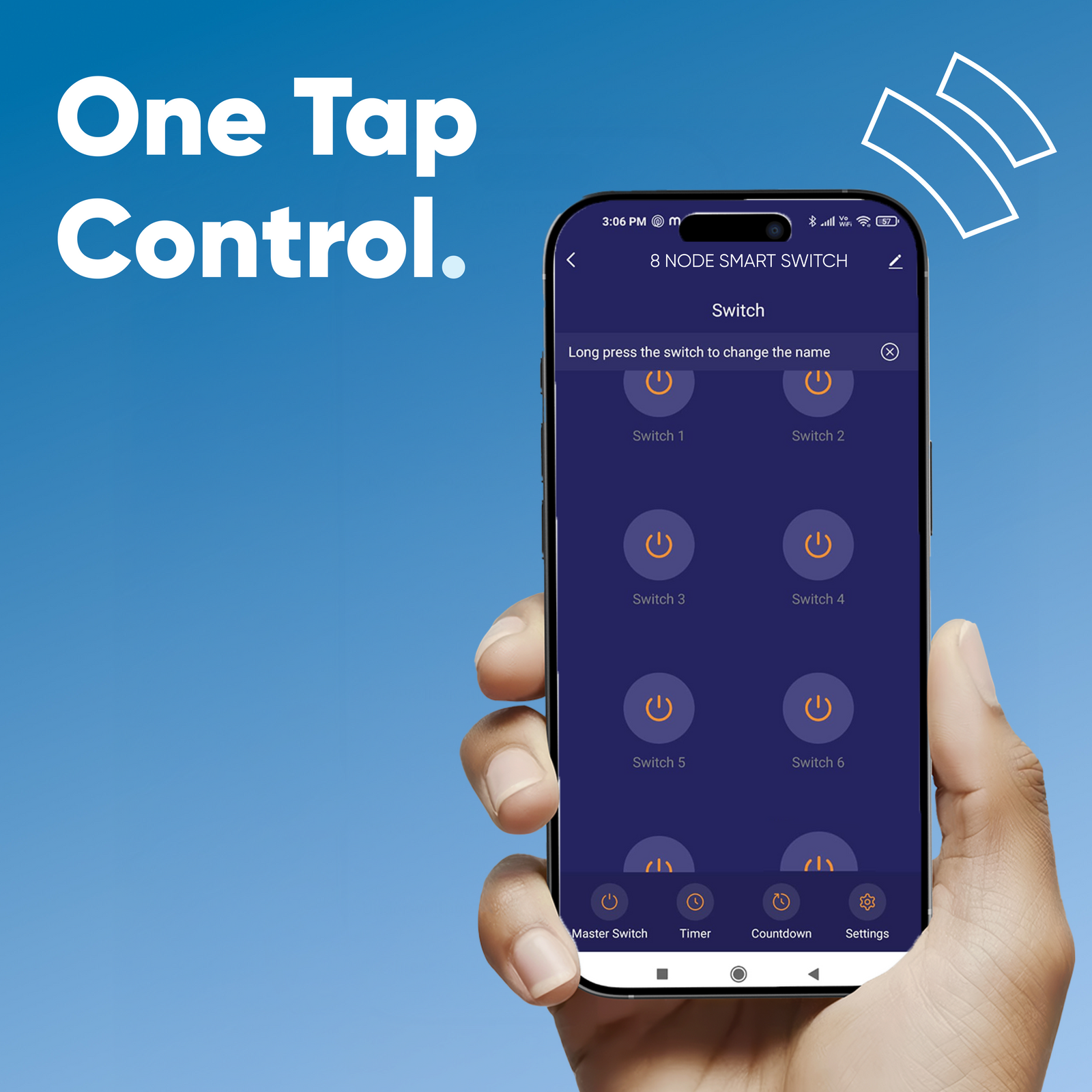

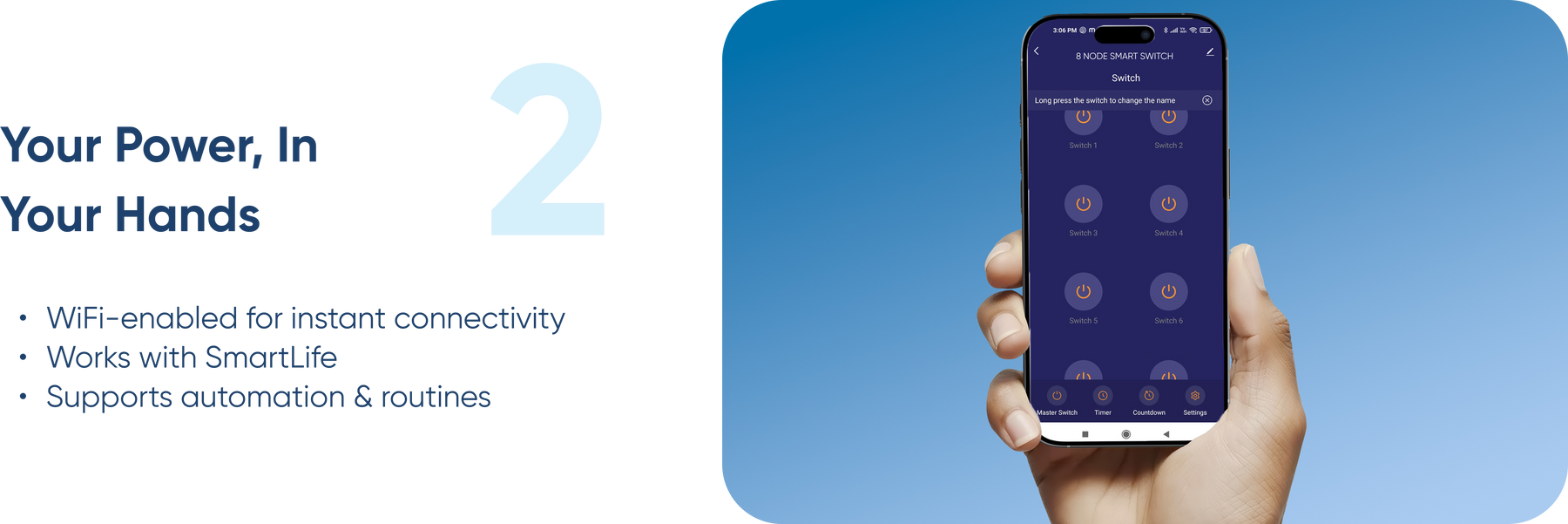

  • Intuitive App Control – Easily manage all connected devices through the user-friendly SmartLife mobile app, available on Android & iOS.
  • Energy-Saving Design – Built to optimize power usage, helping reduce electricity consumption and cut down on utility bills.
  • Anywhere Access – Monitor and control your devices remotely from anywhere using your smartphone and an internet connection.
  • Made in India – Proudly crafted in India, combining quality, reliability, and local innovation in one smart solution
Specifications

AC Specifications

Operating Input Power Range
150 VAC-270 VAC+-5%, 47-63 Hz

Maximum Load per Node

Resistive Loads: 500W / per Node
(Conventional Incandescent and Halogen
Light sources)

Resistive-Capacitive Loads: 100W /Per Node
(Flurorescent Tube Lamp, CFL and LED )

LED loads maximum combination is 5 numbers
per Node , irrespective of wattage.

Fixed Inductive Loads: 300 VA

General Specifications
Power Consumption when loads off < 0.2 W

Power Consumption when loads on <1.0 W

Temperature
Operation 0 C to +50 C.
Storage -20 C to +70 C.

Relative Humidity
Operating 5%RH to 95%RH Non-Condensing.
Storage 5%RH to 95%RHNon-Condensing

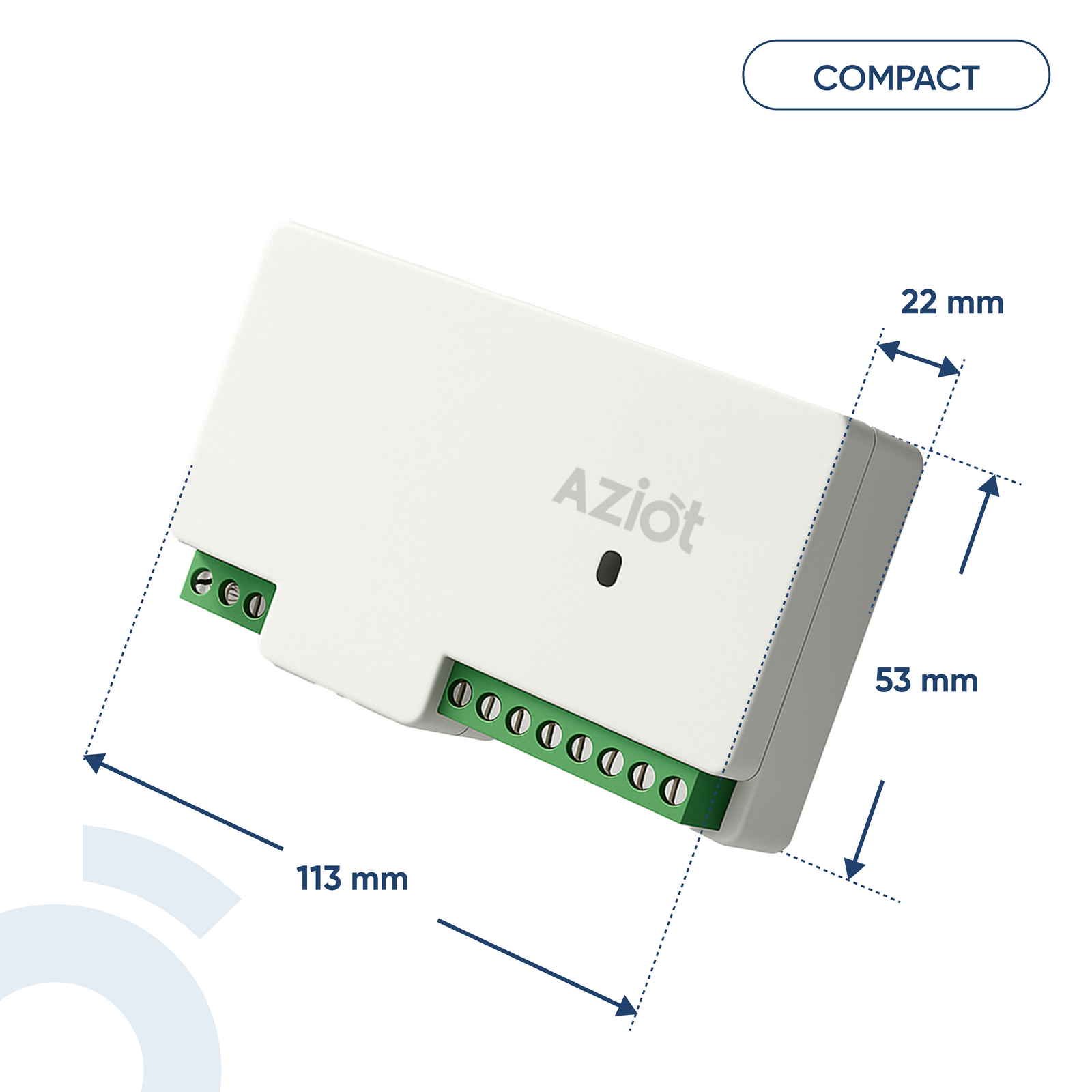

Dimensions -114 mm x 54.5 mm x 23 mm

RF Frequency - 2.4 GHz

What We Solve
Download User Manual
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
AZIOT 8 Node Smart Switch - WiFi/Bluetooth Communication - Made in India - Timer Function - Voice Command (8 Node)
A+ Square 1A+ Square 2A+ Square 3

Customer Reviews

Based on 7 reviews
86%
(6)
0%
(0)
14%
(1)
0%
(0)
0%
(0)
A
Anonymous
Osm

Osm

S
Shanid
Good Product i am using 20 nos 2,6,8 nodes in my home

Used aziot smart switch devoice since last 9months. Good Product i am using 20 nos 2,6,8 nodes in my home. controlling all with smart life and alexa app. in my opinion must update the device software/firmware to trigger alexa for create routine. Example: Create routine > smart home > then aziot device must be list there for select when event happens. So we can set When On Some one press first floor room bell switch > alexa will say first floor bedroom calling... and much more automations will possible by this trigger eligibility.

Y
Yesh
Prize so High

Bro decrace the price make a offer of this product in your website or amazon

User picture
A
Amazon Customer
Best

Very nice product

S
Souvik
Smart, Reliable & Worth Every Rupee!

Been using this for a while really happy with it. Works well with the app and Alexa. Great value for money for an 8 node smart switch.

User picture
12

Real customer stories

4.82 ★ (1439)
Verified

FAQs

How to install the device?

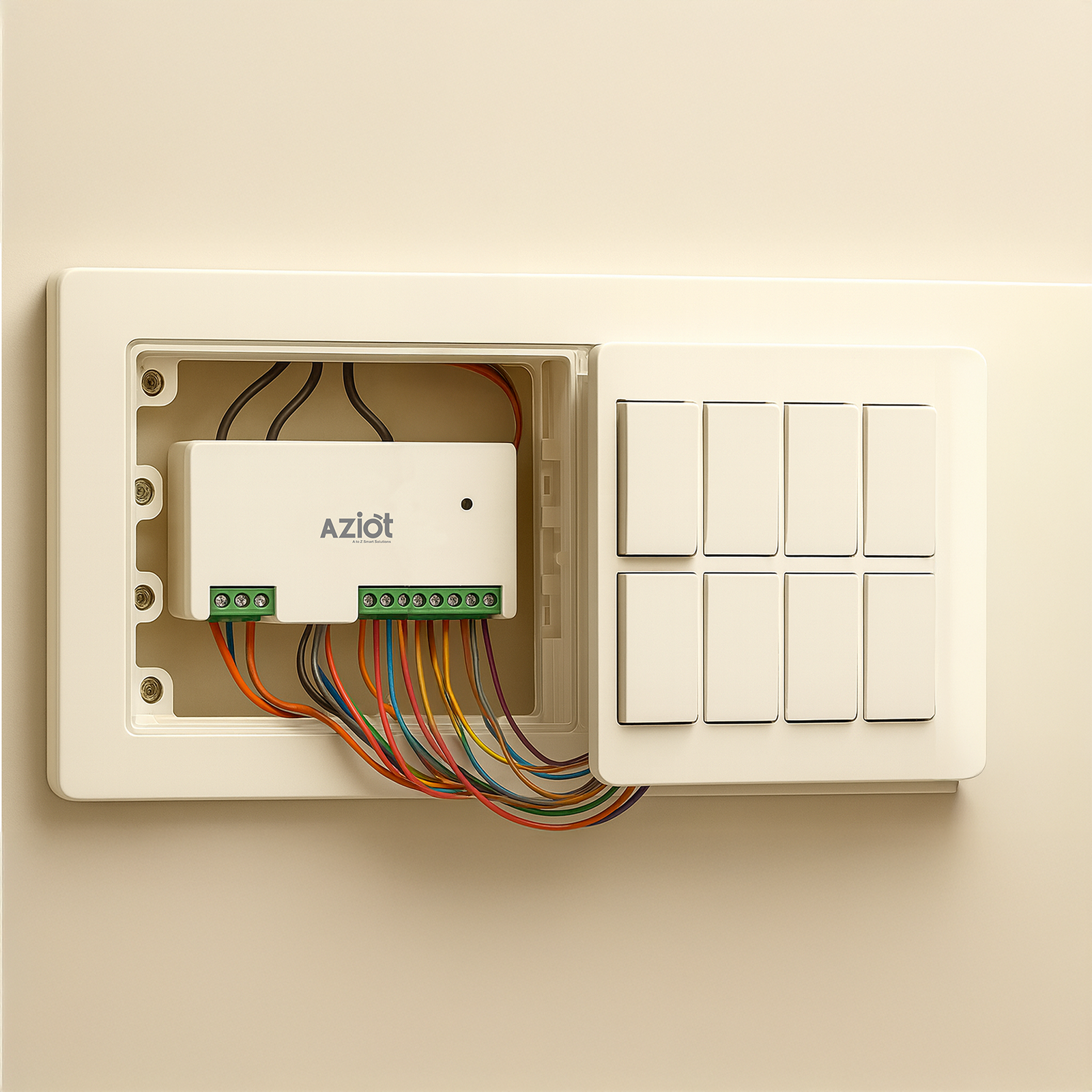

The device easily fits behind your existing switch plate within the gang box. Installation requires basic electrical knowledge and can be done by you or a local electrician. For step-by-step guidance, watch our installation videos on YouTube.
Aziot@youtube: https://www.youtube.com/channel/UCxo8tpr7D2hA_XMOJ6kwBdw

  • 1 Node: Supports up to 16 amps

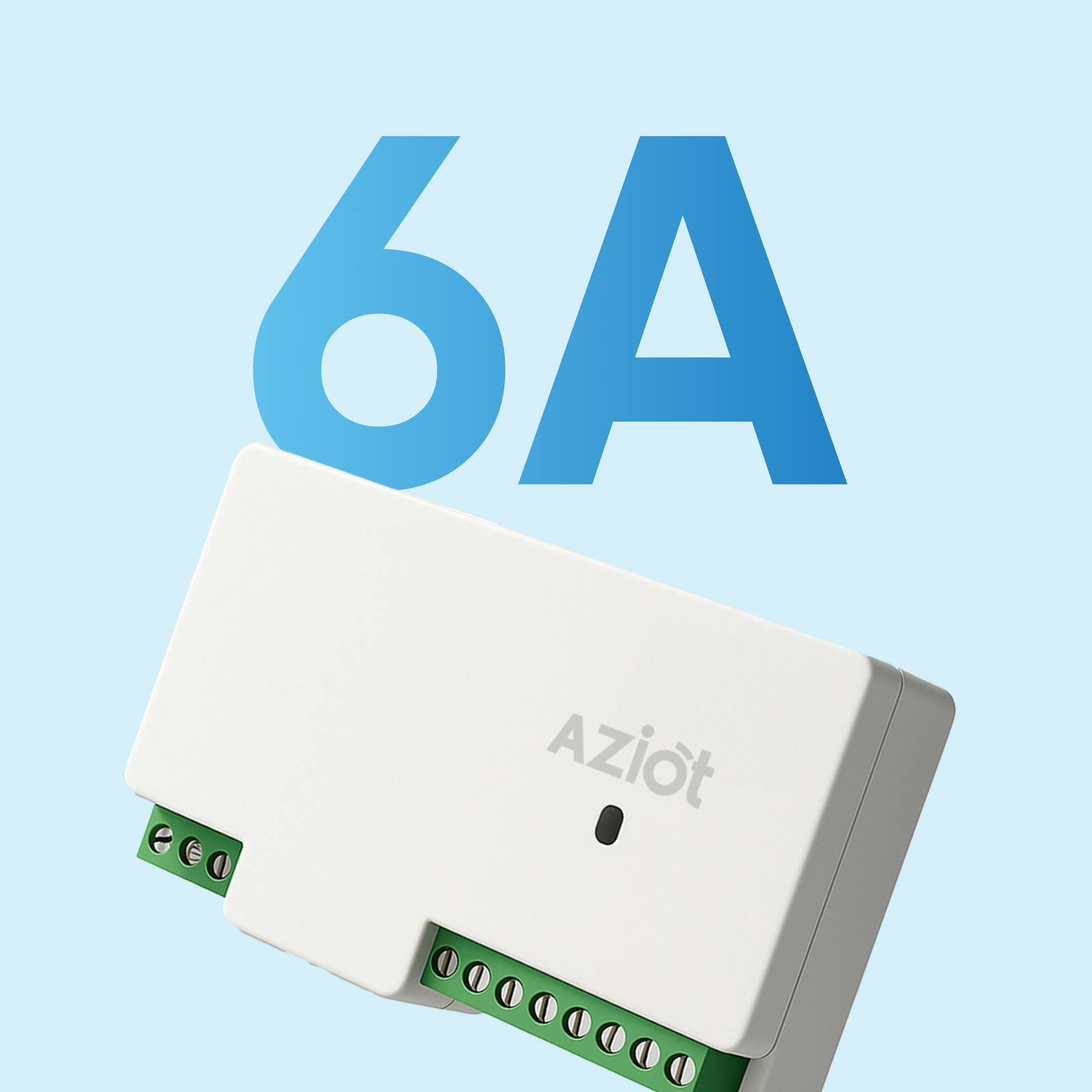

  • 2 Node: Supports up to 6 amps
  • 4 Node: Supports up to 6 amps
  • 4 Node Mini: Supports up to 7 amps
  • 3+1 Node: Supports up to 6 amps
  • Circuit Breaker with Metering: Supports up to 16 amps
  • Circuit Breaker without Metering: Supports up to 16 amps

1 Node (16 amps): Suitable for heavy-duty appliances such as ACs, coolers, and similar high-power devices.

Devices with 10 amps load capacity: Ideal for lighting automation and moderate-power appliances.

3+1 Node: Not compatible with BLDC fans.

Circuit Breakers (with and without metering): Designed for heavy-duty appliances requiring up to 16 amps.

If the device appears offline:

  • It could be due to a weak WiFi signal.
  • Restart your router to re-establish the connection.
  • Ensure the device is within range of your WiFi network.

Yes, you can control the device remotely via the smartphone app, no matter where you are in the world, as long as you have an active internet connection.

The 2.4GHz band is a standard WiFi frequency used for most smart devices. Ensure your router supports this band for seamless compatibility with the Touch Modular Switch.

The device is fully compatible with Alexa, Siri, and Google Home for voice control. Follow these steps for configuration:

  1. Open the respective app (Alexa, Google Home or Apple HomeKit).
  2. Add the device using the app’s instructions.
  3. Link your account and complete the setup.
    For more details, refer to our YouTube tutorial.

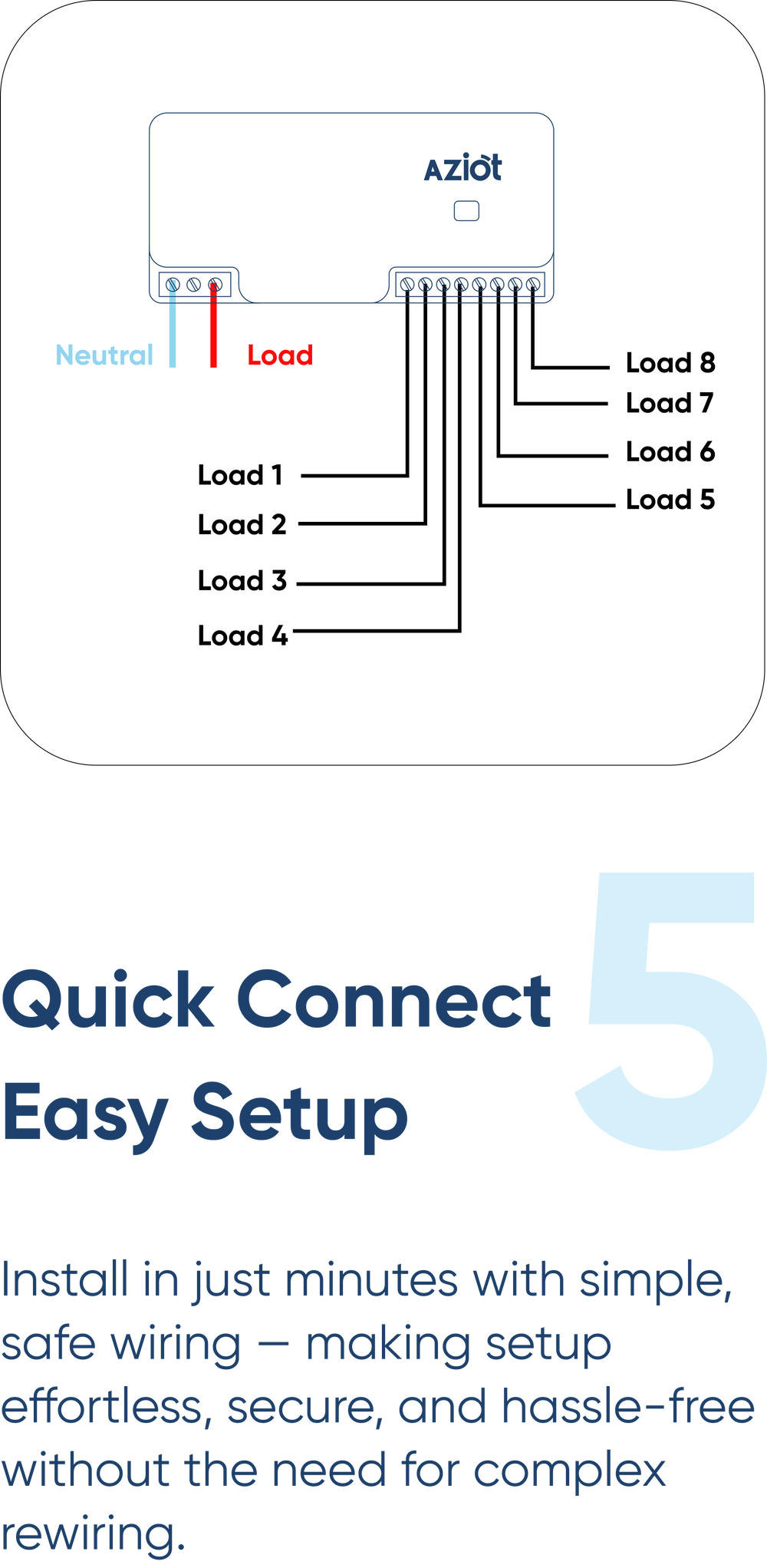

    4 Node

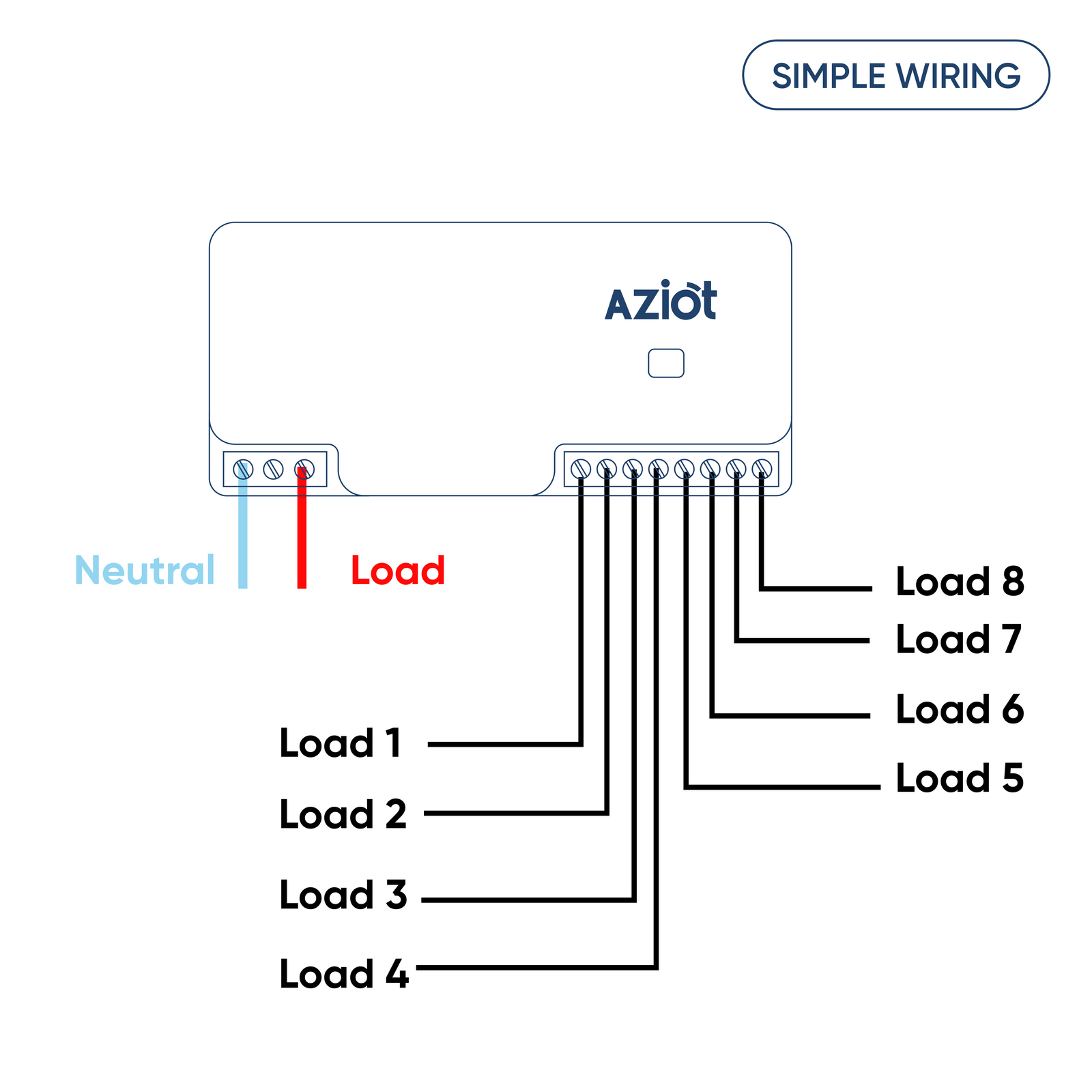

Black wire: Typically the Neutral wire.

Live wire (Input): The main live input wire, connecting to the copper terminal between the toggles, is usually red or brown.

Output Load Wires: These wires connect to the individual toggle switches and carry the current to the load (e.g., lights, fans). They can be red, brown or blue.

For best results and safety, it’s recommended to have an experienced electrician handle the installation, as they will have a better understanding of the wiring process.

To reconfigure:

  1. Restart the main MCB.
  2. Toggle the switch on and off 7–8 times until the red LED starts blinking.
    This indicates the device is ready for reconfiguration.
