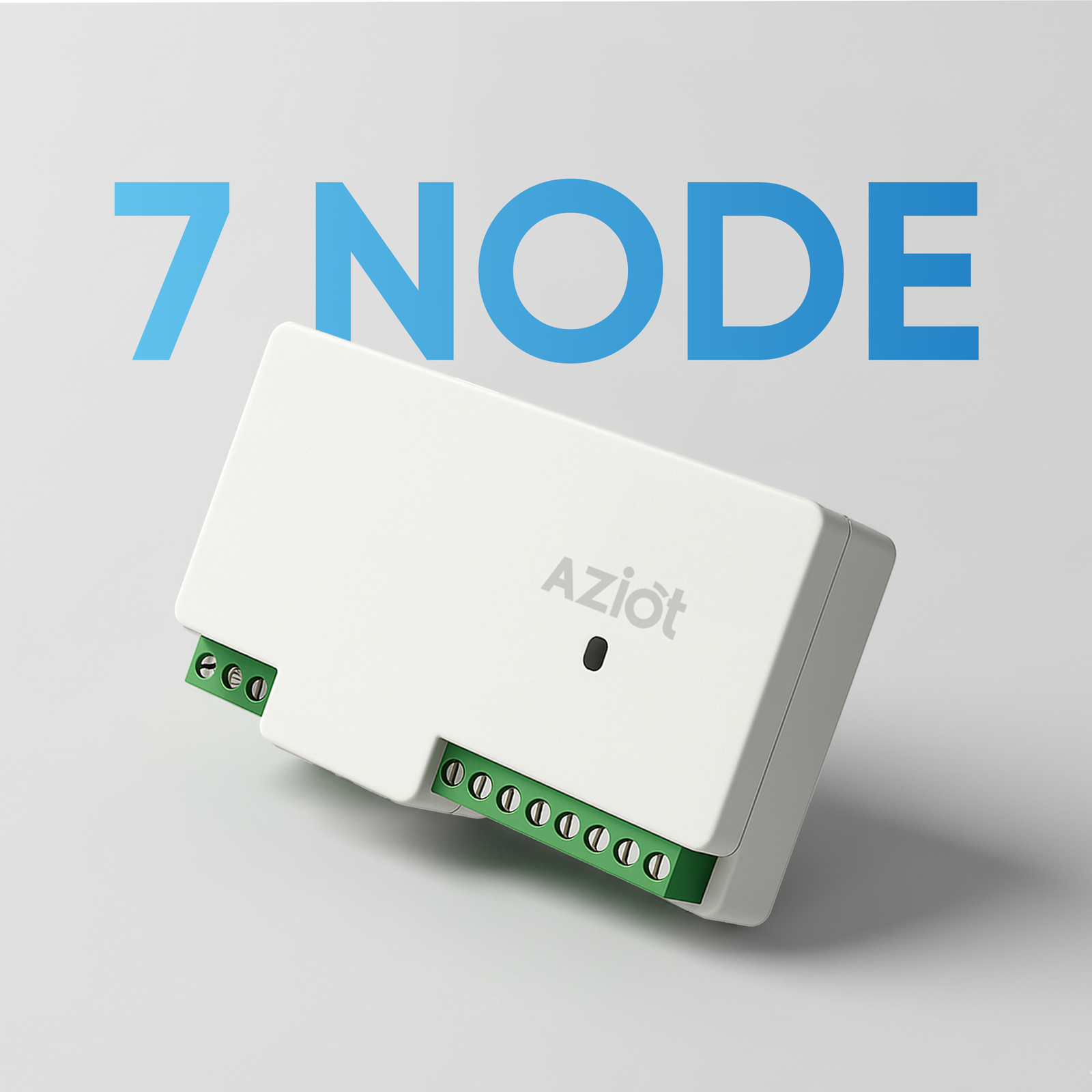

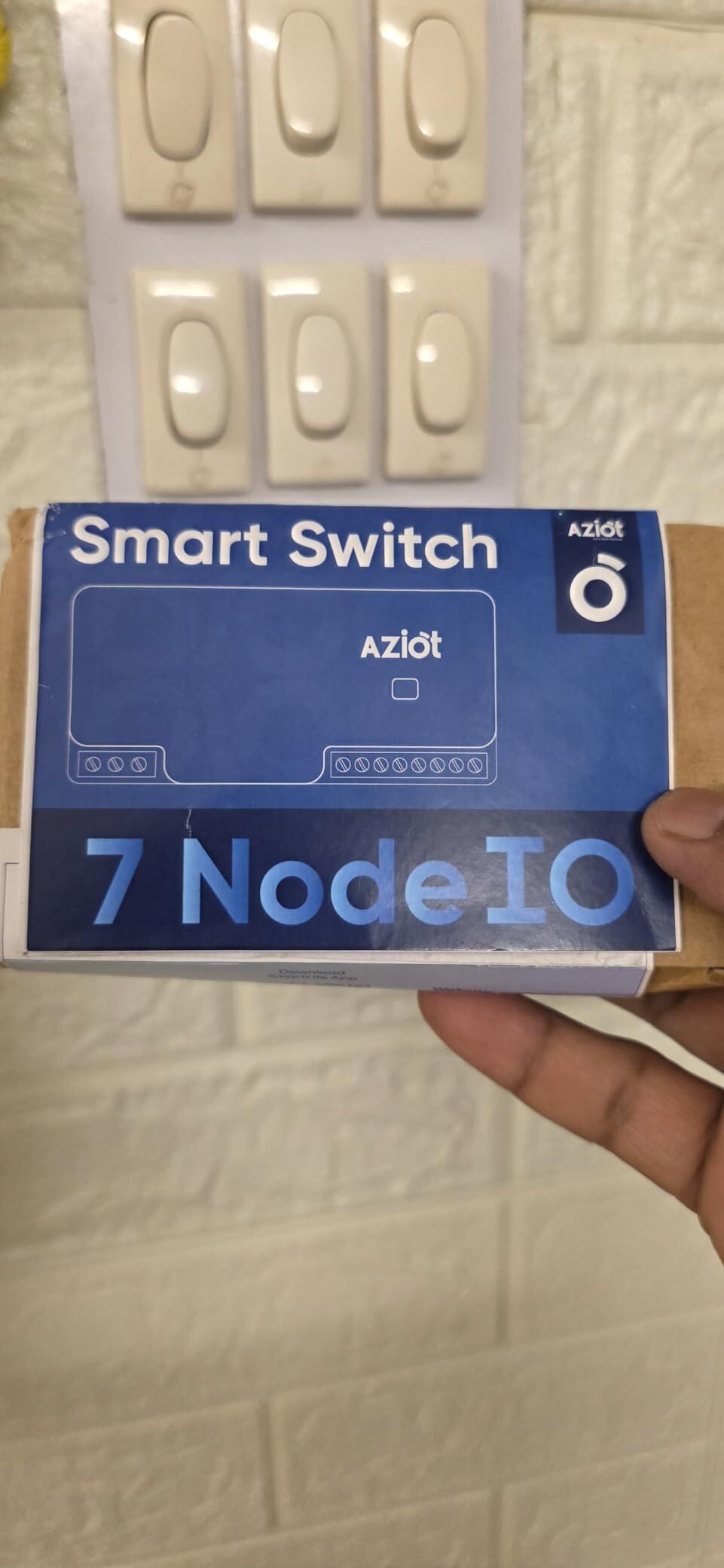

AZIOT 7 Node IO Smart Switch | 6 Normal Loads + 1 x 16A Heavy Load | WiFi + Bluetooth | Dual Power Input (Inverter & Raw) | Timer Function | Voice Control with Alexa & Google | Made in India

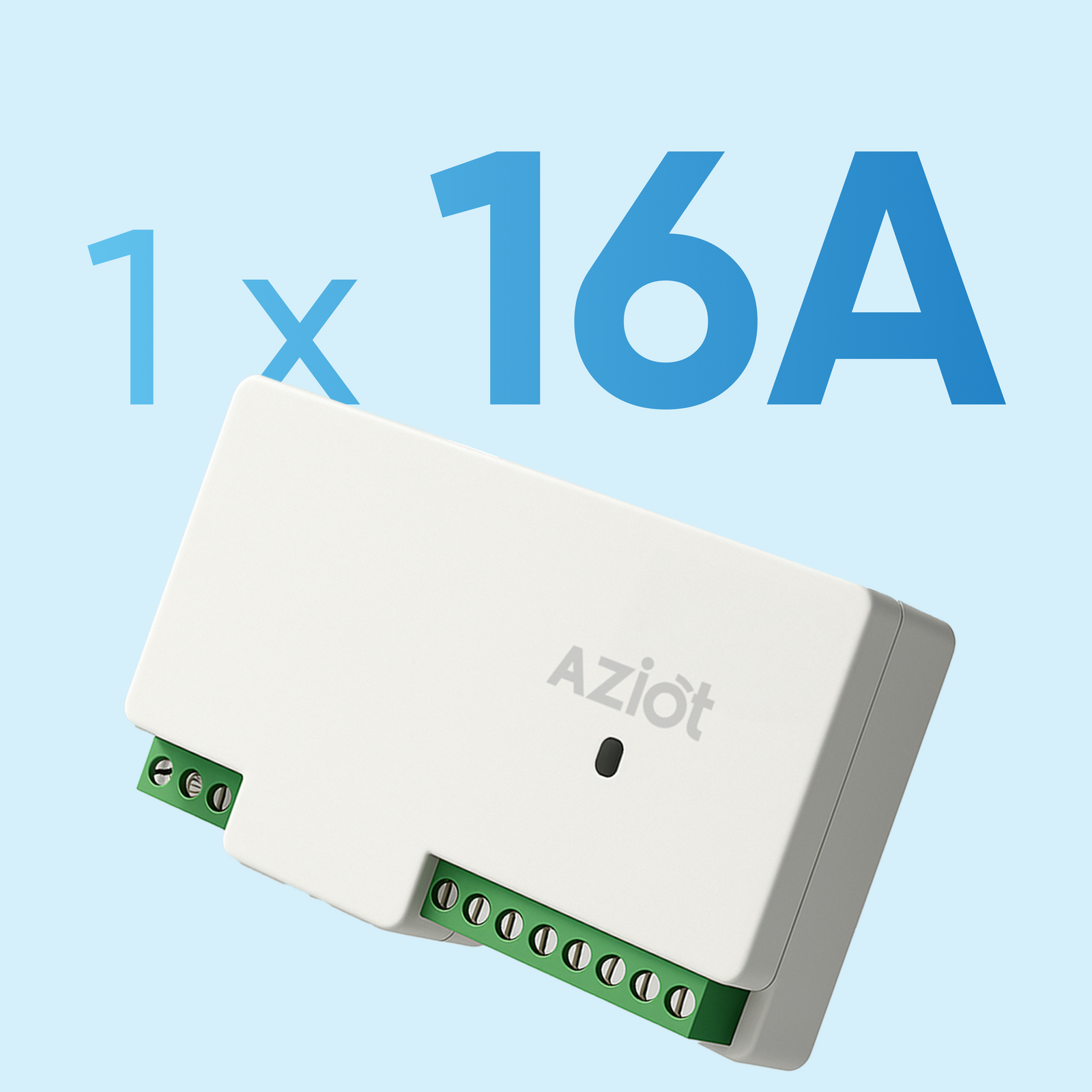

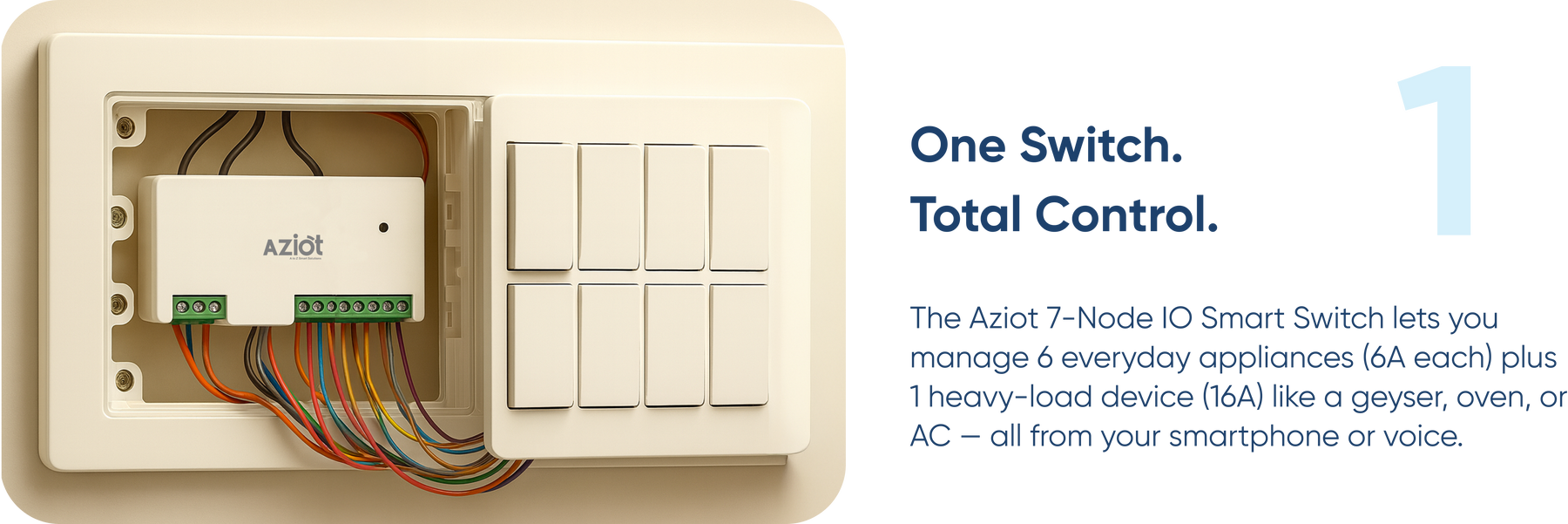

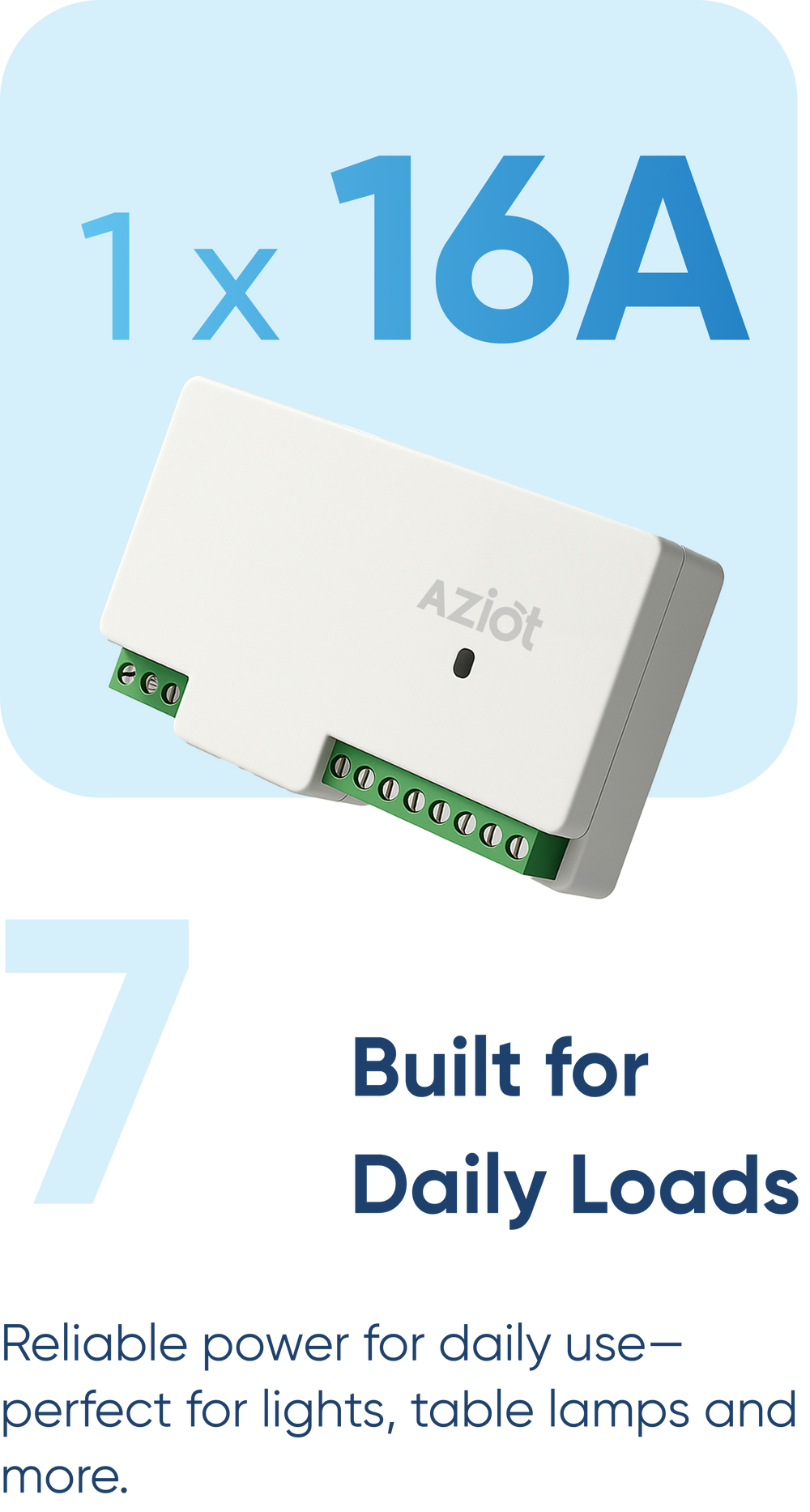

• 7 Independent Outputs: Control up to 7 different devices from a single modular unit. This includes 6 standard 6A outputs for regular devices and 1 high-load 16A output for energy-intensive appliances like geysers, pumps, or air conditioners.

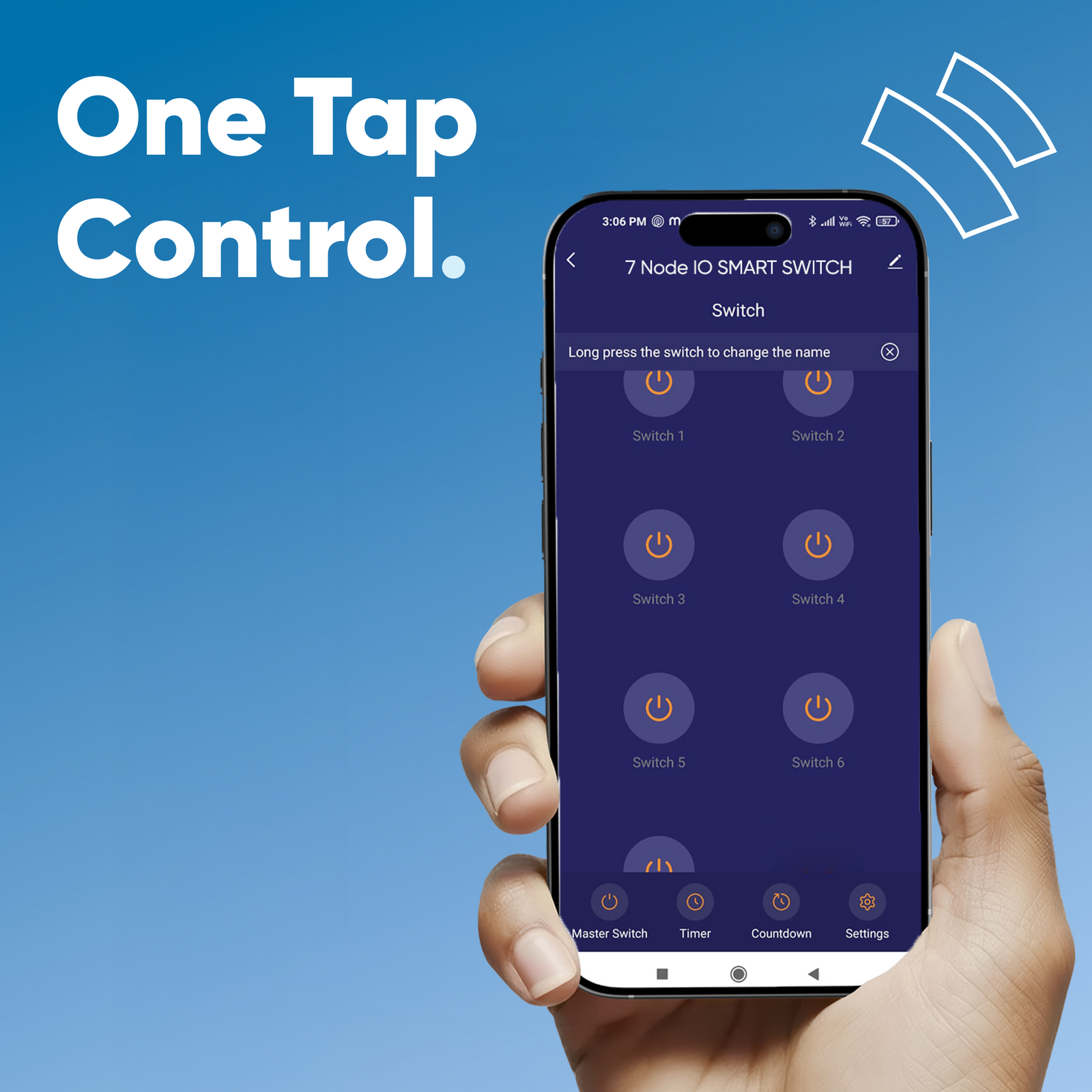

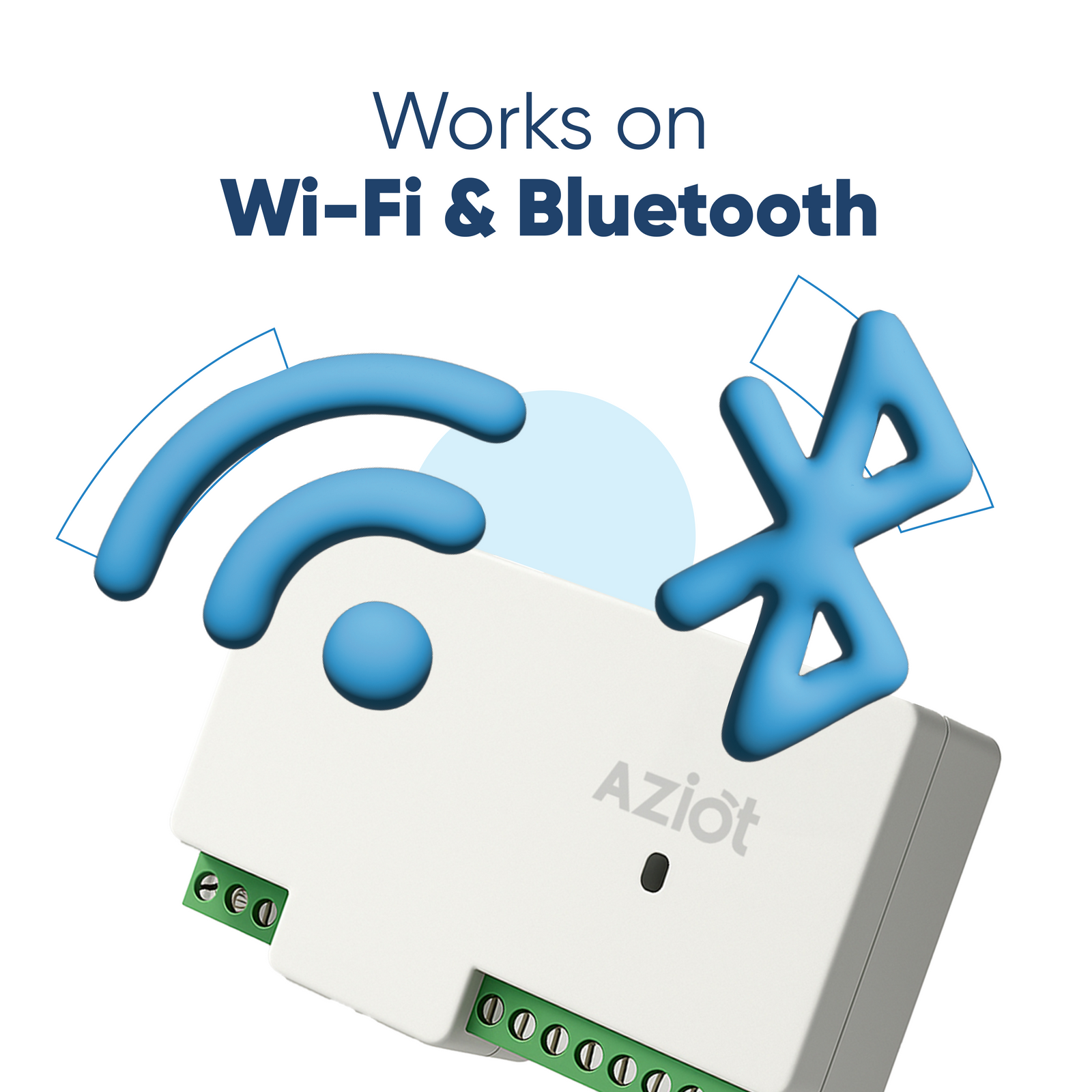

• WiFi + Bluetooth Dual Connectivity: Operate your switch using WiFi for cloud-based control or fallback to Bluetooth when there's no internet—ensuring uninterrupted operation at all times. Manage devices through the Smart Life or Tuya app, compatible with both Android and iOS.

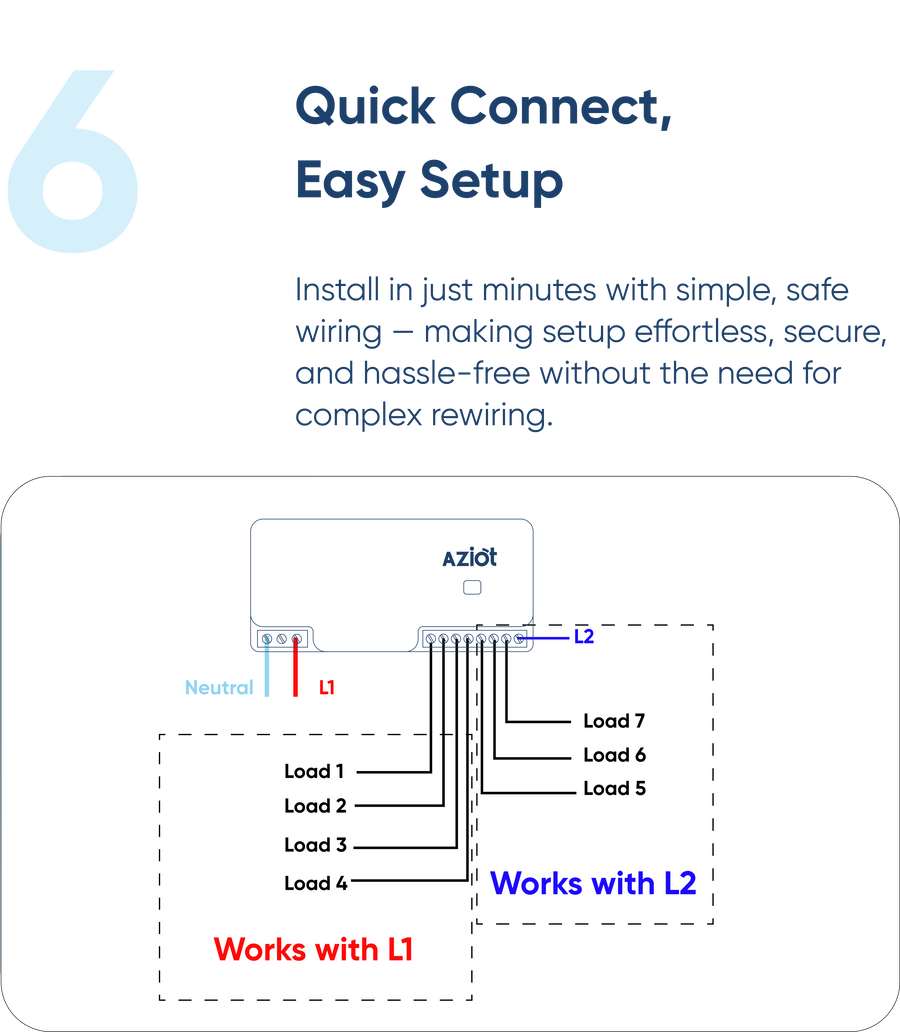

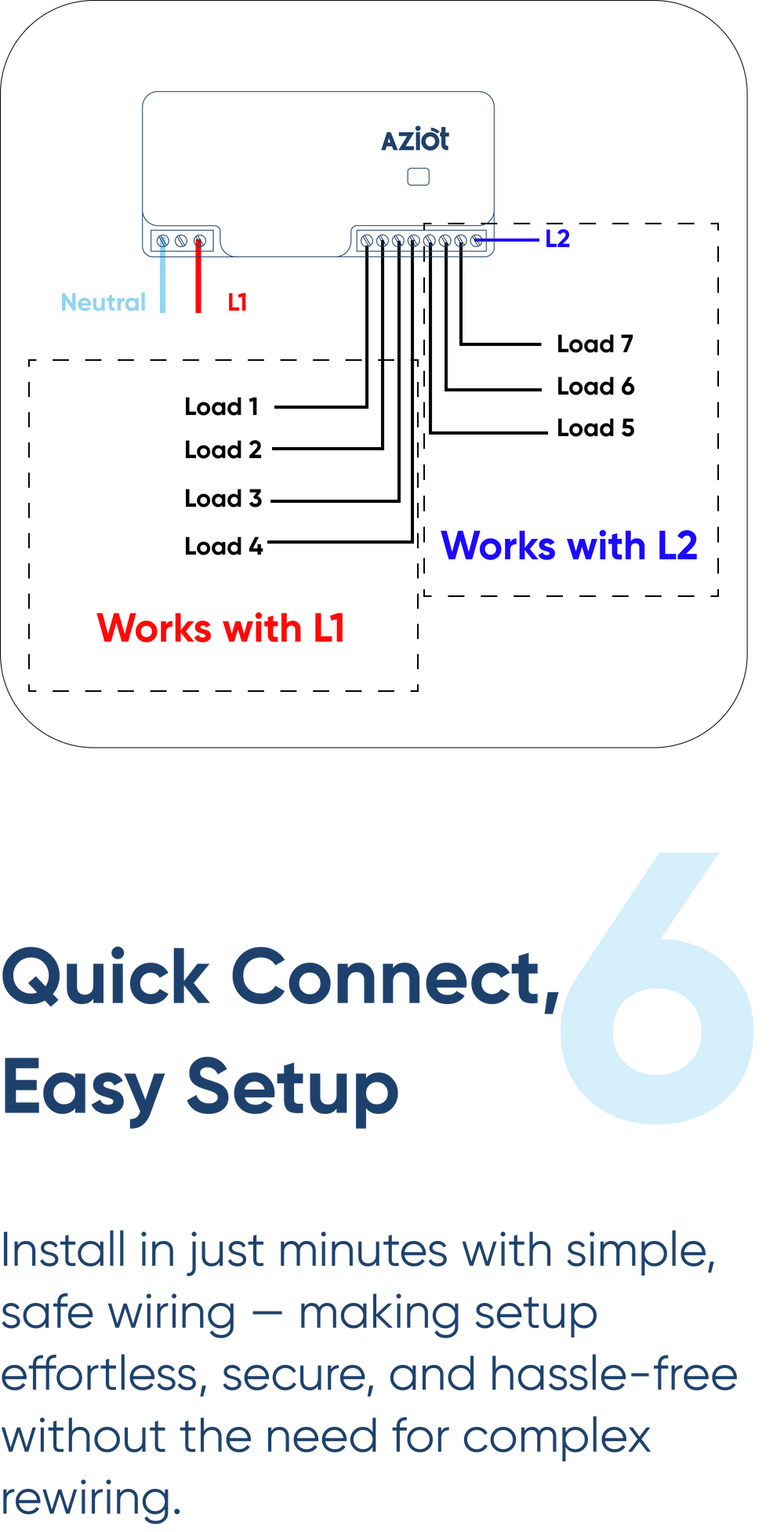

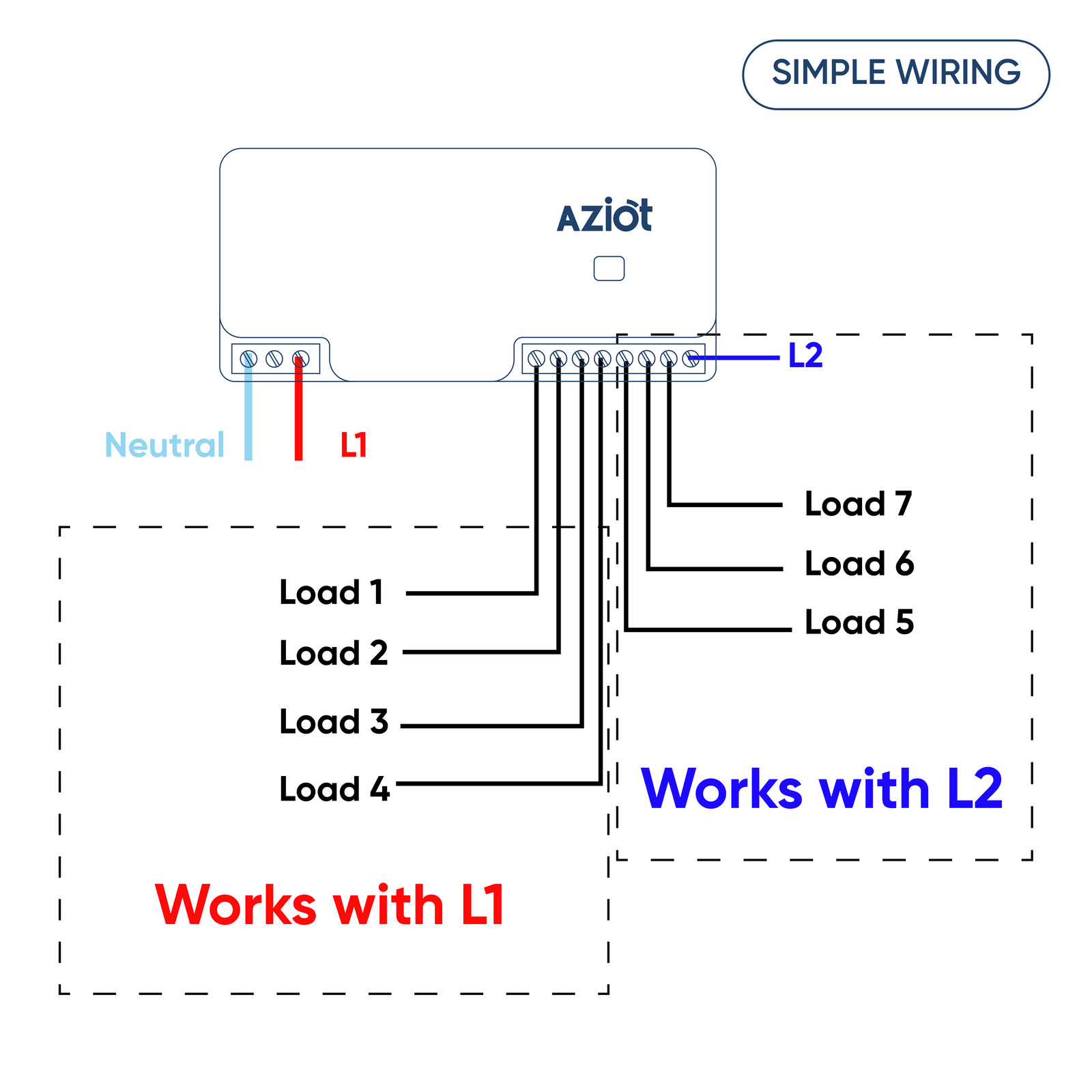

• Dual Power Input Support (Inverter + Raw Power): Designed for Indian power conditions, the switch supports input from both mainline (raw power) and inverter supply, making it ideal for ensuring smooth functionality during power outages or load shedding.
• Voice Assistant Compatibility: Go hands-free with seamless integration with Amazon Alexa and Google Assistant. Just speak a command to switch on lights, activate appliances, or turn things off—no app or switch touch needed.
• Timer & Scheduling Functionality: Schedule your appliances to turn on/off at specific times with built-in timer features. Great for saving energy, improving safety, and automating daily routines like lighting

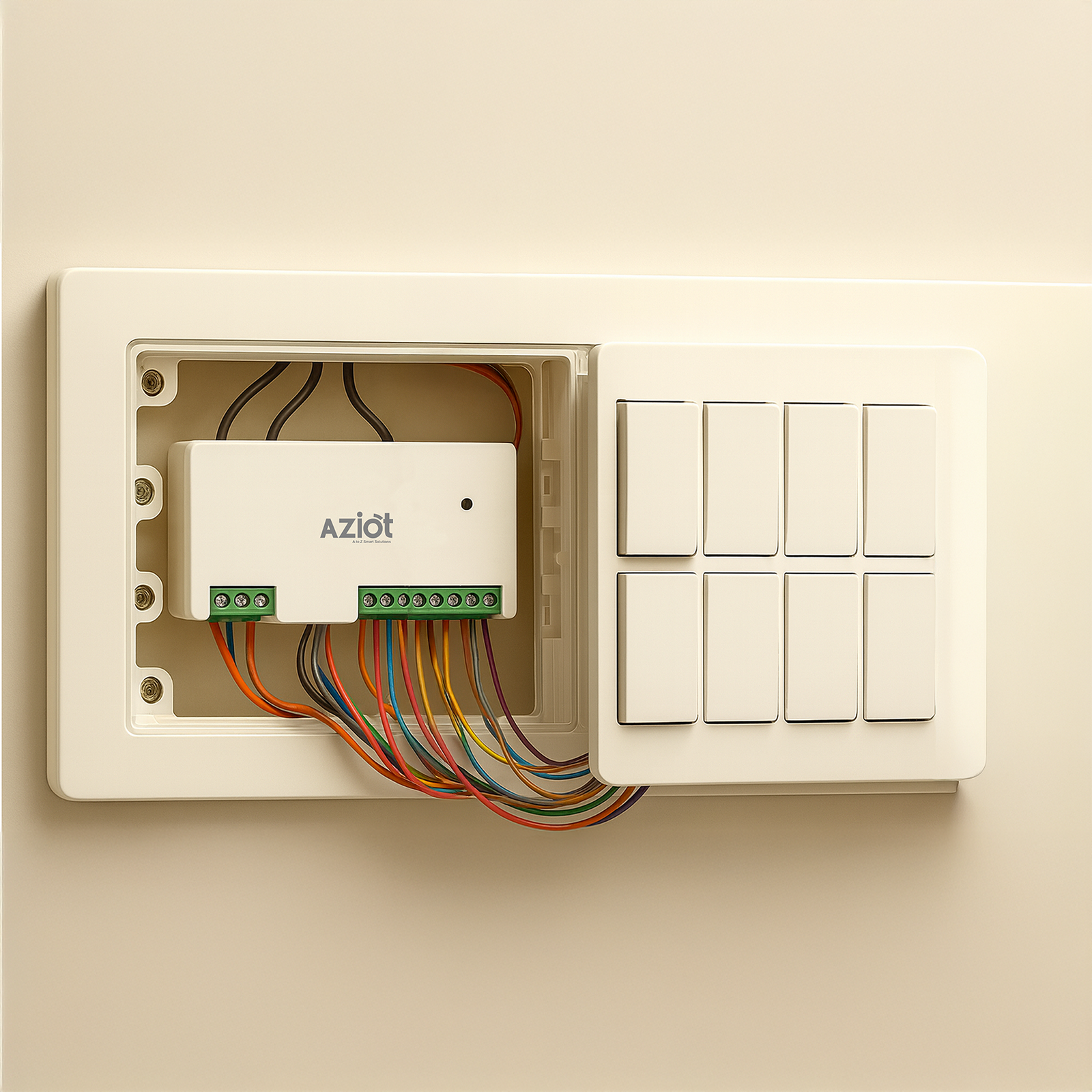

• Modular Design - Easy Integration: Compact and modular, this switch blends into any standard switchboard layout. it ensures long-lasting performance and reliability, while its Made in India origin ensures support tailored to Indian usage and installation standards.

AC Specifications

Operating Input Power Range
100 VAC–240 VAC ±5%, 47–63 Hz

Maximum Load per Node
For Output 7
Resistive Loads: 16 A
LED LIGHT: 500W or 5 N

LED STRIP/PROFILE: 500W

Fixed Inductive Loads: 1000VA

For Output 1-6
Resistive Loads: 500 W/ CH

LED LIGHT : 100W Or 5 N/CH
(Whichever Is Higher )

LED STRIP/PROFILE : 100W
(Max 1 Number per O/P)

Fixed Inductive Loads: 300VA

General Specifications

Power Consumption when loads on: <0.2 W

Power Consumption when loads off: <1.0 W

Temperature:
Operation: 0 °C to +50 °C
Storage: –20 °C to +70 °C

Relative Humidity:
Operating: 5% RH to 95% RH Non-Condensing
Storage: 5% RH to 95% RH Non-Condensing

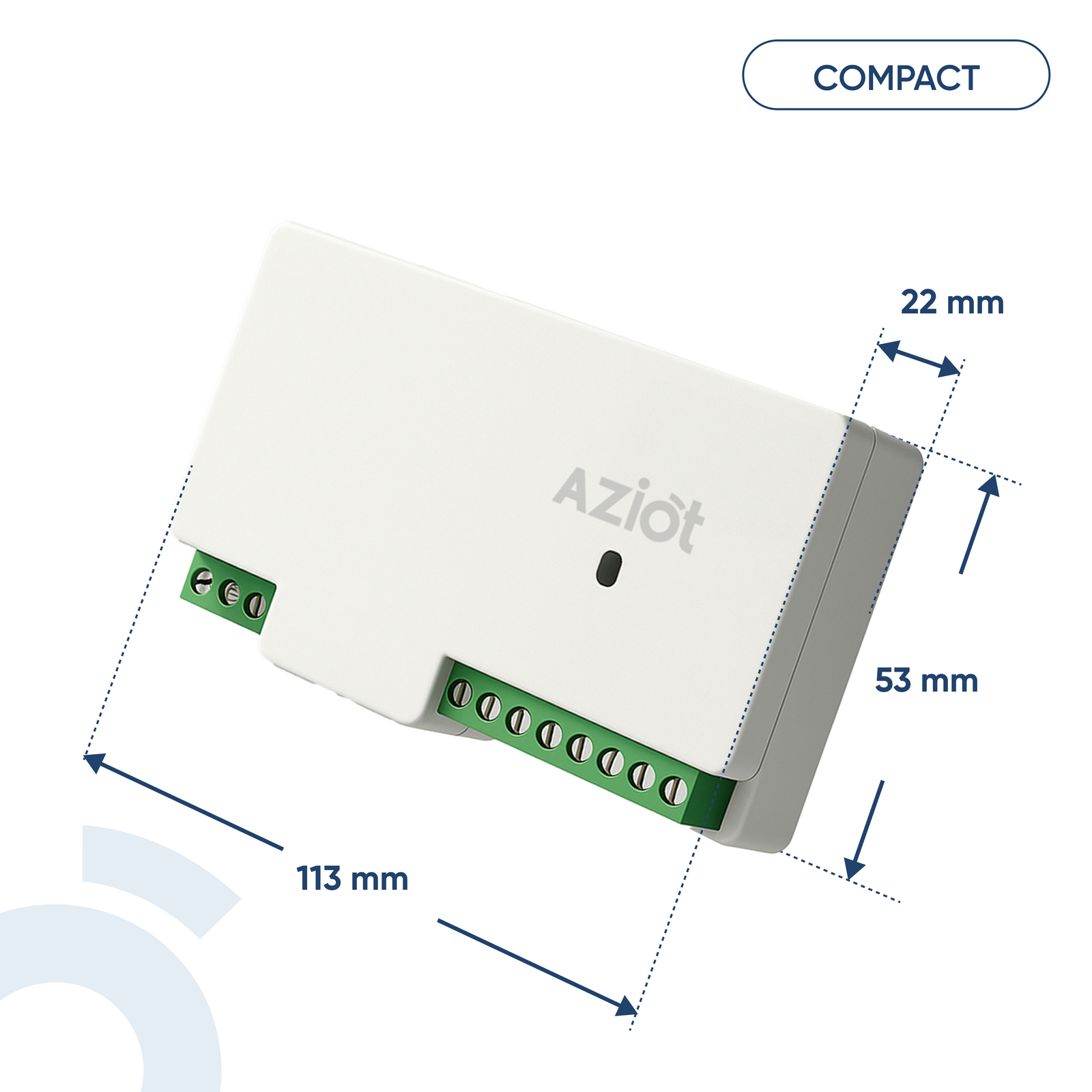

Dimensions: - 114 mm × 54.5 mm × 23 mm

RF Frequency: 2.4 GHz
