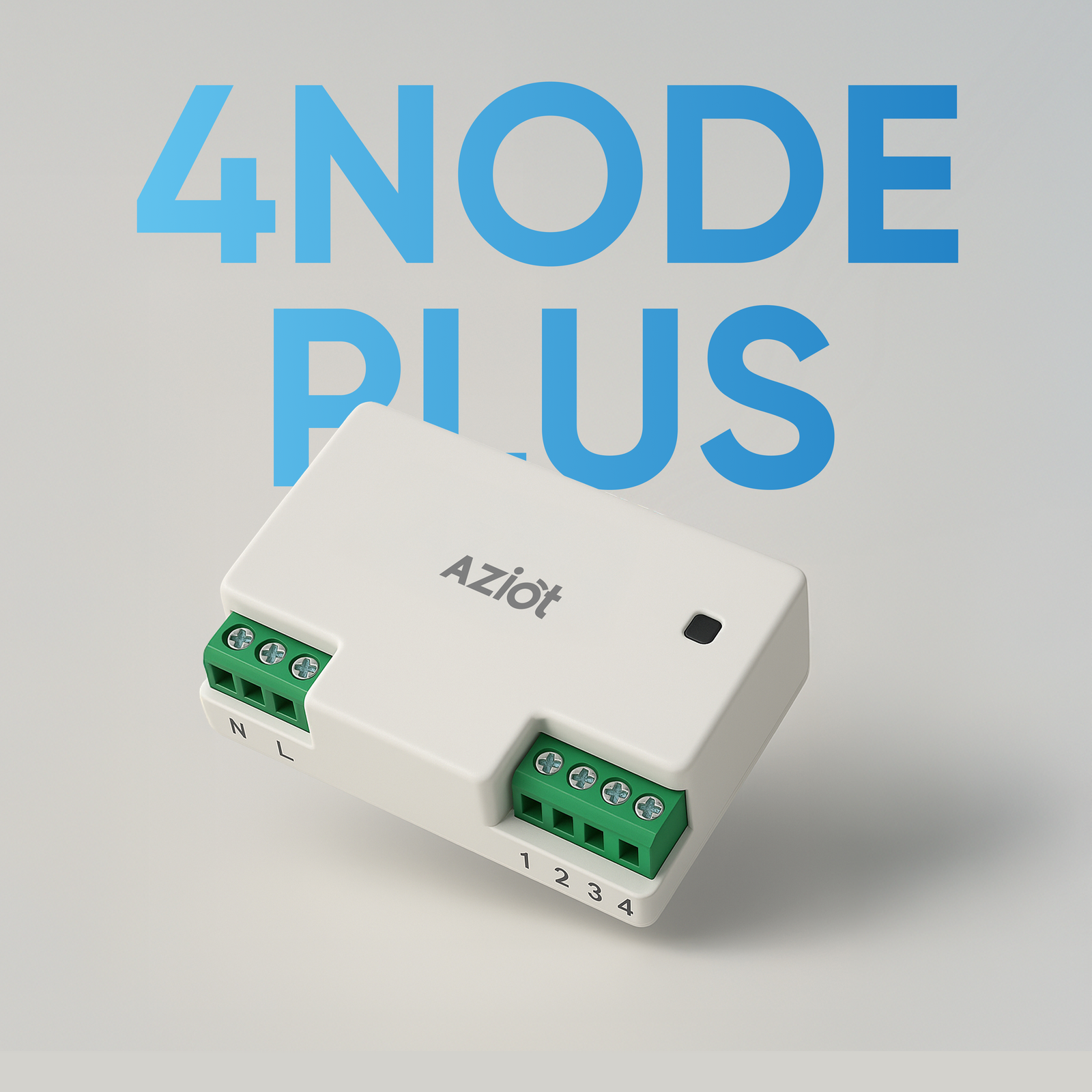

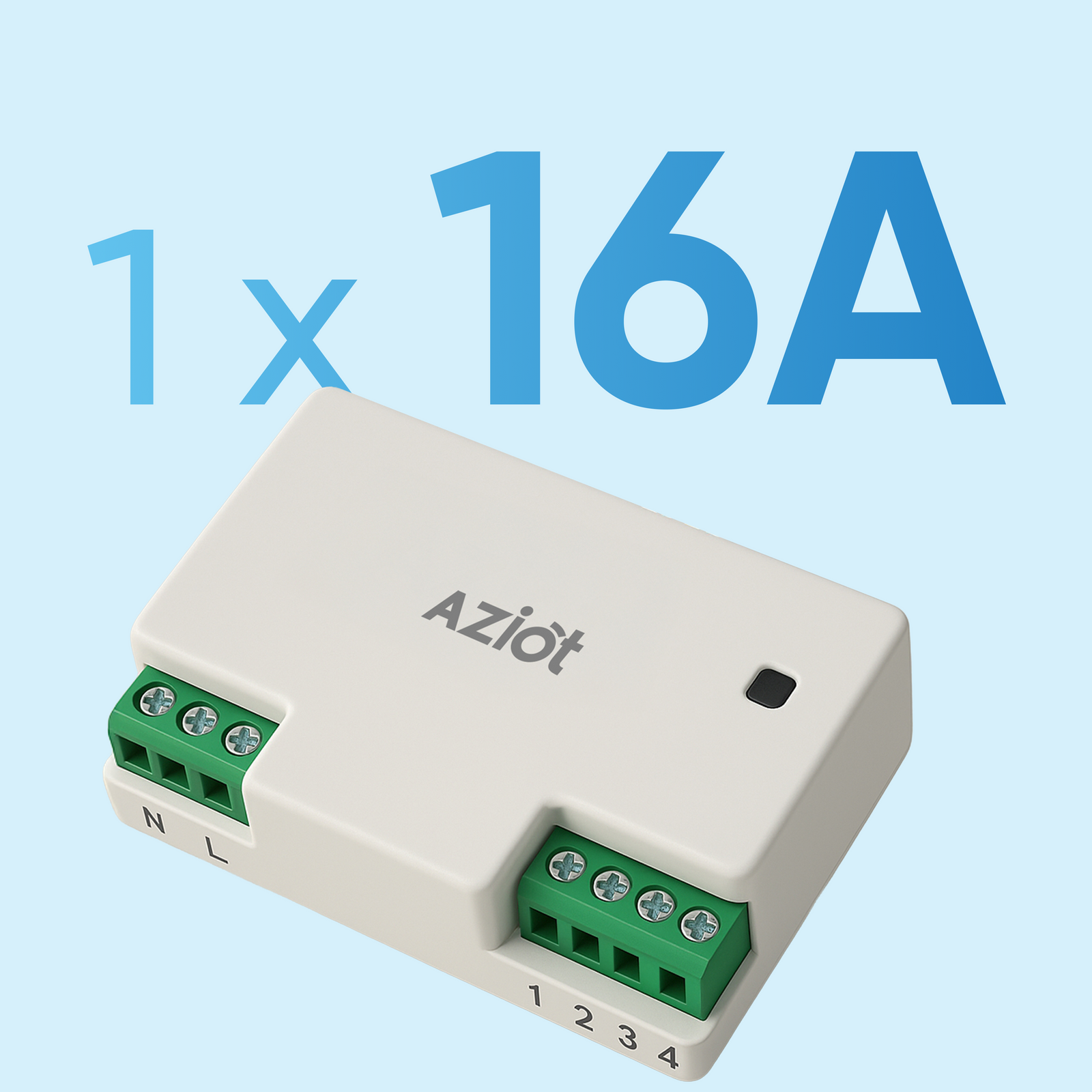

AZIOT 4 Node Plus Smart Switch (1 x 16A Load)

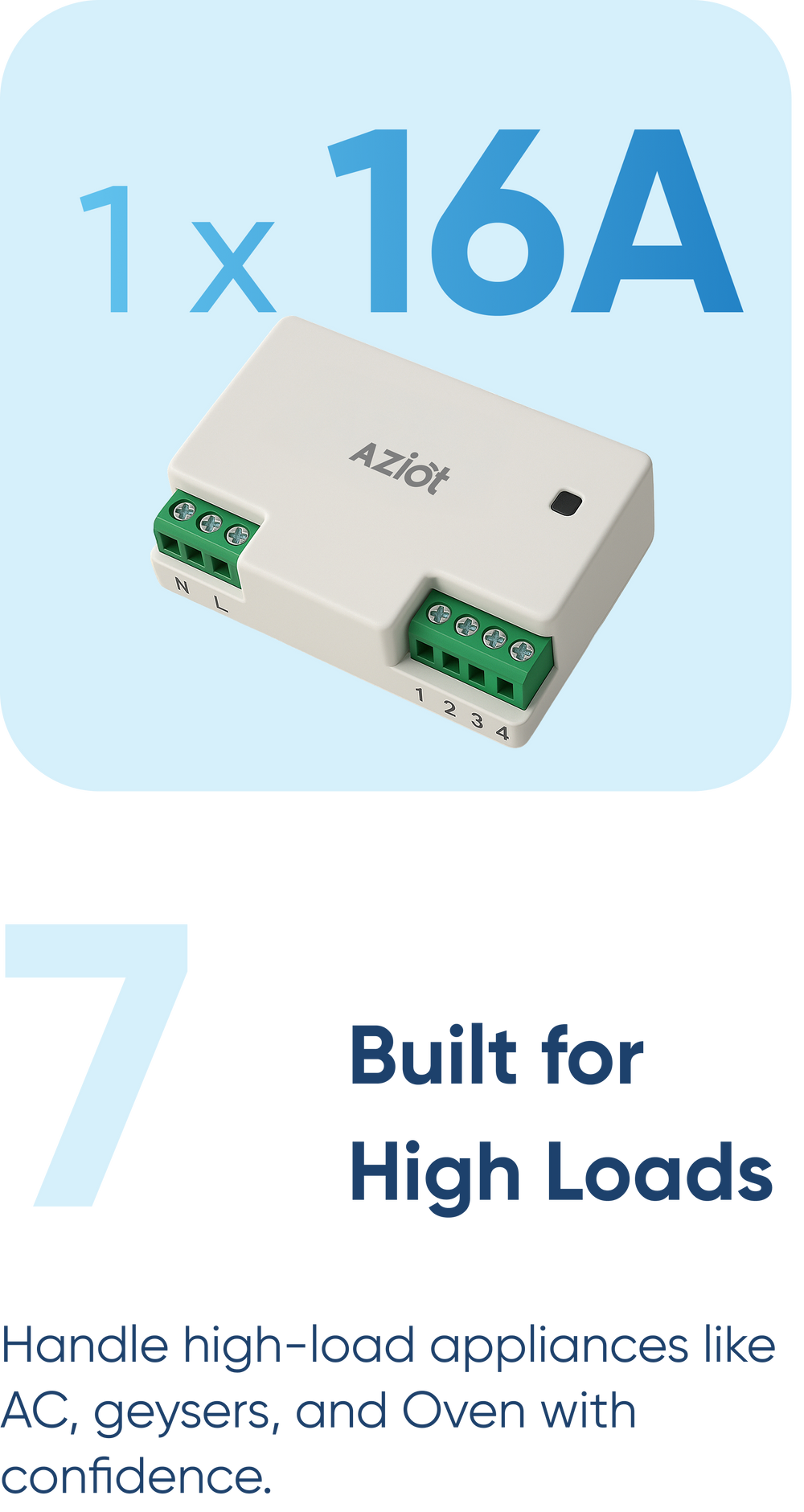

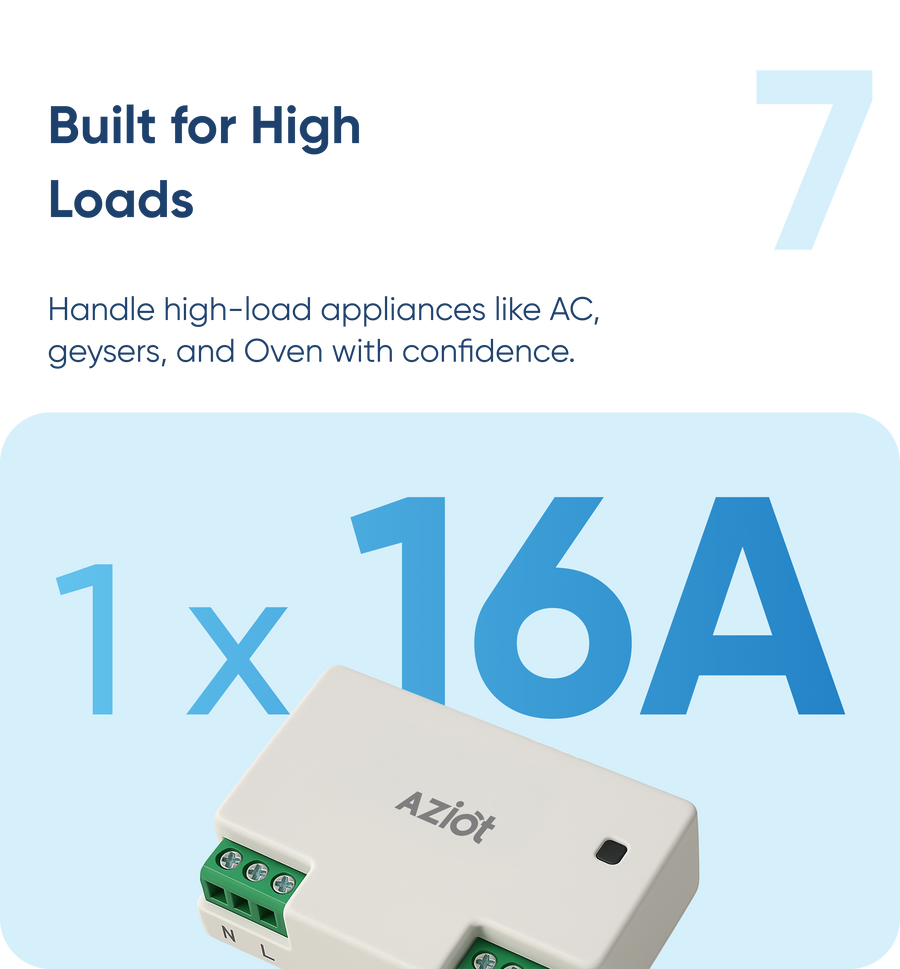

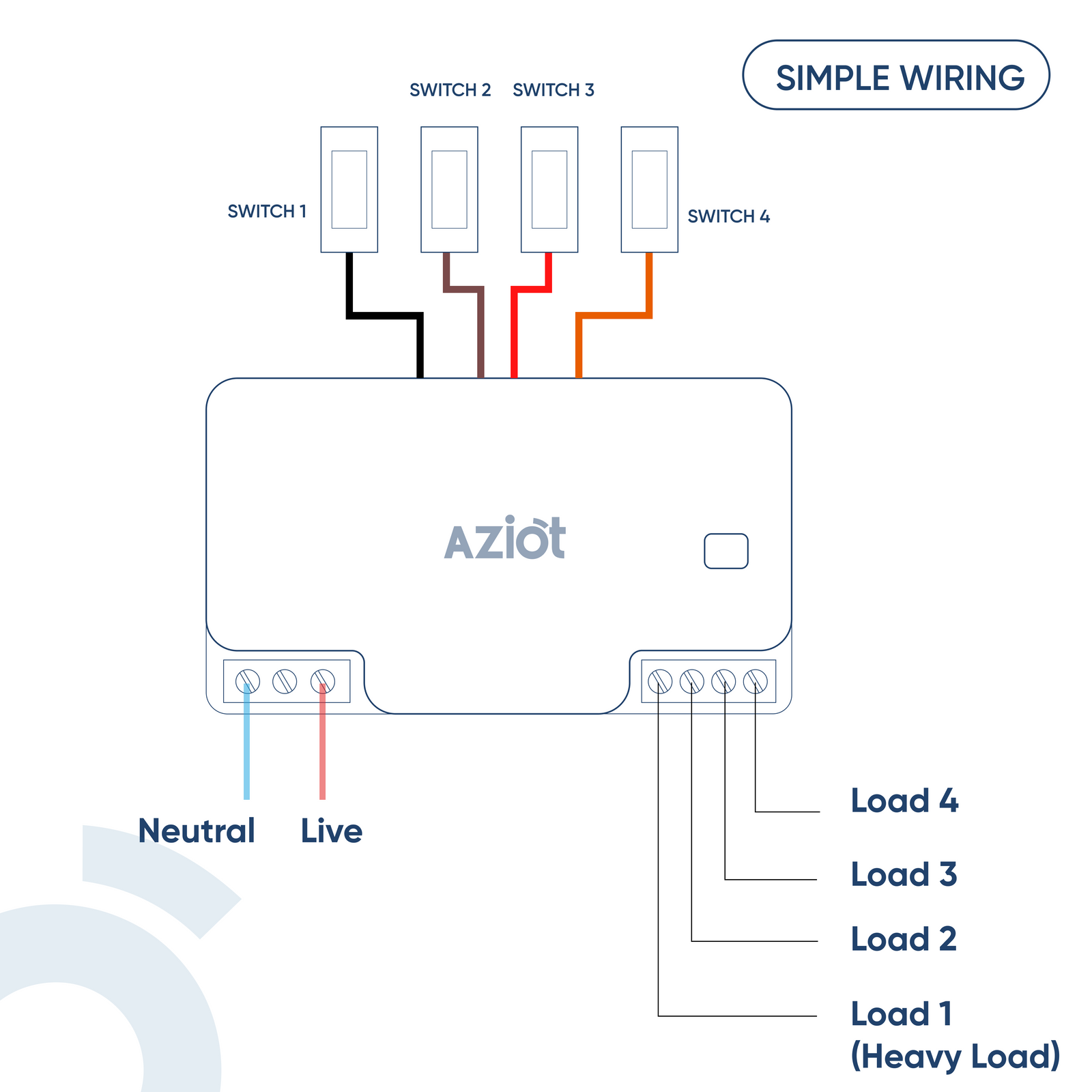

• 4 Node Plus Smart Switch with Dedicated High Load Output: Control 4 appliances independently — Load 1 supports up to 16A (ideal for geysers, ACs upto 1.5 ton), while Loads 2, 3 & 4 support standard 6A appliances like lights
• Dual Connectivity – WiFi + Bluetooth: Seamless control via WiFi or Bluetooth, ensuring uninterrupted performance even when the internet is down
• Voice Assistant Integration: Works perfectly with Alexa and Google Assistant. Control lights and appliances hands-free with simple voice commands
• Timer & Scheduling Function: Set timers and schedules for each node to automate your daily routines—great for energy saving and convenience
• App Control Anytime, Anywhere: Use the Smartlife App to monitor and control all 4 switches remotely—whether you're at home or away
• Made for Indian Homes: Supports Indian voltage standards (90–300V AC) and is proudly Made in India, ensuring long-term durability and service

AC Specifications

Operating Input Power Range

100 VAC–240 VAC ±5%, 47–63 Hz

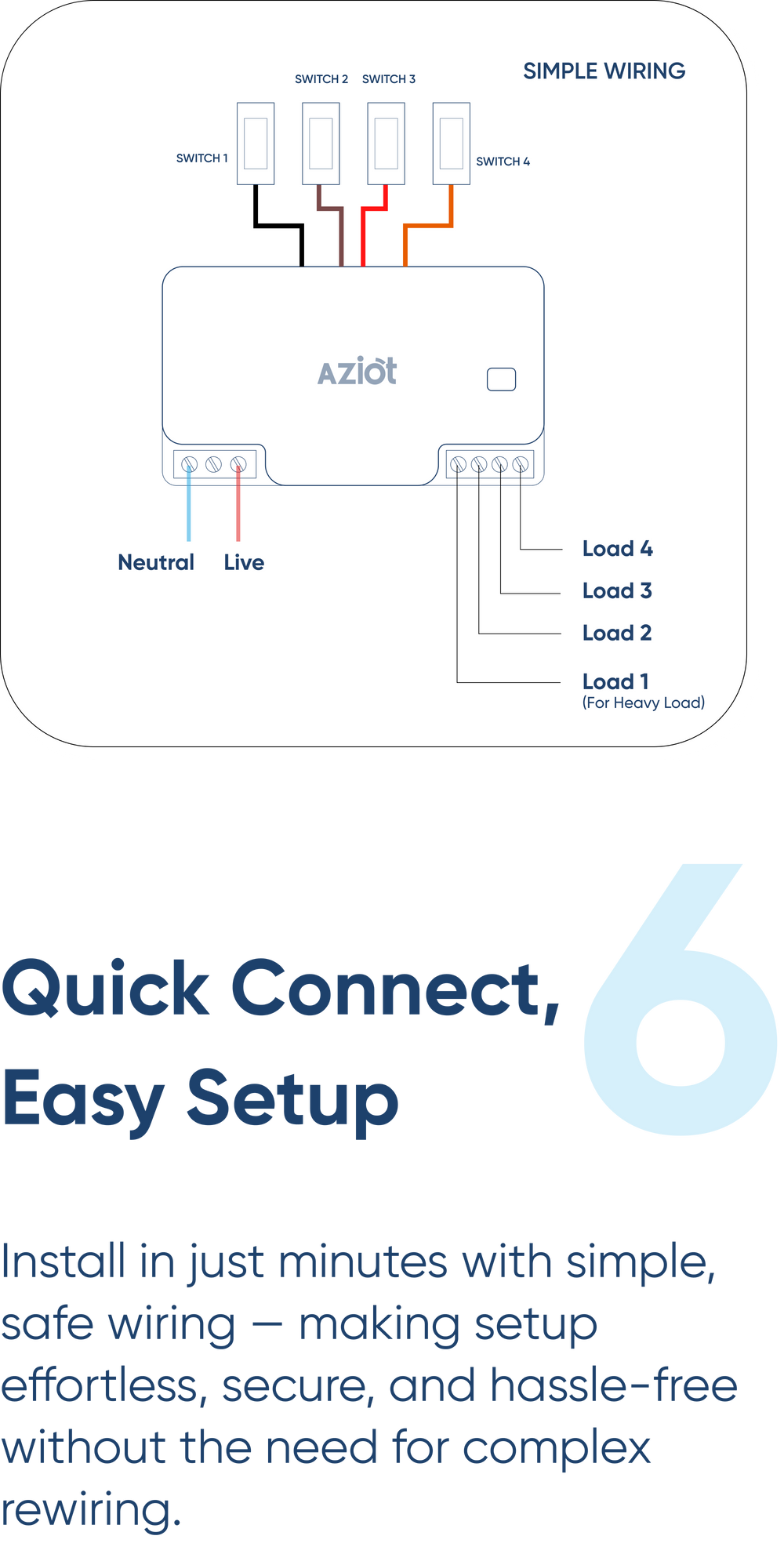

Maximum Load per Node

For Output 1

• Resistive Loads: 16 A
• LED LIGHT: 500W or 5 N
• LED STRIP/PROFILE: 500W
• Fixed Inductive Loads: 1000VA

For Output 2, 3 & 4

• Resistive Loads: 500W/CH
• LED LIGHT: 100W or 5 N/CH (Whichever Is Higher)
• LED STRIP/PROFILE: 100W (Max 1 Number per O/P)
• Fixed Inductive Loads: 300VA

General Specifications

• Power Consumption when loads on: <0.2 W
• Power Consumption when loads off: <1.0 W
• Temperature:
  Operation: 0 °C to +50 °C
  Storage: –20 °C to +70 °C
• Relative Humidity:
  Operating: 5% RH to 95% RH Non-Condensing
  Storage: 5% RH to 95% RH Non-Condensing
• Dimensions: 92 mm × 51 mm × 23 mm
• RF Frequency: 2.4 GHz
