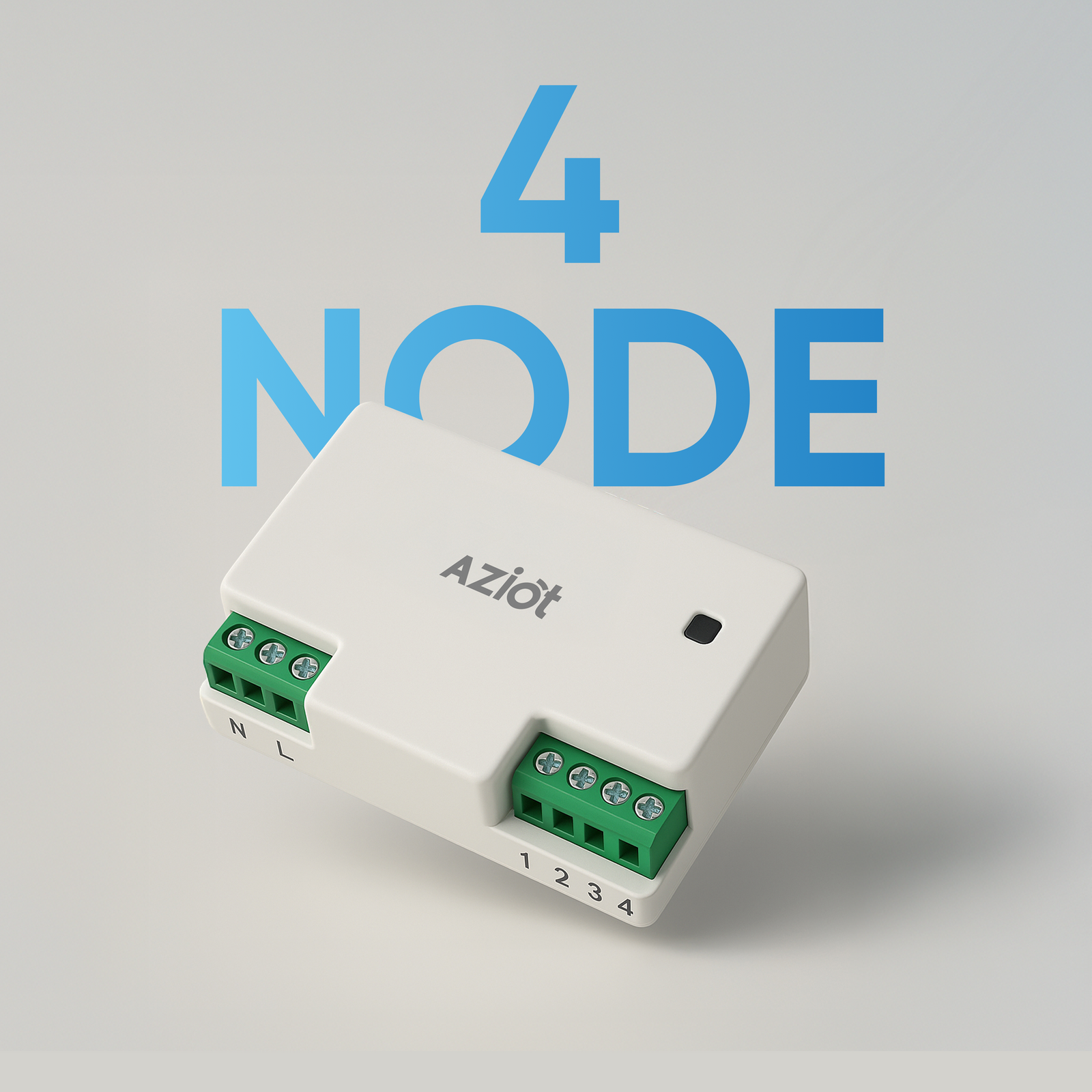

AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled

Works with Alexa

Rs. 999.00 Rs. 6,999.00 86% Off
MRP inclusive of all taxes • EMI available
Overview

Introducing the 4 Node Retrofit Smart Switch, an innovative and convenient way to upgrade your home's lighting system. This retrofit switch is designed to be easily retrofitted into your existing switch boards, allowing you to control your lights with your smart phone via wifi/bluetooth. Made in India with a robust design. The retrofit switch also allows scheduling, and even works without internet. Plus, enjoy great after sales support and 1 year warranty for peace of mind. Upgrade your home with the 4 Node Retrofit Switch today!

Features

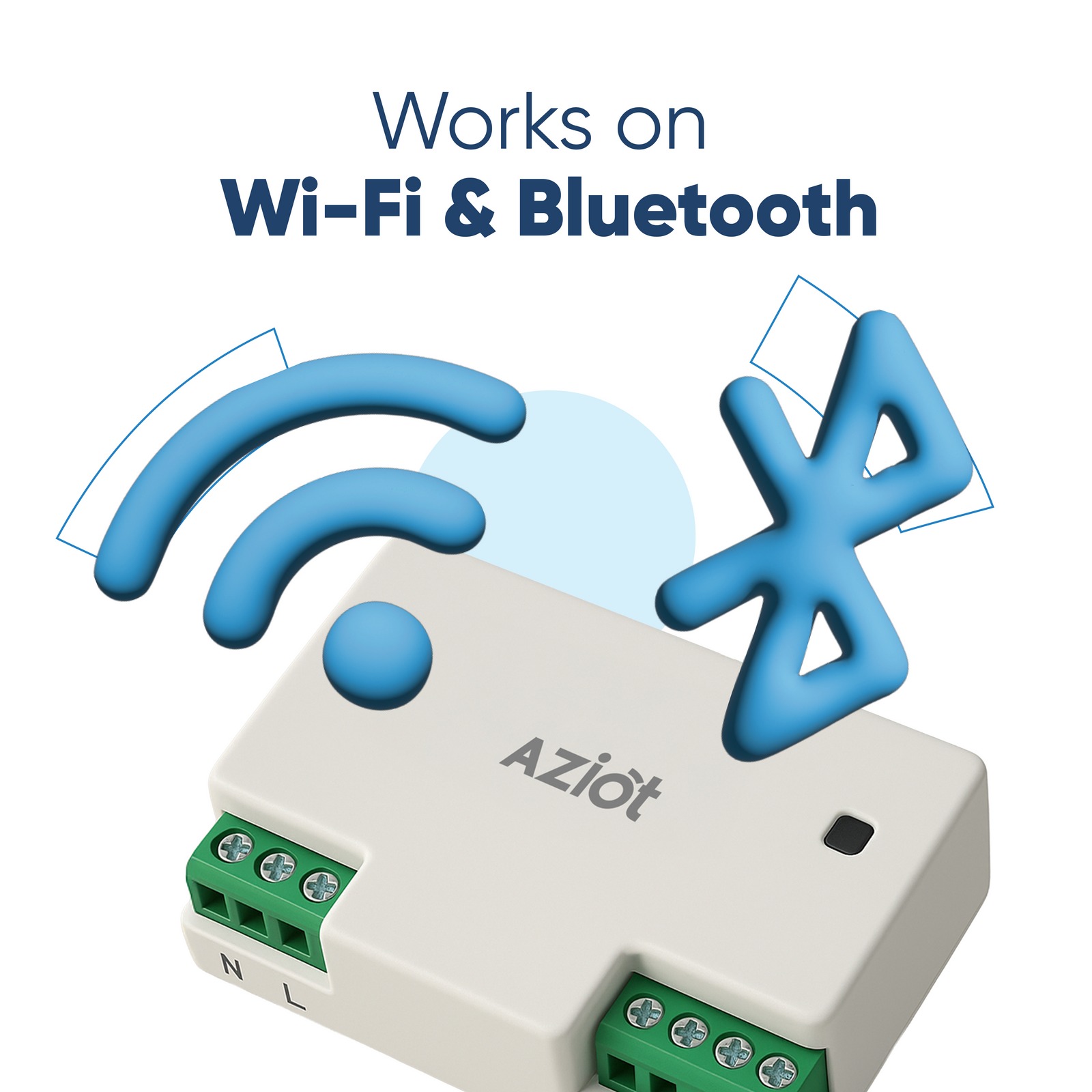

  • Wifi/Bluetooth Communication: Seamless integration with both WiFi and Bluetooth for versatile connectivity.
  • Timer Function: Set timers to automate your devices according to your schedule.
  • Voice Command: Compatible with voice assistants for hands-free control.

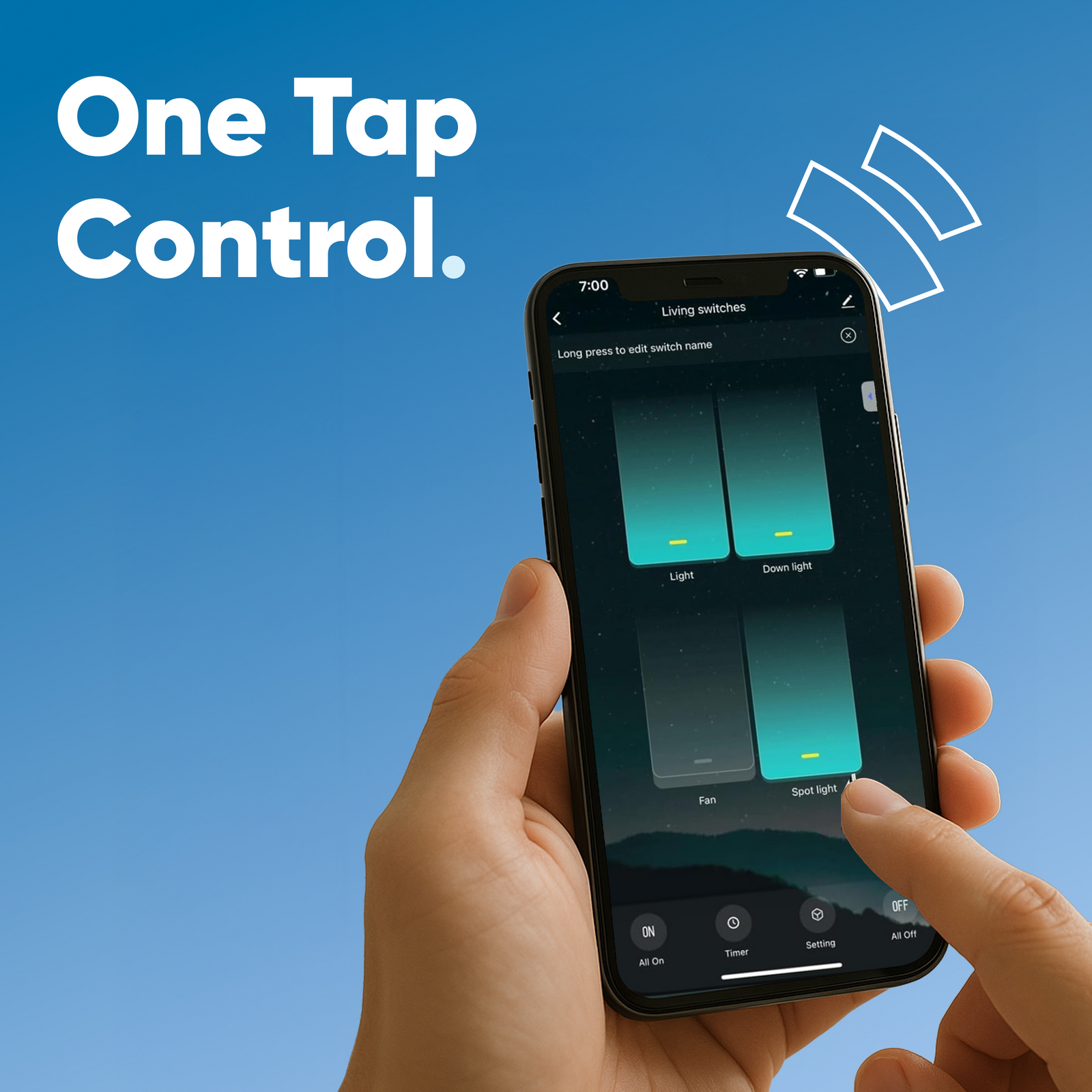

  • User-Friendly App: Manage and control your devices through a dedicated mobile application
  • Energy Efficient: Designed to optimize energy usage, helping you save on electricity bills.
  • Remote Access: Control your devices from anywhere with internet access through the mobile app.
  •  Made in India: Proudly manufactured in India, ensuring high-quality local craftsmanship.
Specifications

AC Specifications
Operating Input Power Range
100 VAC-240 VAC+-5%, 47-63 Hz

Maximum Load per Node
Resistive Loads: 500W / per Node
(Conventional Incandescent and halogen light
sources )

Resistive-Capacitive Loads: 100 W /Per Node
(Fluorescent Tube lamp, CFL, and LED )

LED loads maximum combination is 5 numbers per Node irrespective of wattage.

Fixed Inductive Loads: 300VA

General Specifications
Power Consumption when loads off <0.2 W

Power Consumption when loads on <1.0 W

Temperature Operation 0 C to +50 C.

Storage -20 C to +70 C.

Relative Humidity Operating
5%RH to 95%RH Non-Condensing.

Storage
5%RH to 95%RH Non-Condensing

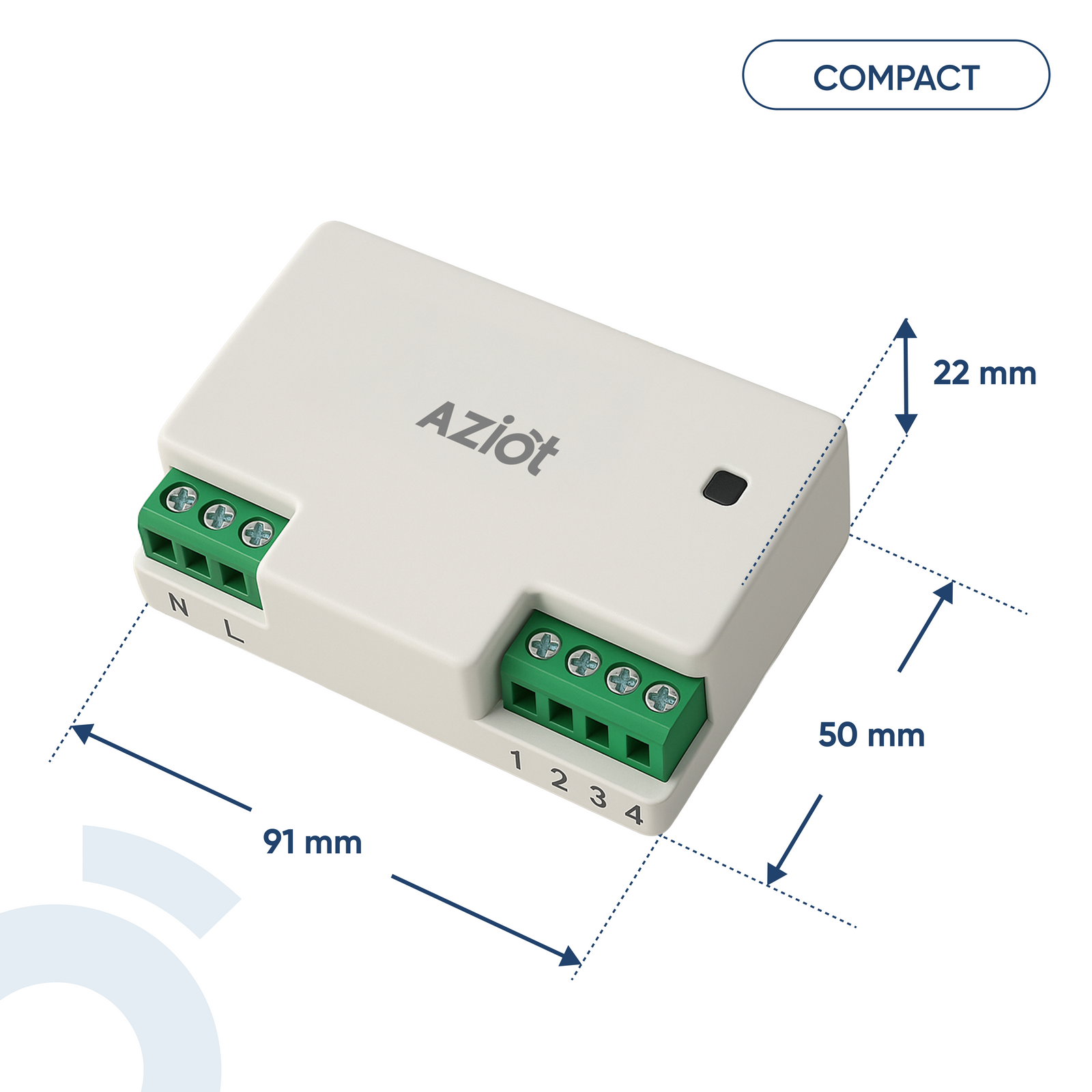

Dimensions 92mm x 51mm x 23mm
RF Frequency 2.4 GHz

What We Solve
Download User Manual
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
AZIOT 4 Node Smart Switch - WiFi/Bluetooth Enabled
A+ Square 1A+ Square 2A+ Square 3

Customer Reviews

Based on 304 reviews
81%
(247)
16%
(48)
1%
(4)
0%
(1)
1%
(4)
100.0
A
Ak
Good product

Its work. Hope it will do for longer time 😃. I buy 2 pc of 4 node.. For my new home.. Product do well. Its compact and easy to installed...

A
Anonymous
very nice 👍👍

good

r
rajesh
Great product working

Great product working well

A
Anonymous
Ease

Ease of installation

G
Goutam Prusty
Digital electric wiring

Superb mast new system 👍 perfect

User picture
123

Real customer stories

4.82 ★ (1439)
Verified

FAQs

How to install the device?

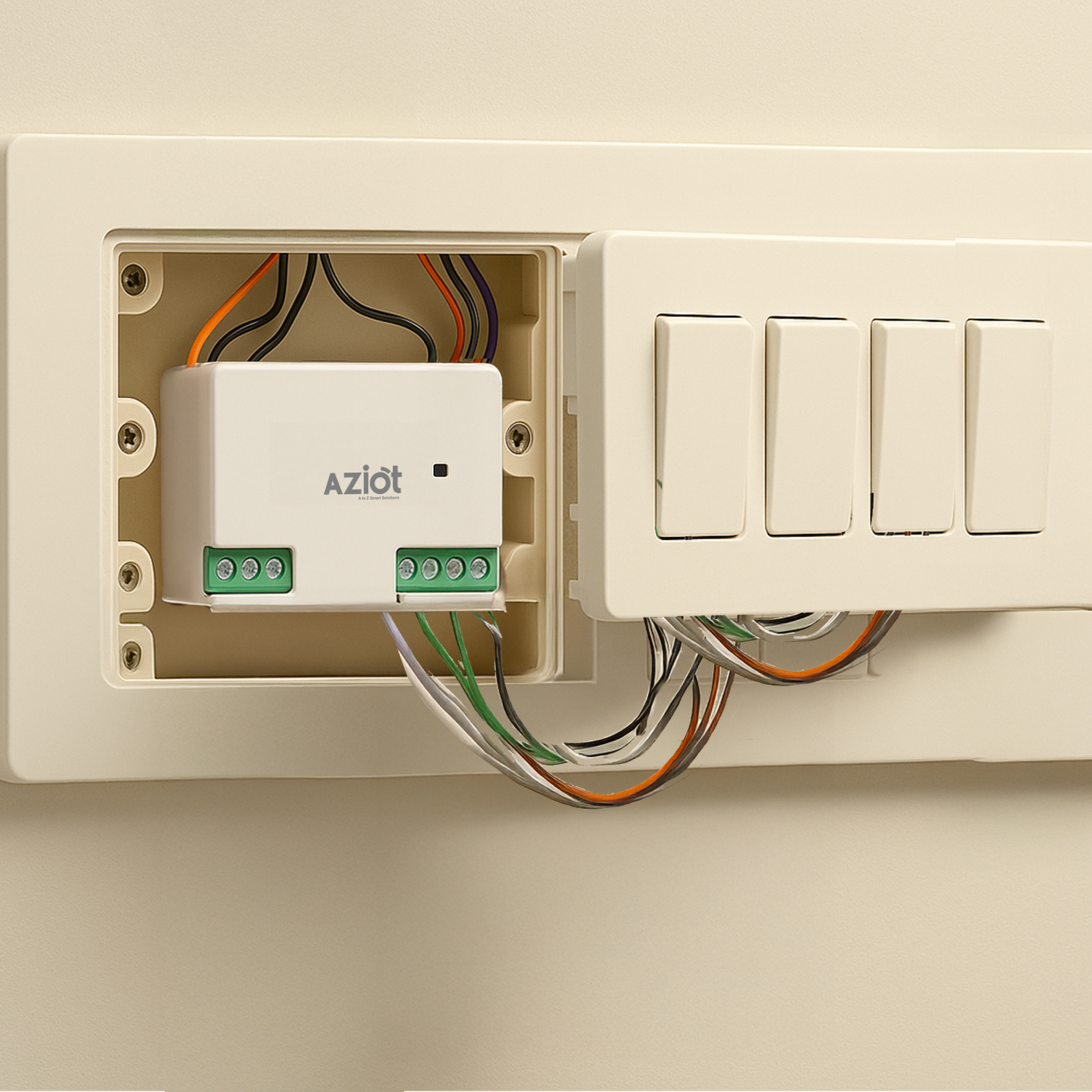

The device easily fits behind your existing switch plate within the gang box. Installation requires basic electrical knowledge and can be done by you or a local electrician. For step-by-step guidance, watch our installation videos on YouTube.
Aziot@youtube: https://www.youtube.com/channel/UCxo8tpr7D2hA_XMOJ6kwBdw

  • 1 Node: Supports up to 16 amps
  • 2 Node: Supports up to 6 amps

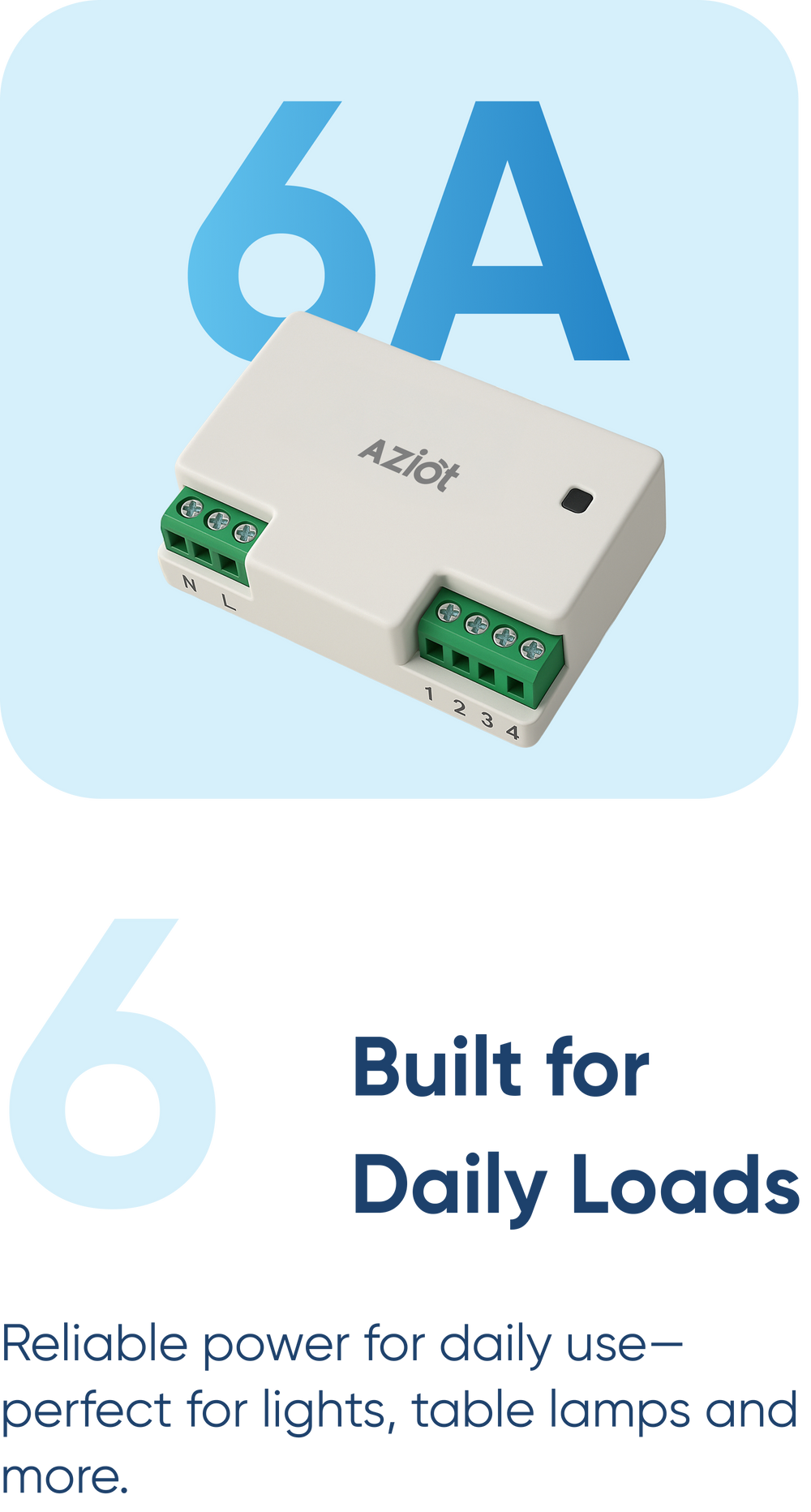

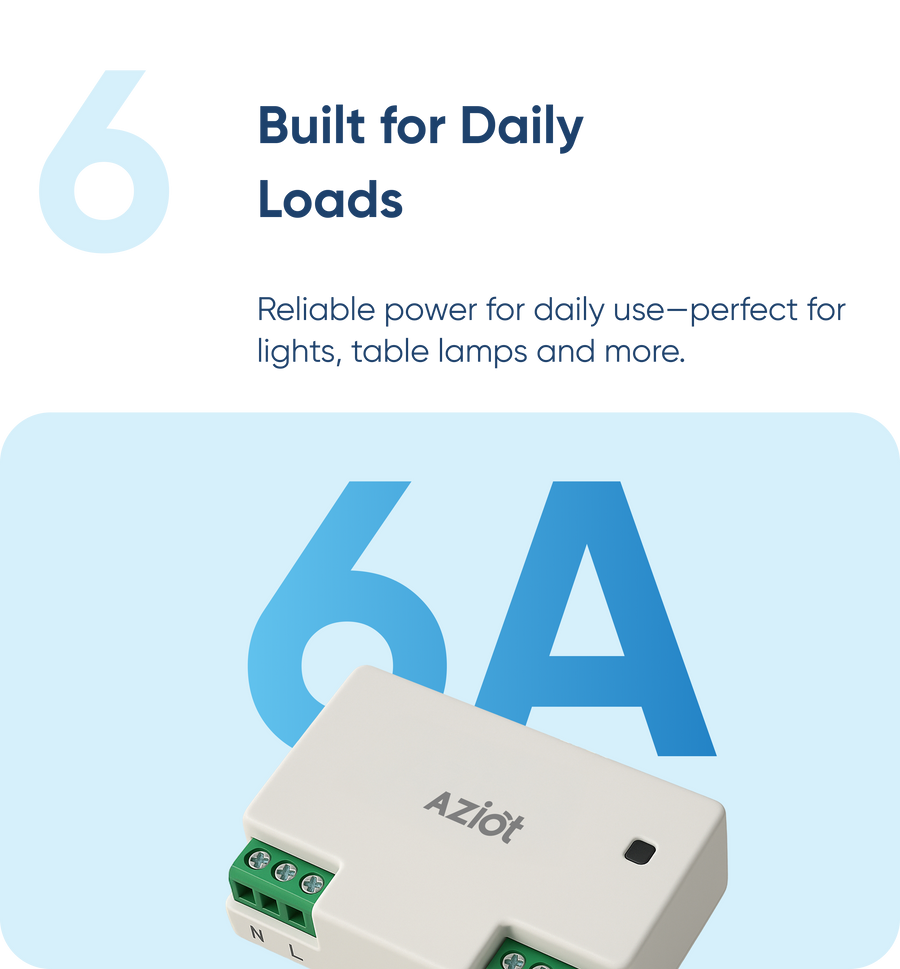

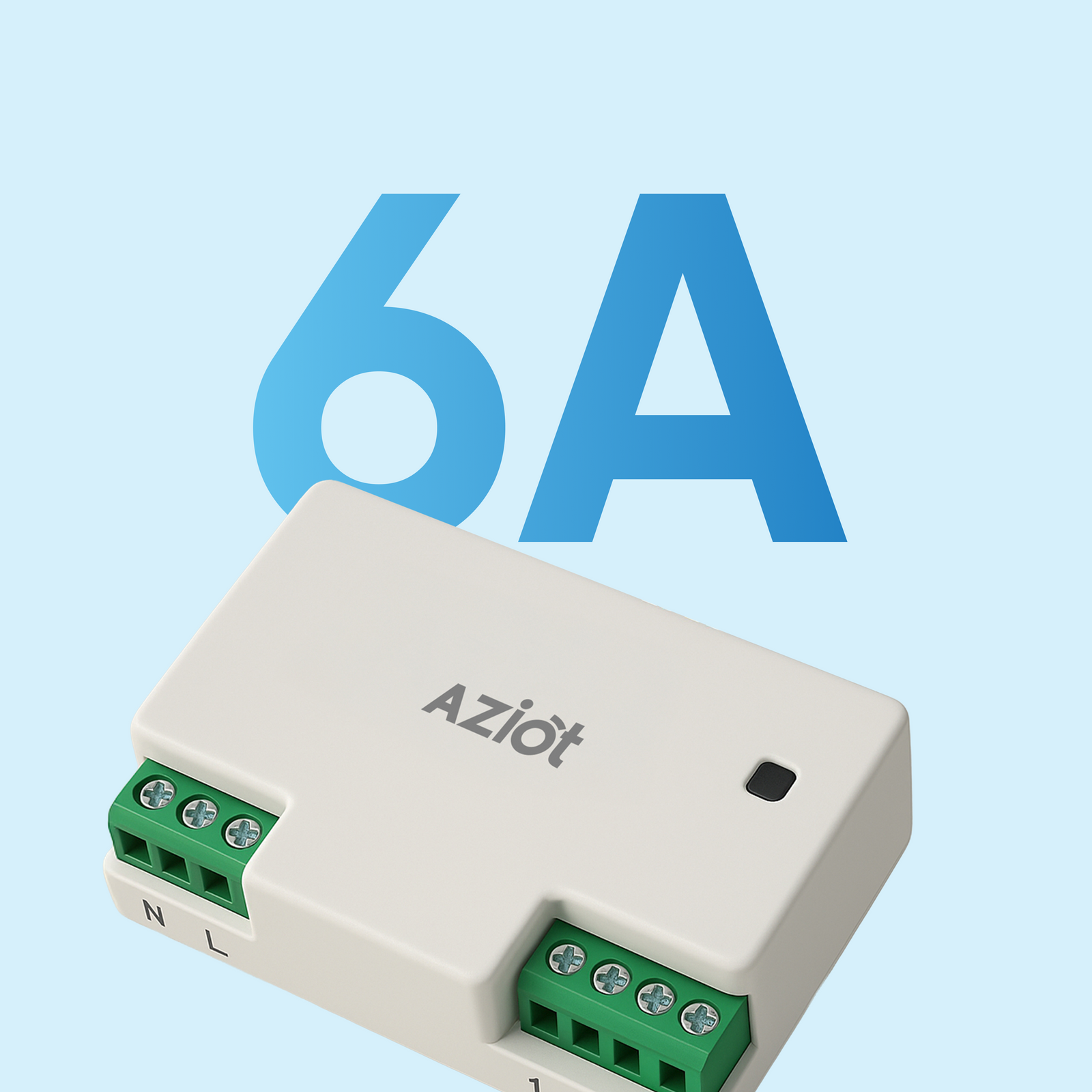

  • 4 Node: Supports up to 6 amps
  • 4 Node Mini: Supports up to 7 amps
  • 3+1 Node: Supports up to 6 amps
  • Circuit Breaker with Metering: Supports up to 16 amps
  • Circuit Breaker without Metering: Supports up to 16 amps

1 Node (16 amps): Suitable for heavy-duty appliances such as ACs, coolers, and similar high-power devices.

Devices with 10 amps load capacity: Ideal for lighting automation and moderate-power appliances.

3+1 Node: Not compatible with BLDC fans.

Circuit Breakers (with and without metering): Designed for heavy-duty appliances requiring up to 16 amps.

If the device appears offline:

  • It could be due to a weak WiFi signal.
  • Restart your router to re-establish the connection.
  • Ensure the device is within range of your WiFi network.

Yes, you can control the device remotely via the smartphone app, no matter where you are in the world, as long as you have an active internet connection.

The 2.4GHz band is a standard WiFi frequency used for most smart devices. Ensure your router supports this band for seamless compatibility with the Touch Modular Switch.

The device is fully compatible with Alexa, Siri, and Google Home for voice control. Follow these steps for configuration:

  1. Open the respective app (Alexa, Google Home or Apple HomeKit).
  2. Add the device using the app’s instructions.
  3. Link your account and complete the setup.
    For more details, refer to our YouTube tutorial.

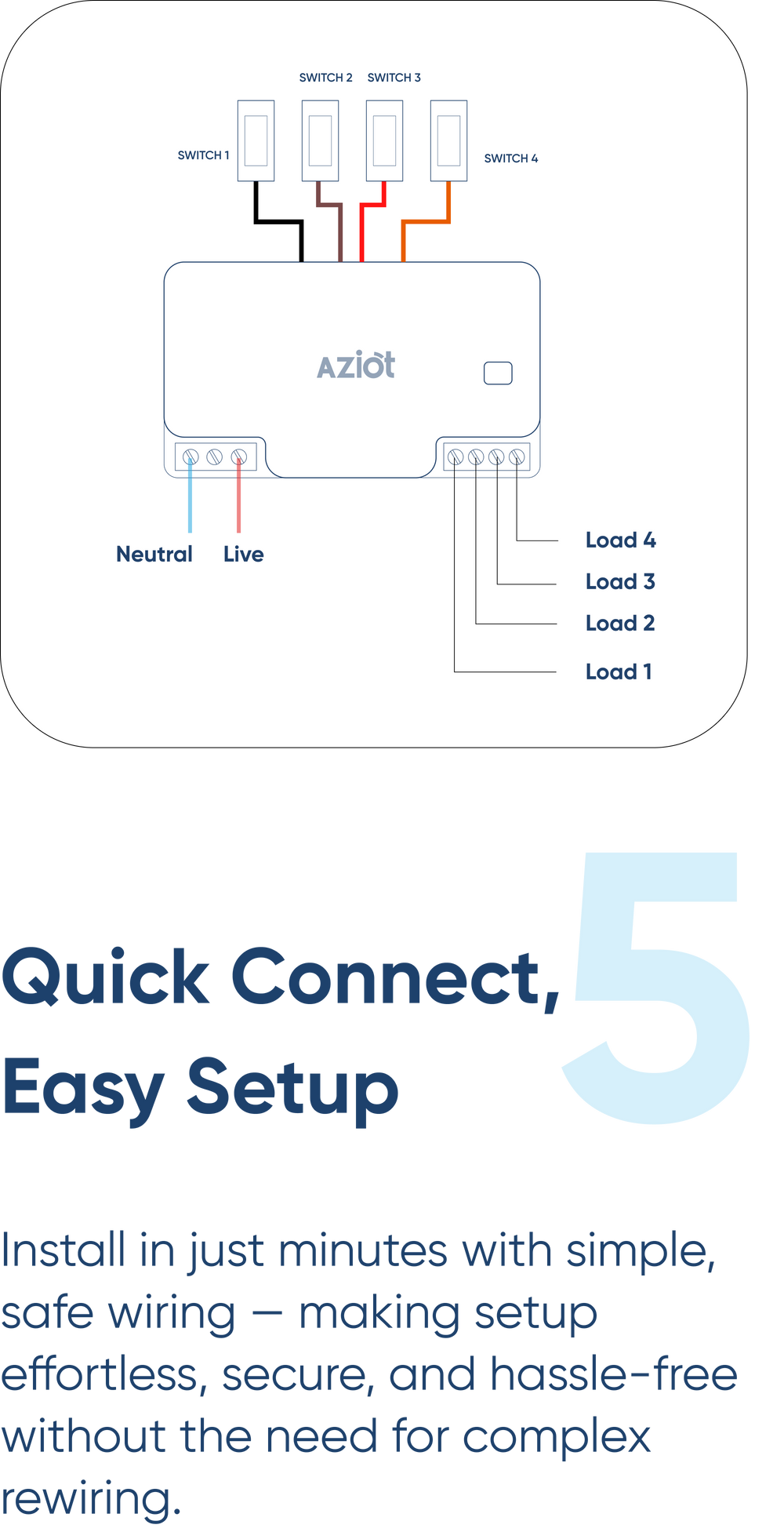

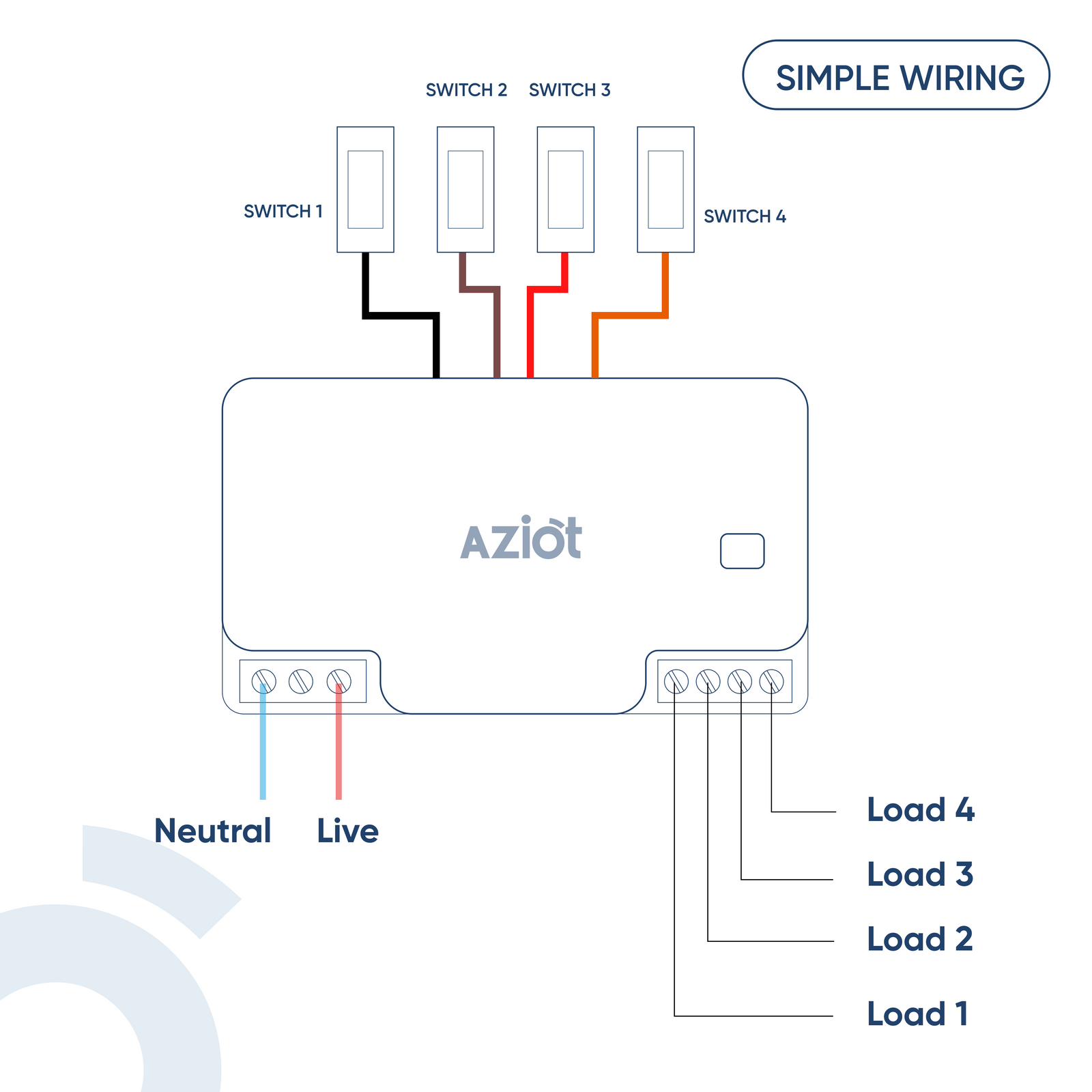

    4 Node

Black wire: Typically the Neutral wire.

Live wire (Input): The main live input wire, connecting to the copper terminal between the toggles, is usually red or brown.

Output Load Wires: These wires connect to the individual toggle switches and carry the current to the load (e.g., lights, fans). They can be red, brown or blue.

For best results and safety, it’s recommended to have an experienced electrician handle the installation, as they will have a better understanding of the wiring process.

To reconfigure:

  1. Restart the main MCB.
  2. Toggle the switch on and off 7–8 times until the red LED starts blinking.
    This indicates the device is ready for reconfiguration.
